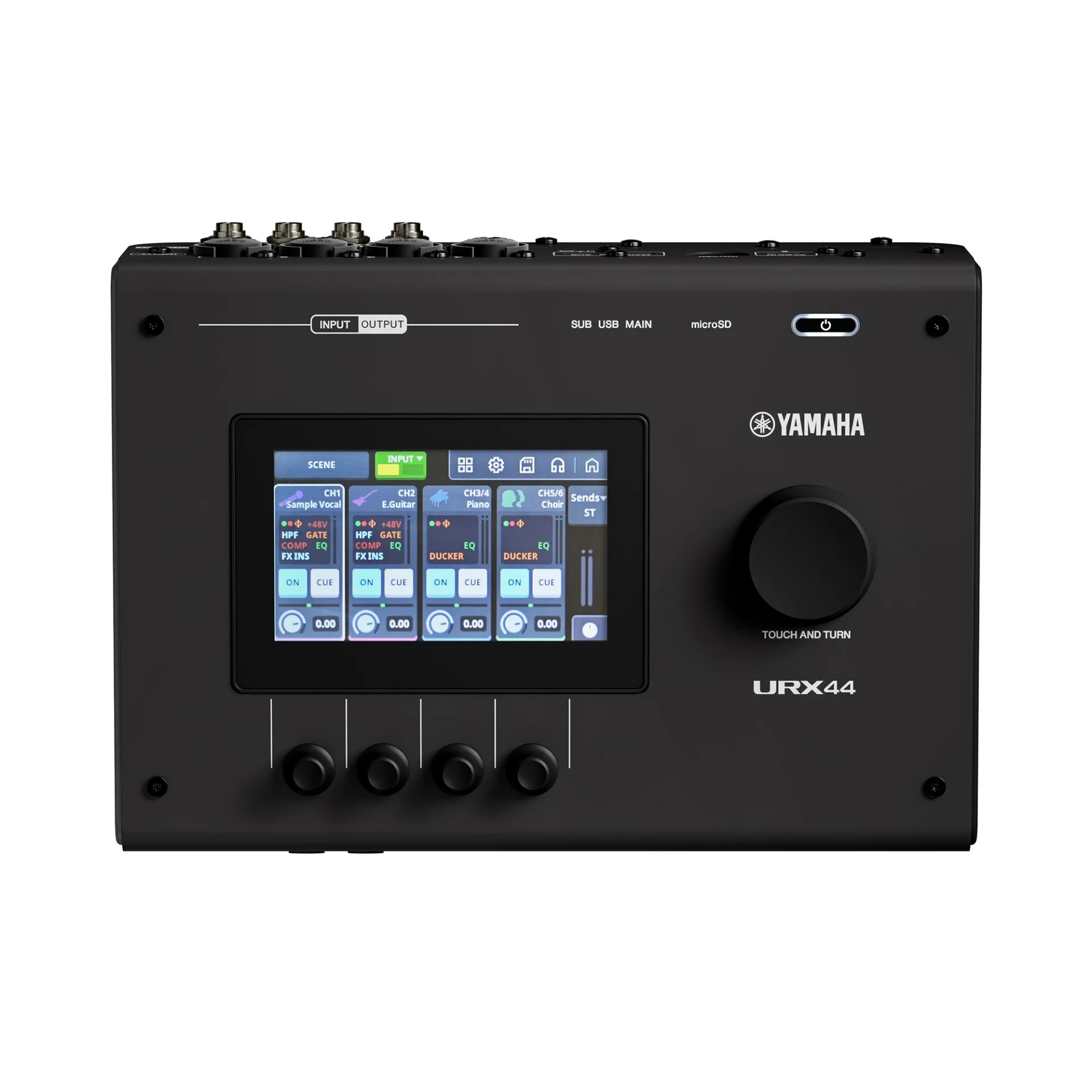

YAMAHA URX44B Audio interface, 6 in / 4 out USB-C 32-bit / 192 kHz

YAMAHA URX44B 6 in / 4 out USB-C Audio interface, 32-bit / 192 kHz

6-in/4-out USB-C Audio Interface with 32-bit/192kHz support, Touch LCD panel GUI with physical controller, DSP-powered mixing/effects for a seamless workflow.

• USB Type-C audio interface with 32-bit / 192 kHz support, Multi-Stream Audio Driver, dual USB (MAIN/SUB)
• 125 dB dynamic range (MAIN output - Balanced)
• 4 URX mic preamps with 78 dB gain range and +48 V phantom power
• 4 Mic/Line (2 Combo/3.5 mm headset mic, 2 Combo with Hi-Z),1 AUX input (3.5 mm Phone)
• 4 TRS line outputs, 2 headphones (1 stereo phone/3.5 mm headset, 1 stereo phone)
• Input mixing channels: 4 mono + 4 stereo + 2 FX
• Busses: 2 MIX (stereo) + 1 STEREO
• A 4.3-inch touchscreen with five control knobs
• Assistive features: Auto Gain, Clip Safe, Simple / Standard mode, Scene Recall
• Built-in DSP processor for professional sound and latency-free monitoring
• microSD card recording up to 16 tracks / playback 2 tracks
• Included accessories: Start Guide, Safety Guide, Steinberg Software License Card x2 (Cubase AI + WaveLab Cast, Steinberg Plus),Basic FX Suite license card, USB-C to USB-C Cable (USB 2.0, 1.5m)



Teknik Özellikleri			URX44	URX44V	URX44C
General specifications	I/O Connectors	Analog Input	4 Combo (1 Mic/Line/3.5 mm headset mic, 1 Mic/Line, 2 Mic/Line/Hi-Z) + 1 AUX (3.5 mm Phone)	4 Combo (1 Mic/Line/3.5 mm headset mic, 1 Mic/Line, 2 Mic/Line/Hi-Z) + 1 AUX (3.5 mm Phone)	4 Combo inputs (2 Mic/Hi-Z, 2 Mic/Line) + 2 TRS inputs
		Analog Output	4 TRS	4 TRS	4 TRS
		USB TO HOST	2 (USB Type-C, MAIN: 32-bit/SUB: 16-bit)	2 (USB Type-C, MAIN: 32-bit/SUB: 16-bit)	1 (USB Type-C, 32-bit)
		Phones	2 TRS, 1 mini headset phones (100 mW+100 mW @40 Ohm) *The first TRS Phones port and the 3.5 mm mini port cannot be used simultaneously.	2 TRS, 1 mini headset phones (100 mW+100 mW @40 Ohm) *The first TRS Phones port and the 3.5 mm mini port cannot be used simultaneously.	2 TRS (100 mW+100 mW @40 Ohm)
		DC	2 (Type-C USB MAIN bus power or Type-C USB DC IN)	1 (Barrel type, DC power IN)	2 (Type-C USB bus power or Barrel type DC IN)
		microSD Card Slot	1	1	-
		HDMI	-	1 IN / 1 THRU (Audio/Video input/capture/pass-through)	-
		MIDI	-	-	1 IN / 1 OUT
	User Interface		4.3-inch touch screen, 5 x rotary encoder (4 x screen knob, 1 x "TOUCH AND TURN")	4.3-inch touch screen, 5 x rotary encoder (4 x screen knob, 1 x "TOUCH AND TURN")	Dedicated software "dspMixFx", Input Gain, +48V phantom power, Mix balance, Main Volume, Headphones Volume
	Recording & Playback	USB	18-track recording, 18-track playback	18-track recording, 18-track playback	6-track recording, 4-track playback
		USB (SUB)	2-track recording, 2-track playback	2-track recording, 2-track playback	-
		microSD Card	Up to 16-track recording, 2-track playback	Up to 16-track recording, 2-track playback	-
	Sampling frequency rate		192 kHz - 44.1 kHz	192 kHz - 44.1 kHz	192 kHz - 44.1 kHz
	Frequency response		+0.0/−0.2 dB (20 Hz – 20 kHz)	+0.0/−0.2 dB (20 Hz – 20 kHz)	+0.0/-0.4 dB (20 Hz to 22 kHz)
	Dynamic range		[MIC/LINE/Hi-Z] 115 dB, [MAIN OUTPUT] 125 dB	[MIC/LINE/Hi-Z] 115 dB, [MAIN OUTPUT] 125 dB	[MIC/LINE/Hi-Z] 102 dB, [LINE IN 5-6] 106 dB, [MAIN OUTPUT] 105 dB
	Total harmonic distortion		[MIC/LINE/Hi-Z] 0.0008 %, 1 kHz, 20 kHz LPF; [MAIN OUTPUT] 0.00036%, 1 kHz, 20 kHz LPF	[MIC/LINE/Hi-Z] 0.0008 %, 1 kHz, 20 kHz LPF; [MAIN OUTPUT] 0.00036%, 1 kHz, 20 kHz LPF	[MIC/LINE/Hi-Z] 0.003 % at 1 kHz, 22 Hz/22 kHz BPF; [LINE IN 5-6] 0.002 % at 1 kHz, 22 Hz/22 kHz BPF; [MAIN OUTPUT] 0.002 % at 1 kHz, 22 Hz/22 kHz BPF
	Hum & noise level	Equivalent input noise	-128 dBu, A-Weighted	-128 dBu, A-Weighted	-
	Gain range		78 dB	78 dB	54 dB
	Power requirements		DC5 V/ 3.0 A	DC16 V/2.4 A, PA-300C AC power adapter (100 V-240 V, 50 Hz/60 Hz)	DC12 V/1.5 A
	Power consumption		15 W (Off mode power: 0.1 W)	38.4 W (Off mode power: 0.1 W)	7.5 W
	Auto power off		2 minutes, 5 minutes, 10 minutes, 15 minutes, 20 minutes or Never (factory default)	2 minutes, 5 minutes, 10 minutes, 15 minutes, 20 minutes (factory default) or Never	-
	Dimensions	W	245 mm (9.6")	245 mm (9.6")	252 mm (9.9")
		H	78 mm (3.1")	78 mm (3.1")	47 mm (1.9")
		D	182 mm (7.2")	182 mm (7.2")	159 mm (6.3")
	Net weight		1.9 kg (4.2 lb)	2.0 kg (4.4 lb)	1.5 kg (3.3 lb)
	Included Accessories		Start Guide, Safety Guide, Steinberg Software License Card x2 (Cubase AI + WaveLab Cast, Steinberg Plus),Basic FX Suite license card, USB-C to USB-C Cable (USB 2.0, 1.5 m)	Start Guide, Safety Guide, Steinberg Software License Card x2 (Cubase AI + WaveLab Cast, Steinberg Plus),Basic FX Suite license card, USB-C to USB-C Cable (USB 3.2, 1 m),AC Power Adapter (PA-300 including power cord),Ferrite Core	Stetup Guide, Cubase AI License Card, Basic FX Suite License Card, Steinberg Plus License Card, USB Cable (3.1 Gen1, Type-C to Type-A, 1.0 m),AC Adaptor (PA-150B)
	Operating temperature		0 to + 40 ℃	0 to + 40 ℃	0 to + 40 ℃
	Storage temperature		-20 to + 60 ℃	-20 to + 60 ℃	-
Outline	Mixing Capacity	Input Channels	4 mono + 4 stereo + 2 FX	4 mono + 4 stereo + 2 FX	6 Mono + 3 Stereo loopback + 1 FX
		Mix Buses	2 (stereo)	2 (stereo)	3 (2 MIX + 1 Streaming Mix)
		Stereo Buses	1	1	2
		FX Buses	2	2	1
		Cue Buses	1	1	-
	On-board processors	DSP	Gate, Compressor, EQ, Sweet Spot Morphing Channel Strip (Comp & EQ),Guitar Amp Classics (Amp Simulator),Pitch Fix (Voice Changer),Ducker, Multi-Band Compressor, Compander, Delay, REV-X (Reverb)	Gate, Compressor, EQ, Sweet Spot Morphing Channel Strip (Comp & EQ),Guitar Amp Classics (Amp Simulator),Pitch Fix (Voice Changer),Ducker, Multi-Band Compressor, Compander, Delay, REV-X (Reverb)	Gate, Compressor, Sweet Spot Morphing Channel Strip (Comp & EQ),Guitar Amp Classics (Amp Simulator),Pitch Fix (Voice Changer),Ducker, Multi-Band Compressor, Compander, Delay, REV-X (Reverb)
