Woxcon CE-CVAD HDMI 2.0 Booster/Audio de-embedder 4K@60 4:4:4

18G HDMI 2.0 Repeater w/ Audio Extraction De-Embedder

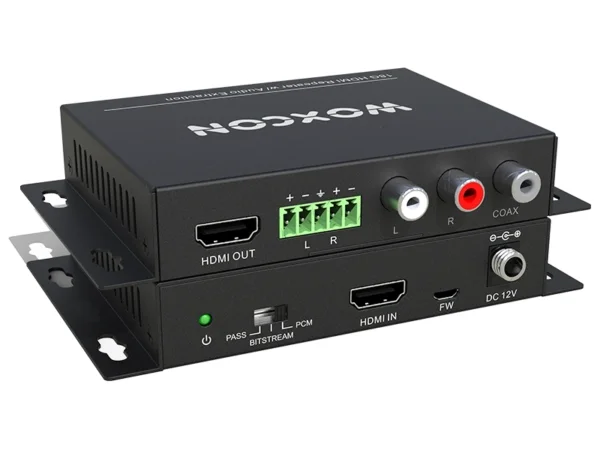

The CE-CVAD is a small-size HDMI2.0 audio de-embedder with 1 HDMI input, 1 HDMI output, and three kinds of audio outputs. It is designed to extract audio from 4K HDMI signal via stereo balanced L/R audio, analog RCA, and coaxial digital audio output ports.

It supports 4K@60Hz/4:4:4 HDR, EDID & CEC pass-through, and the transmission rate is up to 18Gbps. Moreover, there are three audio modes can be chosen in order to be compatible with various audio processing device.



• Supports stereo balanced L/R audio, analog RCA, and coaxial digital audio output ports.

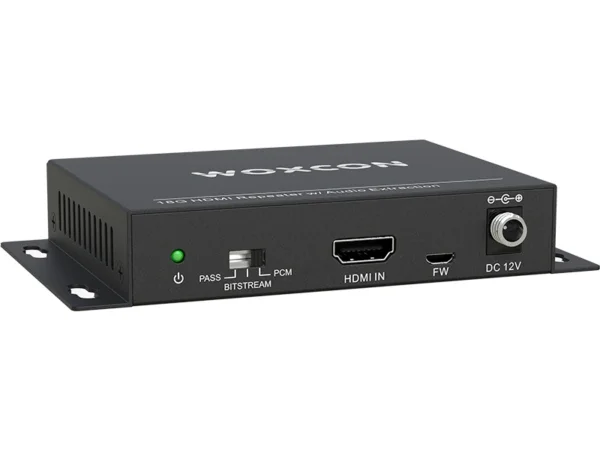

• Supports three audio modes：PASS, BITSTREAM, and PCM.
• HDMI input supports HDCP2.2, and the output supports HDCP1.4.
• Supports HDMI2.0 4K@60Hz/4:4:4 HDR, EDID & CEC pass-through.
• The transmission rate is up to 18Gbps.
• Coax digital audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH
• Supports HDMI High Bit Rate(HBR) audio pass through



Video
Input	(1) HDMI
Input connector	(1) 19-pin type-A female HDMI 2.0, HDCP2.2
Output	(1) HDMI
Output connector	(1) 19-pin type-A female HDMI 2.0, HDCP1.4
Audio

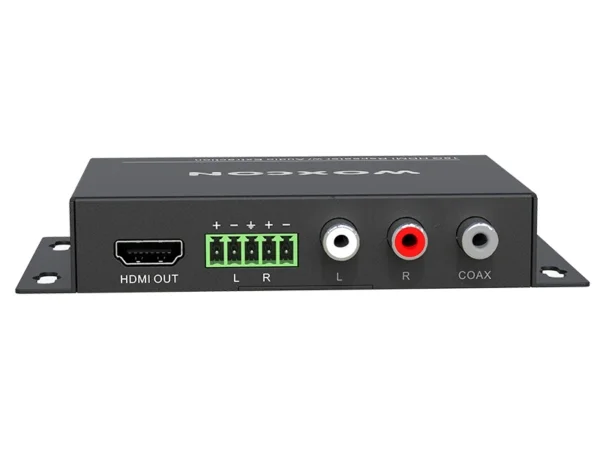

Output	(1) Stereo balanced audio L/R; (1) Analog audio L+R ; (1) COAX
Output connector	(1) 5-Pin phoenix connector; (1) RCA ; (1) Coaxial audio connector
Stereo analog audio format	PCM
Coax digital audio format	LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH
General
Max data rate	18Gbit/s
Max resolution	4Kx2K@60Hz 4:4:4
Work Temperature	-10~ 55℃
Reference humidity	10% ~ 90%
Power consumption	3 W (Max)
Power supply	Input: 100VAC~240VAC, 50/60Hz; Output: 12VDC 1A
Dimension (W*H*D)	129mm x 21.5 mm x77 mm
Net weight	244g
