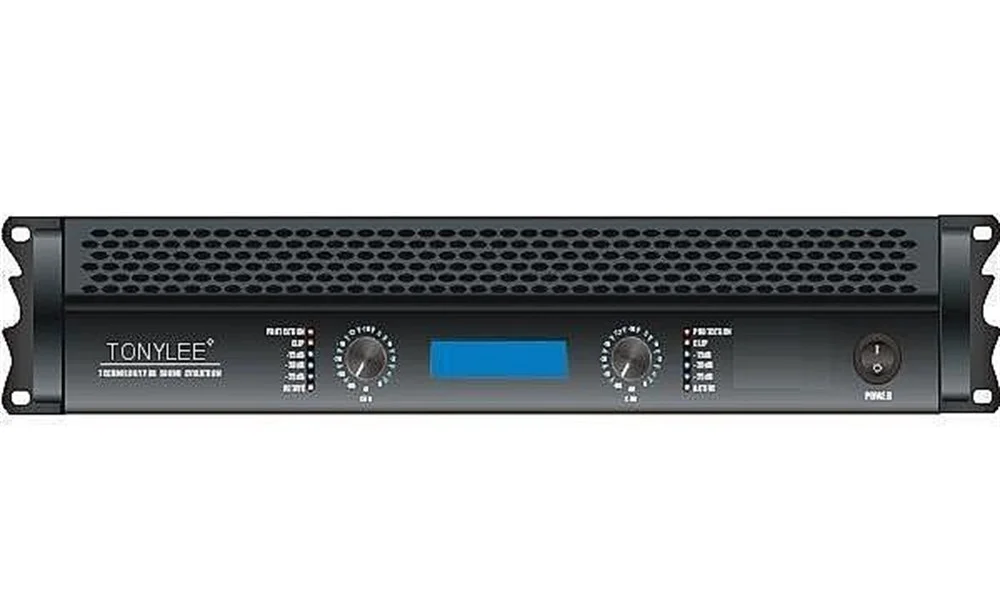

Tonylee VP7.0 2x1100W / 4-ohm, Power Amplifikatör

Name: Tonylee VP7.0 2x1100W / 4-ohm, Power Amplifikatör
Brand: Tonylee
SKU: Tonylee VP7.0
Price: 96030 TRY
Availability: OutOfStock

SKU: Tonylee VP7.0

₺96.030,00

KDV dahil · %20 KDV

Stoğumuzda yok

Şimdi Satın Al

Gelince haber ver

Bu ürün yeniden stoğa girdiğinde e-posta ile bilgilendirilirsiniz.

Paylaş:

Açıklama

Specifications		VP2.6	VP3.8	VP5.2	VP7.0	VP9.0	VP13.0
Rated Power (1KHz,THD+N=0.1?)	8ohm stereo	2×300W	2×400W	2×550W	2×700W	2×1000W	2×1300W
	4ohm stereo	2×450W	2×600W	2×820W	2×1100W	2×1500W	2×2000W
	2ohm stereo	2×600W	2×800W	2×1100W	2×1400W	2×1950W	2×2200W
	8ohm bridge	950W	1200W	1600W	2100W	3000W	4000W
	4ohm bridge	1200W	1600W	2100W	2800W	3900W	4400W
Crossover	High pass	/			120Hz
	Low pass	/			120Hz
Protection	DC protect	?
	Short circuit protect	?
	High temperature protect	?
	Current inrush protect	?
	Input over load protect (Limiter)	?
	Output over load protect	?
	Soft startup protect	?
Frequency response ( 1W 8ohm stereo)		20Hz-20KHz (±0.3dB)
Sensitivity (8ohm stereo&1KHz)		1.0V
Mode		Stereo / Parallel / Bridge
Fan speed regulation		Two-speed
Connectors (Each channel)	Input connectors	female Neutrik XLR + male Neutrik XLR
	Output connectors	Binding-post + Neutrik speakon				3xSpeakon (Neutrik)	3xSpeakon (Neutrik)
Filter capability		6800uf/50V×12	10000uf/50V×12	10000uf/63V×12	10000uf/80V×8	10000uf/100V×12	10000uf/100V×12
Input impedance	Balanced	20K
	Unbalanced	10K
Crosstalk (20Hz~20KHz Rated Power 8ohm )		?60dB
S/N ratio (8 ohm, Rated Power 8ohm)		?100dB
Damping factor (1KHz, 8ohm)		?300			?600	?700	?700
Intermodulation distortion		?0.5%
Total harmonic distortion(20Hz~20KHz Rated Power, 8 ohm)		?0.5%
Phase response (1W, 8ohm 20Hz~20KHz)		Within ±30°
Slew rate		?25V/us
Output Circuitry		Class AB			Class H+
Phase response(1W&8ohm 20Hz~20KHz)		±30°					±10°
Dimension(W x H x D)		482×88×438mm			482×88×453mm	482×132×483mm	482×132×483mm
Carton dimension(W x H x D)		500×141×600mm			570×155×625mm	570×195×625mm	570×195×625mm
Net Weight(Kg)		12	15	19	21	32
