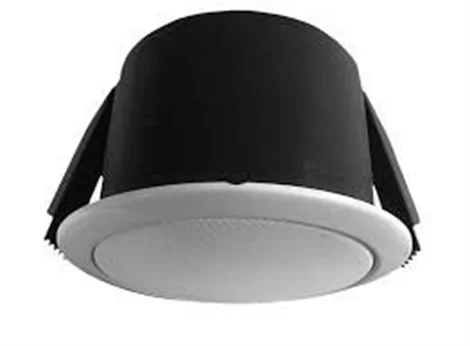

TOA PC-1867 FC 5" Firedome Tavan Hoparlörü, 6W EN5424

Name: TOA PC-1867 FC 5" Firedome Tavan Hoparlörü, 6W EN5424
Brand: TOA
SKU: TOA PC-1867 FC

SKU: TOA PC-1867 FC

Fiyatı görmek için giriş yapın

Gelince haber ver

Bu ürün yeniden stoğa girdiğinde e-posta ile bilgilendirilirsiniz.

Paylaş:

Açıklama

Toa PC-1867FC EU 5" Firedome Tavan Hoparlörü, 6Watt EN-5424

Rated Noise Power	6 W (100 V Line), 3 W (70 V Line)
Rated Impedance	100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W) 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W)
Sensitivity	90 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise) 79 dB (1 W, 4 m) (100 Hz - 10 kHz, pink noise) according to EN 54-24 91 dB (1 W, 1 m) (100 Hz - 10 kHz, pink noise) converted based on EN 54-24
Maximum Sound Pressure Level	85 dB (6 W, 4 m) (100 Hz - 10 kHz, pink noise) according to EN 54-24 97 dB (6 W, 1 m) (100 Hz - 10 kHz, pink noise) converted based on EN 54-24

Frequency Response	160 Hz - 13 kHz

Coverage Angle(-6dB)	500 Hz: 186゜, 1 kHz: 178゜, 2 kHz: 148゜, 4 kHz: 76゜, according to EN 54-24
Environmental Type	A (indoor applications) according to EN 54-24
Speaker Component	12 cm (5") cone-type
Dimensions for Fixing Hole	±3 "±0.12 φ156 (mounting hole) × 30 (maximum ceiling thickness) mm (φ6.14" × 1.18")
Speaker Mounting Method	Spring catch
Applicable Cable	Solid wire: φ1.0 - φ3.0 mm (AWG18-9)
Connection	Screw connector (steatite terminal) bridging
Finish	Baffle: Aluminum, white (RAL 9016 equivalent), paint Grille: Aluminum net, white (RAL 9016 equivalent), paint Dome mounting bracket: Steel plate, trivalent chromate treatment plating Fire dome: Steel plate, black, painting
Dimensions	φ180 × 11 (exposed section) + 110 (D) mm (φ7.09" × 0.43" + 4.33")
Weight	1.4 kg (3.09 lb) (bracket, fire dome included)
Accessory	Rubber grommet …2, Paper pattern …1
