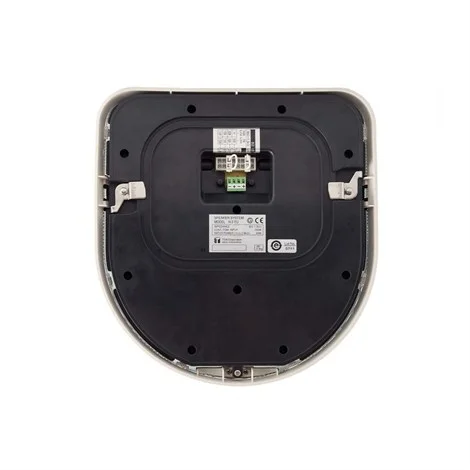

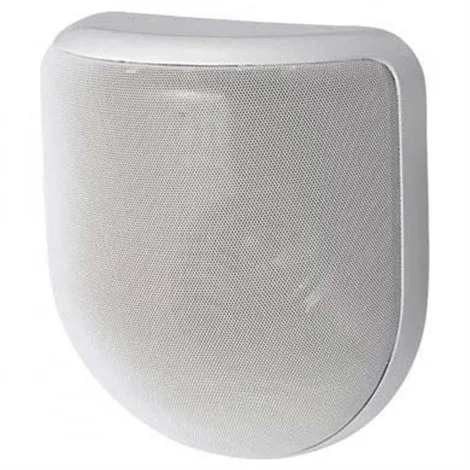

TOA H-3 EU 2x4" Çift Yönlü Duvar Hoparlörü 30W/100V ve 8-ohm

Product Specifications

General

• Enclosure Type:   Sealed type
• Power Handling Capacity:   150W (continuous program/4 Ω)/40W (continuous pink noise/4 Ω).
• Rated Input:   12W (16 Ω, high impedance)
• Rated Impedance:   4 Ω or 16 Ω/100V line; 830 Ω (12W), 17k Ω (6W), 3.3k Ω (3W)/70V line; 420 Ω (12W), 830 Ω. (6W), 17k Ω (3W), 3.3K Ω (1.5W)
• Sound Pressure Level:   88dB (1W/ 1m), mounted in half-opened space
• Frequency Response:   100 ~ 20,000Hz
• Speaker Component:   Low frequency; 10cm cone woofer (neodymium magnet)/High frequency; Balanced dome tweeter
• Input Terminal:   Detachable screw terminal, (+)/(-) 2 each (for bridge connection)

Physical & Dimensions

• Usable cable:   Solid cable, stranded cable: 0.2-2.5mm² (AWG No. 24-14 equivalent)
• Finish:   Grille; steel plate, white paint/Frame; Fire-resistant ABS resin, white/Base Frame; steel plate
• Dimensions:   ø268 x 111mm
• Weigh:   2.1kg (including Base Frame)
• Accessory:   Base Frame x1
• Usable:   Electrical Box 1-gang size switch box (with cover)
