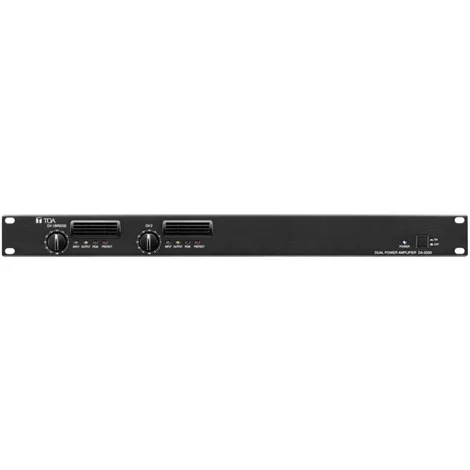

TOA DA-250 D 2x250W/100V Power Amplifikatör

Name: TOA DA-250 D 2x250W/100V Power Amplifikatör
Brand: TOA
SKU: TOA DA-250 D

SKU: TOA DA-250 D

Fiyatı görmek için giriş yapın

Gelince haber ver

Bu ürün yeniden stoğa girdiğinde e-posta ile bilgilendirilirsiniz.

Paylaş:

Açıklama

Power Source	120 V AC, 50/60 Hz
Amplification System	Class D
Power Consumption	120 W (based on UL/CSA standards) 580 W (rated output 70 V line, 19.6 Ω × 2)
Input	2 circuits, +4 dB* (1.23 V) (input level control in maximum position), 10 kΩ, electronically-balanced, removable terminal block (3 pins), XLR-3-31 type connector CH 1 mode ON/OFF switch (ON: PARALLEL, OFF: STEREO)
Rated Output	2 channels: 250 W × 2 (70 V line, 19.6 Ω) 1 channel (BRIDGE): 500 W × 1 (140 V line, 39.2 Ω) M4 screw terminal, distance between barriers: 8.8 mm (0.35")
Frequency Response	20 - 20,000 Hz (±1 dB): HPF OFF/50 - 20,000 Hz (-3 dB, +1 dB): HPF ON (selectable with the inner jumper)
Total Harmonic Distortion	0.1% (1 kHz), 0.3% (20 - 20,000Hz): HPF OFF 0.1% (1 kHz), 0.3% (100 - 20,000 Hz): HPF ON
Protection Circuit	Protection against excessive current flow due to overload, short circuit, unusual DC voltage output, temperature rise at power amp. heat sink (100℃ or more (212゜F)), temperature rise inside the unit (80℃ or more (176゜F))
S/N Ratio	100 dB (A-weighted)
Crosstalk	70 dB (A-weighted)
LED Indicator	Power (blue) × 1, Input (green) × 2, Output (yellow) × 2, Peak (red) × 2, Protect (red) × 2
Cooling	Forced air cooling
Operating Temperature	-10℃ to +40℃ (14゜F to 104゜F)
Operating Humidity	90% RH or less (no condensation)
Finish	Panel: Aluminum, black, alumite Case: Plated steel sheet
Dimensions	482 (W) × 44 (H) × 401.8 (D) mm (18.98" × 1.73" × 15.82")
Weight	5 kg (11.02 lb)
Accessory	Power cord (2 m (6.56 ft)) …1, Removable terminal plug (3 pins) …2, Tamper-proof cap …2
Option	Matching transformer: MT-251H
