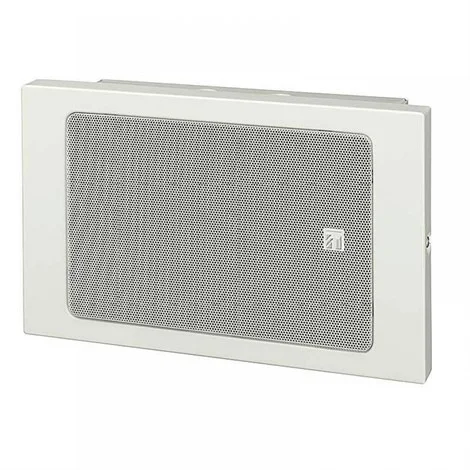

TOA BS-680 FC 6" Wall Montaj Hoparlör 6W/100V

Name: TOA BS-680 FC 6" Wall Montaj Hoparlör 6W/100V
Brand: TOA
SKU: TOA BS-680 FC

SKU: TOA BS-680 FC

Fiyatı görmek için giriş yapın

Gelince haber ver

Bu ürün yeniden stoğa girdiğinde e-posta ile bilgilendirilirsiniz.

Paylaş:

Açıklama

Rated Noise Power	6 W (100 V line), 3 W (70 V line)
Rated Impedance	100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W)

,"70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W)

Sensitivity	>94 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise) >77 dB (1 W, 4 m) (100 Hz - 10 kHz, pink noise) according to EN 54-24 >89 dB (1 W, 1 m) (100 Hz - 10 kHz, pink noise) converted based on EN 54-24
Maximum Sound Pressure Level*	>84 dB (6 W, 4 m) (100 Hz - 10 kHz, pink noise) according to EN 54-24 >96 dB (6 W, 1 m) (100 Hz - 10 kHz, pink noise) converted based on EN 54-24
Frequency Response	150 Hz - 20 kHz
Coverage Angle (-6 dB)	500 Hz: 180゜ (horizontal and vertical); 1 kHz: 140゜ (horizontal and vertical); 2 kHz: 120゜ (horizontal), 110゜ (vertical); 4 kHz: 100゜ (horizontal), 80゜ (vertical); according to EN 54-24
Environmental type	A (indoor applications) according to EN 54-24
Speaker Component	16 cm (6") double cone-type
Applicable Cable	Solid wire: φ1.0 - φ3.0 mm (AWG 18-9)
Connection	Screw connector (steatite terminal × 2) bridging
Finish	Baffle, Cabinet: Steel plate, off-white (RAL 9010 or equivalent color), paint Grille: Surface-treated steel plate net, off-white (RAL 9010 or equivalent color), paint
Dimensions	310 (W) x 190 (H) x 90 (D) mm (12.2" x 7.48" x 3.54")
Weight	2.6 kg (5.73 lb)
Accessory	Rubber grommet x 2, Speaker mounting screw (4 x 16) x 4
