TAIDEN HCS-8338BCE/FM Chairman Flush-Montajing Multimedia Congress Terminal

Name: TAIDEN HCS-8338BCE/FM Chairman Flush-Montajing Multimedia Congress Terminal
Brand: Taiden
SKU: TAIDEN HCS-8338BCE/FM
Price: 160050 TRY
Availability: OutOfStock

SKU: TAIDEN HCS-8338BCE/FM

₺160.050,00

KDV dahil · %20 KDV

Stoğumuzda yok

Şimdi Satın Al

Gelince haber ver

Bu ürün yeniden stoğa girdiğinde e-posta ile bilgilendirilirsiniz.

Paylaş:

Açıklama

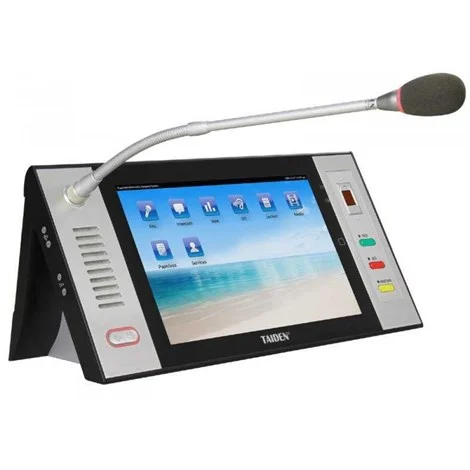

TAIDEN HCS-8338BCE/FM Chairman Flush-Mounting Multimedia Congress Terminal

Features

■ Stylish and ergonomic design

■ Electronic document distribution for paperless meetings

■ Based on TAIDEN originated GMC-STREAM Gigabit

Multimedia Congress Stream technology, all audio and

video signals are transmitted via a Cat.6 Gigabit network

cable, paperless multimedia functions and basic

capabilities of discussion and voting are parallel

operations, fully guarantees the real-time performance

and stability of the important data stream of the meeting

■ Equipped with a 10' LCD touch panel (1280×800),16:10

display ratio offers better document reading experience

■ Capacitive touch panel supporting multi-touch, improve

operation experience

■ 5-megapixel camera with flashlight

■ 'Closed Loop - Daisy Chain” connection topology

■ Supports 48 kHz audio sampling, 64 audio channels, each

with a 30 Hz to 20 kHz frequency response for perfect

sound quality

■ Based on TAIDEN originated MCA-STREAM

(Multi_Channel_ Audio STREAM) digital processing and

transmitting technologies

■ 2×64 CHs interpretation with volume control. Two

delegates may share one unit thus cutting the cost by half

■ Priority button

■ Pluggable microphone

■ Transmitting up to 64 CHs high quality digital audio

signals

■ Excellent immunity to RF interferences from mobile

phones

■ Supporting 'PnP” (plug and play)

■ Built-in contactless IC-Card slot

Electrical	Max. consumption	10 W
LCD	Type	True color TFT LCD
	Dimension	10 inches, 16:10
	Resolution	1280×800
	Display Color	218 (18 bit)
	Contrast	500:1
Headphone connection	Frequency response	30 Hz to 20 kHz
	Earphone load impedance	>16 Ohm
	Earphone output	13 mW
Microphone	Transducer	Electret-condenser
	Polar pattern	Uni-directional
	Operating voltage	5 VDC
	Sensitiviy	-46 dBV/Pa
	Frequency response	50 Hz to 20 kHz
	Input Impedance	2 kOhm
	Directivity 0°/180°	> 20 dB (1 kHz)
	Equivalent noise	20 dBA (SPL)
	Maximum sound pressure level	125 dB (THD<3%)
İnterface data	Connector	Ø 3.5 mm socket for external microphone
		2 × Ø 3.5 mm stereo jack for headphone
Mechanical	Mounting		Tabletop/Flush-mounting
	Dimensions (h × w × d) (w/o stem microphone)		155 × 361 × 122 mm
	Weight (incl. stem microphone)
	Color		Silver-gray panel (PANTONE Cool Gray 7 C)
			+ black base (PANTONE 419 C)
	Stem length		330 mm (standard version),
			240 mm, 410 mm, 470 mm
