RUSH MH 10 BEAM FX 60W RGBW LED Compact Beam Moving Head Spot

Name: RUSH MH 10 BEAM FX 60W RGBW LED Compact Beam Moving Head Spot
Brand: Martin Lighting
SKU: Martin RUSH MH 10 BEAM FX
Price: 103950 TRY
Availability: OutOfStock

SKU: Martin RUSH MH 10 BEAM FX

₺103.950,00

KDV dahil · %20 KDV

Stoğumuzda yok

Şimdi Satın Al

Gelince haber ver

Bu ürün yeniden stoğa girdiğinde e-posta ile bilgilendirilirsiniz.

Paylaş:

Açıklama

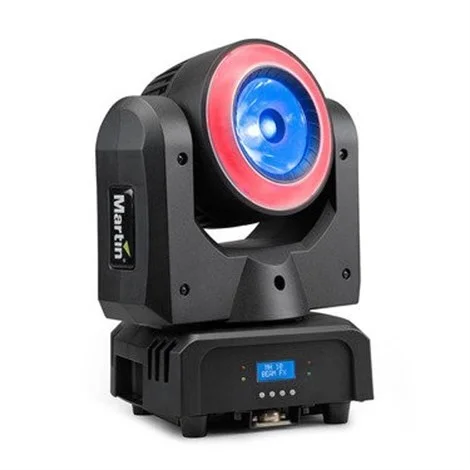

The Martin RUSH MH 10 Beam FX is a compact 60W RGBW LED Beam moving head fixture with an independent, built-in LED ring. With 24 individually-controllable RGB LEDs surrounding a central beam lens, the RUSH MH 10 FX offers a variety of exciting visual effect possibilities at an affordable price.

The Martin RUSH MH 10 Beam FX uses a collimator lens design, creating a striking, high-intensity look on stage. The OSRAM OSTAR LEDs on the MH 10 Beam offers excellent color mixing with Martin MAC Aura, RUSH MH 6, and RUSH Par 2 fixtures. Independent control of the ring LEDs also allows the fixture to easily blend into on-stage LED video elements.

Other features include continuous pan and tilt and lightweight build, providing a number of interesting rigging possibilities and high-speed looks. The Martin RUSH MH 10 is a perfect fit for nightlife, houses of worship, cruise ships and small-to-medium touring and rental customers.

Collimator lens for a super-tight 4.5° high intensity beam
LED ring with 24 independently-controllable LEDs
Continuous pan/tilt for unrestricted movement and high-speed looks

FEATURES

Bright 60 W Osram RGBW LED engine
Collimator lens with tight 4.5° beam angle
Ambient glow ring with 24 individually pixel-controllable RGB LEDs
Electronic dimming and Strobe
Temperature-controlled fan cooling
Unlimited Pan & Tilt rotating
3 + 5 pin XLR DMX connection
Neutrik TRUE 1 in and thru socket
Compact size—L: 275 x W: 188 x H: 325 mm / L: 10.8 x W: 7.4 x H: 12.8 in
Low weight—7.5 kg/16.5 lbs.

SPECIFICATIONS

PHYSICALLength: 275 mm (10.8 in.)Width: 188 mm (7.4 in.)Height: 325 mm (12.8 in.)Weight: 7.5 kg (16.5 lbs.)
DYNAMIC EFFECTSBeam color mixing: RGBWPre-programmed effects: FX (effect macros) in ring with variable speed and direction of sequences, synchronization and chases across multiple fixturesRing color mixing: RGB, grouped or individual control of 24 cellsVirtual color wheel: 33 color presets, virtual color wheel rotation effects, random color (independent in beam and ring)Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout (independent in beam and ring)Pan: 540°Tilt: 270°Pan and tilt speed: Adjustable via onboard control panel and DMXDimming: 0-100%, coarse and fine control (independent in beam and ring)Pan and tilt rotation effect: Constant, variable speed and direction
CONTROL AND PROGRAMMINGControl options: DMX, RDM, stand-alone, master/clientDMX channels: 24 or 93Setting and addressing: Control panel with backlit LCD displayStand-alone trigger options: Music trig, auto trigDMX compliance: USITT DMX512/1990RDM compliance: ANSI/ESTA E1.20
OPTICSMinimum LED lifetime: 20,000 hours to >70% luminous output*Beam effect light source: 60 W RGBW Osram LE RTDUW S2WPRing effect light source: 24 x 0.25 W RGB LEDsCutoff beam angle: 4.4°Binning: Tight color and flux binning*Under manufacturers test conditions.
PHOTOMETRIC DATA
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
CONSTRUCTIONHousing: High-impact flame-retardant thermoplasticColor: BlackProtection rating: IP20
INSTALLATIONMounting points: One quarter-turn omega bracket for rigging clampLocation: Indoor use only, must be fastened to surface or structureOrientation: AnyMinimum distance to combustible materials: 100 mm (4 in.)Minimum distance to illuminated surfaces: 200 mm (8 in.)Minimum clearance around fan and air vents: 100 mm (4 in.)
CONNECTIONSAC power in, thru: Neutrik TRUE1DMX data in, thru: 3-pin and 5-pin locking XLR
ELECTRICALAC power: 100-120 / 200-240 V nominal, 50/60 HzPower supply unit: Auto-ranging electronic switch mode
TYPICAL POWER AND CURRENT120 V, 60 Hz: 0.85 A, 100 W, PF 0.99230 V, 50 Hz: 0.49 A, 108 W, PF 0.99Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
THERMALCooling: Forced air (temperature-regulated, low noise)Maximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 0° C (32° F)Total heat dissipation (calculated, +/- 10%): 1300 BTU/hr. (at full intensity, full white)
APPROVALSEU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3US safety: UL 1573US EMC: CFR Title 47 Part 15 Class ACanadian safety: CSA C22.2 No. 166Canadian EMC: ICES-003 Class AAustralia/NZ: RCM (pending)
INCLUDED ITEMSPower cable, 1.5 m (4.9 ft.), without mains plug
RELATED ITEMSMartin Companion Cable: P/N 91616091Martin Companion Software Suite (including firmware uploader) Free download from www.martin.com
ACCESSORIESCables, 16 A, for connection to power in chains:
Power input cable, H07RN-F, 2.5 mm², 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
Power input cable, H07RN-F, 2.5 mm², 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174
Cables, 16 A, for relaying power in chains:
Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172
Connectors:
Power connector, cable mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789
Power connector, cable mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788
Installation hardware:
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick trigger clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
ORDERING INFORMATIONRUSH® MH 10 Beam FX in cardboard box: P/N 90280120
