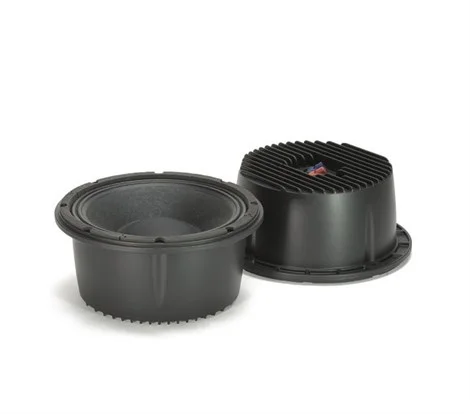

RCF MR10N301 10" Neo Midrange Hoparlör, 300/600W, 3" Bobin, 150 Hz - 2 Khz
RCF

RCF MR10N301 10" Neo Midrange Hoparlör, 300/600W, 3" Bobin, 150 Hz - 2 Khz

SKU: RCF MR10N301

RCF MR10N301 10" Neo Midrange Hoparlör, 300/600W, 3" Bobin, 150 Hz - 2 Khz

₺36.454,68

KDV dahil · %20 KDV

Stoğumuzda yok
Şimdi Satın Al

Gelince haber ver

Bu ürün yeniden stoğa girdiğinde e-posta ile bilgilendirilirsiniz.

Paylaş:

Açıklama

FEATURES
  • 3-inch, finside/outside copper voice coil
  • 600W continuous program power handling
  • 109 dB Sensitivity in horn loaded application
  • 150 Hz – 2 kHz Frequency range
  • High BL neodymium design
  • Unique aluminum sealed basket featuring vented fin heat dissipation design
  • Calibrated back volume for a perfect time domain transient reproduction
GENERAL SPECIFICATIONS
  • Nominal Diameter:260 / 10 mm/inch
  • Rated Impedance:8 Ω
  • Program Power:600 W AES
  • Power handling capacity:300 W AES
  • Sensitivity:102 dB
  • Frequency Range:150 Hz ÷ 2000 Hz
  • Effective Piston Diameter:210 / 8.3 mm/inch
  • Max Excursion Before Damage (peak to peak):20 / 0.8 mm/inch
  • Minimum Impedance:8.5 Ω
  • Voice Coil Diameter:76 / 3 mm/inch
  • Voice Coil Material:Alluminum
  • Voice Coil Winding Depth:11 / 0.4 mm/inch
  • Number of layers:2
  • Kind of layer:inside / outside
  • Top Plate Thickness:10 / 0.4 mm/inch
  • Cone Material:No pressed pulp
  • Cone Design:Curved
  • Surround Material:Polycotton
  • Surround Design:M - roll
THIELE/SMALL PARAMETERS
  • DC resistance:6.2Ω
  • Mechanical factor:6.48
  • Electrical factor:0.72
  • Total factor:0.65
  • BL Factor:20.7 T · m
  • Effective Moving Mass:31.8 g
  • Equivalent Cas air load:2.2 liters
  • Effettive piston area:0.035 m²
  • Max. linear excursion (mathematical):1.4 mm
  • Voice - coil inductance @ 1kHz:1.17 mH
  • Half-space efficiency:9.26%
MOUNTING INFORMATION
  • Overall Diameter:272 / 10.7 mm/inch
  • Bolt Circle Diameter:244 / 9.6 mm/inch
  • Bolt Hole Diameter:7 / 0.3 mm/inch
  • Front Mount Baffle Cut-out:235 / 9.3 mm/inch
  • Rear Mount Baffle Cut-out:232 / 9.1 mm/inch
  • Depth:124 / 4.9 mm/inch
  • Volum

Özellikler

Teknik Özellikler

Hoparlör Nominal Empedansı
8 Ω

Fiziksel Özellikler

Yükseklik
142 mm
Ağırlık
4.5 kg
