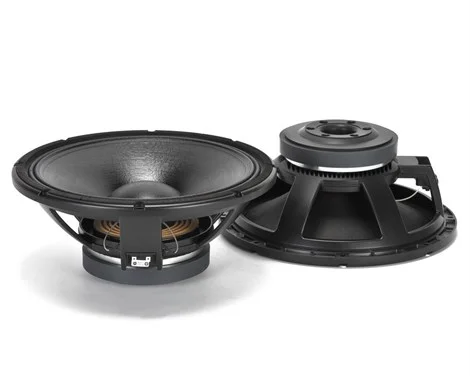

RCF MB15X351 15" Midbass Hoparlör, 700/1400W, 3" Bobin, 40 Hz – 2.5 Khz
RCF

RCF MB15X351 15" Midbass Hoparlör, 700/1400W, 3" Bobin, 40 Hz – 2.5 Khz

SKU: RCF MB15X351

RCF MB15X351 15" Midbass Hoparlör, 700/1400W, 3" Bobin, 40 Hz – 2.5 Khz

₺28.780,01

KDV dahil · %20 KDV

Stoğumuzda yok
Şimdi Satın Al

Gelince haber ver

Bu ürün yeniden stoğa girdiğinde e-posta ile bilgilendirilirsiniz.

Paylaş:

Açıklama

  • FEATURES
  • 3.5-inch, fiberglass inside/outside copper voice coil
  • 1400W continuous program power handling
  • 99 dB Sensitivity
  • 40 Hz – 2.5 kHz Frequency range
  • Dual Forced Hyperventing System
  • Dual spider design with silicon based dampening control
  • M-roll surround and corrugated straight cone geometry
  • GENERAL SPECIFICATIONS
  • Nominal Diameter:380 / 15 mm/inch
  • Rated Impedance:8 Ω
  • Program Power:1400 W AES
  • Power handling capacity:700 W AES
  • Sensitivity:99 dB
  • Frequency Range:40 Hz ÷ 2500 Hz
  • Effective Piston Diameter:330/13 mm/inch
  • Max Excursion Before Damage (peak to peak):40 / 1.57 mm/inch
  • Minimum Impedance:6.5 Ω
  • Voice Coil Diameter:87 / 3.4 mm/inch
  • Voice Coil Material:Copper
  • Voice Coil Winding Depth:19 / 0.74 mm/inch
  • Number of layers:2
  • Kind of layer:inside / outside
  • Top Plate Thickness:10 / 0.39 mm/inch
  • Cone Material:No pressed pulp
  • Cone Design:Straight
  • Surround Material:Polycotton
  • Surround Design:M-roll
  • THIELE/SMALL PARAMETERS
  • Resonance frequency:46 Hz
  • DC resistance:5.4Ω
  • Mechanical factor:6.7
  • Electrical factor:0.33
  • Total factor:0.31
  • BL Factor:22.8 T · m
  • Effective Moving Mass:106 g
  • Equivalent Cas air load:114 liters
  • Effettive piston area:0.086 m²
  • Max. linear excursion (mathematical):7.0 mm
  • Voice - coil inductance @ 1kHz:1,5 mH
  • Half-space efficiency:3.20%
  • MOUNTING INFORMATION
  • Overall Diameter:393 / 15.5 mm/inch
  • Bolt Circle Diameter:371-376 / 14.6-14.8 mm/inch
  • Bolt Hole Diameter:6.5 / 0.3 mm/inch
  • Front Mount Baffle Cut-out:354 / 13.9 mm/inch
  • Rear Mount Baffle Cut-out:354 / 13.9 mm/inch
  • Depth:151 / 5.94 mm/inch
  • Volume occupied by the driver:4.5 / 0.153 liters/ft³
  • Net Weight:8.2 / 18.04 kg/lbs
  • SHIPPING INFORMATION
  • Shipping weight:9 / 19.8 kg/lbs

Özellikler

Teknik Özellikler

Bas Sürücüsü Çapı
15 inç
Hoparlör Nominal Empedansı
8 Ω

Fiziksel Özellikler

Yükseklik
167 mm
Ağırlık
8.2 kg
