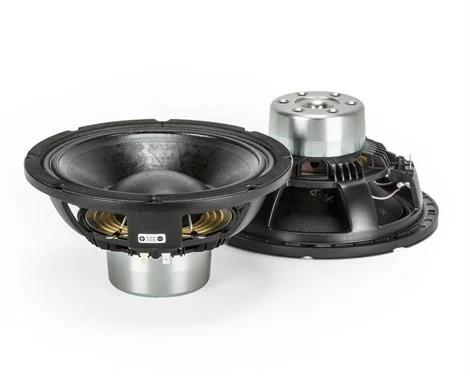

RCF MB10N305 10"Neo Midbass Hoparlör, 500/1000W, 3" Bobin, 55 Hz - 3500 Hz

FEATURES

• 3-inch, fibreglass inside/outside aluminium voice coil
• 1000W continuous program power handling
• 97.5 dB Sensitivity
• 55 Hz – 3.5 kHz Frequency range
• Dual-forced air ventilation for minimum power compression
• M-roll surround and exponential cone geometry

GENERAL SPECIFICATIONS

• Nominal Diameter:260 / 10 mm/inch
• Rated Impedance:8 Ω
• Program Power:1000 W AES
• Power handling capacity:500 W AES
• Sensitivity:97.5 dB
• Frequency Range:55 Hz ÷ 3500 Hz
• Effective Piston Diameter:210 / 8.27 mm/inch
• Max Excursion Before Damage (peak to peak):34/ 1.34 mm/inch
• Minimum Impedance:6.9 Ω
• Voice Coil Diameter:76 / 3.0 mm/inch
• Voice Coil Material:Aluminium
• Voice Coil Winding Depth:14 / 0.55 mm/inch
• Number of layers:1
• Kind of layer:inside / outside
• Top Plate Thickness:10 / 0.39 mm/inch
• Cone Material:No pressed pulp
• Cone Design:Curved
• Surround Material:Polycotton
• Surround Design:M-roll

THIELE/SMALL PARAMETERS

• Resonance frequency:60 Hz
• DC resistance:5.6Ω
• Mechanical factor:4.0
• Electrical factor:0.24
• Total factor:0.23
• BL Factor:18.5 T · m
• Effective Moving Mass:36.5 g
• Equivalent Cas air load:31 liters
• Effettive piston area:0.035 m²
• Max. linear excursion (mathematical):5.0 mm
• Voice - coil inductance @ 1kHz:0.9 mH
• Half-space efficiency:2.90%

MOUNTING INFORMATION

• Overall Diameter:260 / 10.24 mm/inch
• Bolt Circle Diameter:241-246 / 9.5-9.6 mm/inch
• Bolt Hole Diameter:5.5 / 0.21 mm/inch
• Front Mount Baffle Cut-out:234 / 9.21 mm/inch
• Rear Mount Baffle Cut-out:234 / 9.21 mm/inch
• Depth:116 / 4.56 mm/inch
• Volume occupied by the driver:1.4 / 0.046 liters/ft³
• Net Weight:3.2 / 7.05 kg/lbs

SHIPPING INFORMATION

• Shipping weight:4.0 / 8.76 kg/lbs
