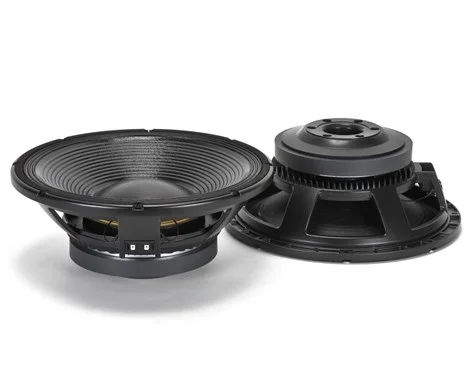

RCF LF15X401 15" Çıplak Subbass 1500/3000W, 4" Bobin, 30 Hz – 1.5 Khz
RCF

RCF LF15X401 15" Çıplak Subbass 1500/3000W, 4" Bobin, 30 Hz – 1.5 Khz

SKU: RCF LF15X401

RCF LF15X401 15" Çıplak Subbass 1500/3000W, 4" Bobin, 30 Hz – 1.5 Khz

₺30.698,68

KDV dahil · %20 KDV

Stoğumuzda yok
Şimdi Satın Al

Gelince haber ver

Bu ürün yeniden stoğa girdiğinde e-posta ile bilgilendirilirsiniz.

Paylaş:

Açıklama


  • FEATURES
  • 4-inch, fiberglass inside/outside copper voice coil
  • 3000W continuous program power handling
  • 96.5 dB Sensitivity
  • 30 Hz – 1.5 kHz Frequency range
  • Dual Forced Hyperventing System
  • Dual spider design with silicon based dampening control
  • Triple-roll surround and corrugated straight cone geometry
  • GENERAL SPECIFICATIONS
  • Nominal Diameter:380 / 15 mm/inch
  • Rated Impedance:8 Ω
  • Program Power:3000 W AES
  • Power handling capacity:1500 W AES
  • Sensitivity:96.5 dB
  • Frequency Range:30 Hz ÷ 1500 Hz
  • Effective Piston Diameter:340/13.4 mm/inch
  • Max Excursion Before Damage (peak to peak):50 / 1.97 mm/inch
  • Minimum Impedance:6.3 Ω
  • Voice Coil Diameter:100 / 4 mm/inch
  • Voice Coil Material:Copper
  • Voice Coil Winding Depth:30 / 1.18 mm/inch
  • Number of layers:2
  • Kind of layer:inside / outside
  • Top Plate Thickness:15 / 0.6 mm/inch
  • Cone Material:No pressed pulp
  • Cone Design:Straight
  • Surround Material:Polycotton
  • Surround Design:Triple roll
  • THIELE/SMALL PARAMETERS
  • Resonance frequency:34 Hz
  • DC resistance:5.5Ω
  • Mechanical factor:7.6
  • Electrical factor:0.30
  • Total factor:0.29
  • BL Factor:26.5 T · m
  • Effective Moving Mass:170 g
  • Equivalent Cas air load:146 liters
  • Effettive piston area:0.091 m²
  • Max. linear excursion (mathematical):11.5 mm
  • Voice - coil inductance @ 1kHz:2,5 mH
  • Half-space efficiency:1.90%
  • MOUNTING INFORMATION
  • Overall Diameter:393 / 15.5 mm/inch
  • Bolt Circle Diameter:371-376 / 14.6-14.8 mm/inch
  • Bolt Hole Diameter:6.5 / 0.3 mm/inch
  • Front Mount Baffle Cut-out:354 / 13.9 mm/inch
  • Rear Mount Baffle Cut-out:354 / 13.9 mm/inch
  • Depth:145 / 5.7 mm/inch
  • Volume occupied by the driver:4.3 / 0.15 liters/ft³
  • Net Weight:12.6 / 27.7 kg/lbs
  • SHIPPING INFORMATION
  • Shipping weight:13.6 / 29.9 kg/lbs


Özellikler

Teknik Özellikler

Bas Sürücüsü Çapı
15 inç
Hoparlör Nominal Empedansı
8 Ω

Fiziksel Özellikler

Yükseklik
161 mm
Ağırlık
12 kg
