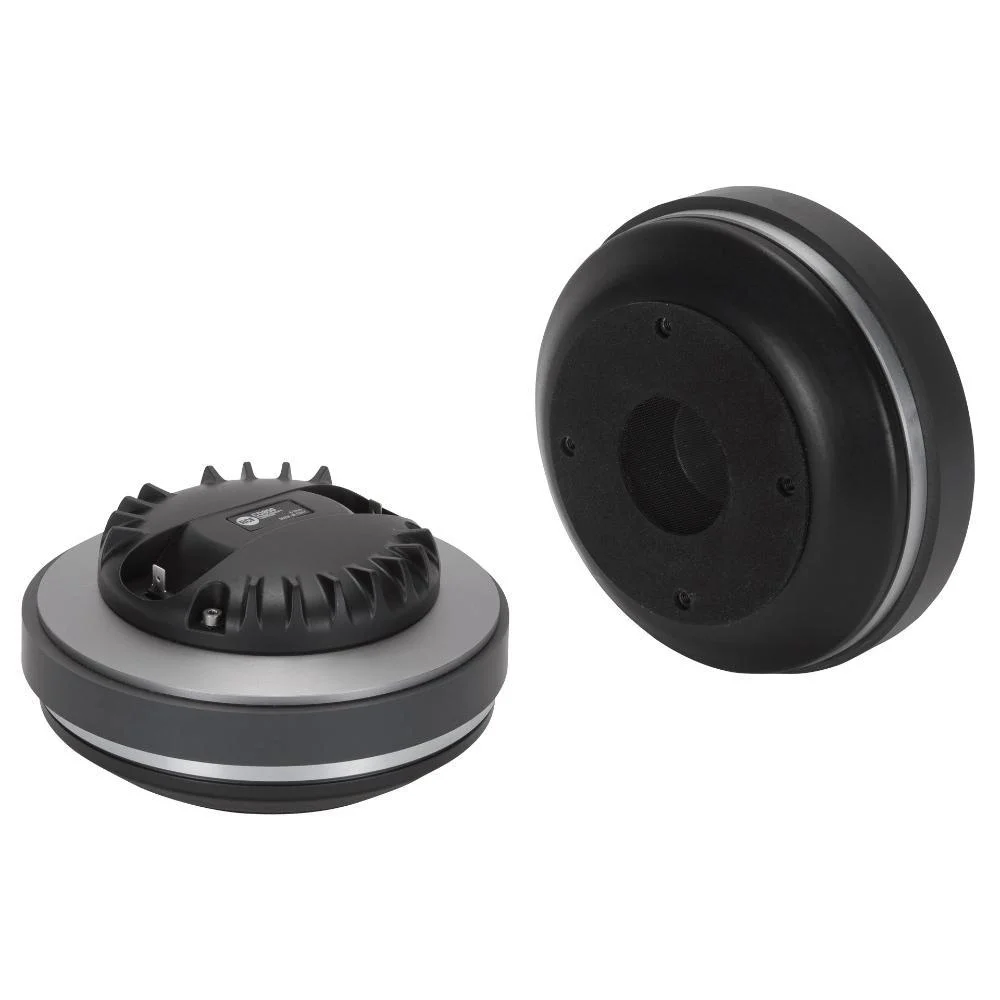

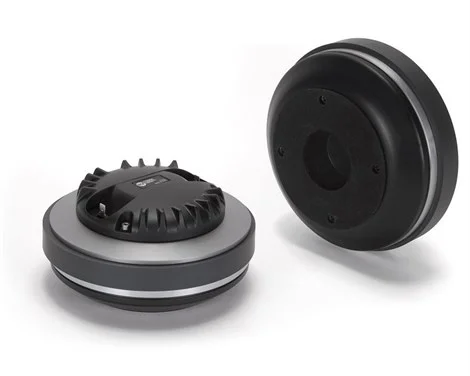

RCF CD850 2.0 2" Tiz Driver, 110/220W, 3" Bobin, 500Hz - 20Khz
Fiyatı görmek için giriş yapın
Açıklama
- FEATURES
- 3-inch Diaphragm, 2-inch Exit Throat / Pure Titanium Compression Driver
- 220W continuous program power handling
- Frequency range: 500Hz - 20kHz
- 3-slot optimized geometry phase plug
- Ceramic Magnet Assembly
- Copper inductance ring for extended response
- Vented, damped, low distortion suspension system
- GENERAL SPECIFICATIONS
- Exit Throat Diameter:50 / 2.0 mm/inch
- Rated Impedance:8 Ω
- Power handling capacity continuous program1:220 W AES
- Power handling capacity AES2:110 W AES
- Sensitivity:109 dB
- Frequency Range:500 Hz ÷ 20000 Hz
- Diaphragm Material:Pure titanium
- Suspension Material:Polyester
- Suspension Design:Flat
- Minimum Impedance:(at 3.5kHz) 8.5 Ω
- Voice Coil Diameter:74.4 / 3.0 mm/inch
- Voice Coil Material:Edgewound aluminium
- Voice Coil Former Design:Straight kapton
- Number of layers:1 - outside
- BL Factor:12.3 T · m
- Flux Density:1.9 T
- Phase Plug Design:3 slots
- Phase Plug Material:Composite
- Magnetics:Ceramic
- Voice Coil Demodulation:Copper ring
- MOUNTING INFORMATION
- Overall diameter:180 / 7.1 mm/inch
- Overall height:88 / 3.5 mm/inch
- Mounting 4 × 5 mm holes at 90°:101.6 / 4.0 mm/inch
- Net weight:5.5 / 12.1 kg/lbs
- SHIPPING INFORMATION
- Shipping weight:6.0 / 13.2 kg/lbs
Özellikler
Fiziksel Özellikler
- Ağırlık
- 5.72 kg
