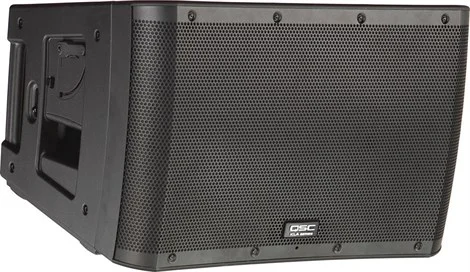

QSC KLA12-BK 500W x 500W, two-way, active, line-array Hoparlör

Name: QSC KLA12-BK 500W x 500W, two-way, active, line-array Hoparlör
Brand: QSC
SKU: QSC KLA12-BK

SKU: QSC KLA12-BK

Fiyatı görmek için giriş yapın

Gelince haber ver

Bu ürün yeniden stoğa girdiğinde e-posta ile bilgilendirilirsiniz.

Paylaş:

Açıklama

500 W x 500 W power module
Rugged, ABS enclosure delivers light-weight durability
SOLO™ Rigging System supports deployment without tools or external hardware
Ar-Q™ Frequency Optimization quickly tunes the array with the click of a dial, adjusting for the appropriate number of boxes
10:1 design factor supports arrays of up to 480 lbs. (218 kg) 5 x KLA12 and 2 x KLA181
90° x 18° nominal coverage (requires only five boxes to configure a 90° x 90° array)
High power, 12” low frequency driver provides extension down to 44Hz without subwoofers
Extensive DSP further enhances and protects performance
1.75” diaphragm compression driver delivers clear and powerful high-frequency reproduction
powerCON® Input and Thru connections
Tilt-Direct™ pole mount assists directivity in single-unit applications

Configuration	Multipurpose 2-way	18" subwoofer
Transducers High Frequency Low Frequency	1.75” diaphragm compression driver 12” cone transducer	18" cone transducer
Frequency Response (-6 dB)	49 Hz - 18 kHz	38 Hz
Frequency Range (-10 dB)	44 Hz - 20 kHz	33 Hz
Nominal Coverage	90° H x 18° V	-
Maximum SPL (1 meter)	131 dB peak	135 dB peak
Amplifiers
Power Output	HF: 500 W Class D continuous LF: 500 W Class D continuous	1000 W Class D continuous
Input Impedance (ohms)	XLR: 40k balanced / 20k unbalanced	XLR: 40k balanced / 20k unbalanced
Controls	Power, Attenuation, LF Setting (External Sub/Normal/DEEP™), Array Size (1-5), Front LED (Pwr/Limit/Off)	Power, Attenuation, LF Mode (Normal/DEEP™), Polarity (Normal/Reverse), Front LED (Pwr/Limit/Off)
Indicators	Power, Signal, Standby, Limit
Connectors	Balanced female XLR line level input, Balanced male XLR full range line level out, Remote attenuation control, Locking powerCON power connector AC In, Locking powerCON® power connector AC Out
Cooling	On demand, 50 mm variable speed fan
Amplifier Protection	Thermal limiting, output overcurrent, overtemperature muting, GuardRail™
Transducer Protection	Thermal limiting, excursion limiting
AC Power Input	Universal power supply 100 - 240 VAC, 50 - 60 Hz
AC Power Consumption (1/8 Power)	100 VAC, 2.3 A 120 VAC, 2.01 A 230 VAC, 1.13 A
Enclosure
Material	Impact resistant ABS	Painted birch plywood
Finish	Black or White paint	Black or White textured paint
Grille	Rugged Powder-Coated Steel Grille	Black or White powder coated 16 gauge steel
Dimensions (HWD)	15.0" x 23.4" x 16.6" (382mm x 594mm x 422mm)	21.6" x 23.1" x 25.7" (547mm x 586mm x 633mm)
Weight (Net)	55 lbs (25 kg)	100 lb (45.3 kg)
Available Accessories	KLA12 TOTE, K Series M10 Kit, KLA AF12 Array Frame	KW181 POLE
