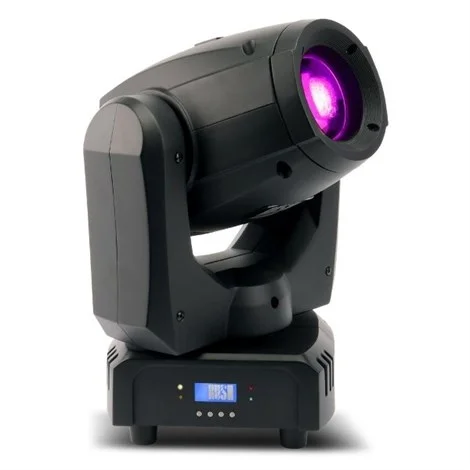

Martin Rush MH5 Profile LED Moving Head Spot

Name: Martin Rush MH5 Profile LED Moving Head Spot
Brand: Martin Lighting
SKU: Martin RUSH MH 5 PROFILE
Price: 123750 TRY
Availability: OutOfStock

SKU: Martin RUSH MH 5 PROFILE

₺123.750,00

KDV dahil · %20 KDV

Stoğumuzda yok

Şimdi Satın Al

Gelince haber ver

Bu ürün yeniden stoğa girdiğinde e-posta ile bilgilendirilirsiniz.

Paylaş:

Açıklama

TEKNİK ÖZELLİKLER

Length	290 mm (11.5 in.)
Width	187 mm (7.4 in.)
Height	416 mm (16.4 in.)
Weight	9 kg (19.9 lbs.)
Color wheel 1	8 colors plus open, rotation with variable direction and speed
Color wheel 2	8 colors (incl. 1 x UV, 2 x CTC) plus open, rotation with variable direction and speed
Rotating gobo wheel	6 gobos plus open, wheel rotation and gobo rotation
Static gobo wheel	7 gobos plus open, wheel rotation and shake
Electronic shutter effect	Strobe effect, pulse effects, instant open and blackout
Prism	Indexing and rotation with variable direction and speed
Focus	Motorized
Electronic dimming	0 - 100%, four dimming curve options
Pan	540°
Tilt	270°
Pan and tilt speed	Adjustable via onboard control panel and DMX
Control options	DMX, stand-alone
DMX channels	16
Standalone trigger options	Music trig, auto trig
Standalone sequences	4 pre-programmed shows
Music trig sensitivity	Adjustable
Setting and addressing	Control panel with backlit LCD display
Protocol	USITT DMX512/1990
Beam angle	16° (one-tenth peak),14° (half-peak)
Light source	75 W LED engine
Minimum LED lifetime	50,000 hours (to >70% luminous output)*
Optics notes	*Figure obtained under manufacturer's test conditions.
Color	Black
Housing	High-impact flame-retardant thermoplastic
Protection rating	IP20
Rotating gobo size	24 mm (0.94 in.)
Rotating gobo image size	20 mm (0.79 in.)
Mounting	One quarter-turn bracket for rigging clamp
Location	Indoor use only, must be fastened to surface or structure
Orientation	Any
AC power in, thru	Neutrik PowerCon
DMX data in/out	3-pin and 5-pin locking XLR
AC power	100-240 V nominal, 50/60 Hz
Typical total power consumption	165 W
Electrical notes	Power consumption figures are typical, not maximum. Allow for +/-10% variation.
100 V, 60 Hz	1.7 A, 165 W
230 V, 50 Hz	0.8 A, 157 W
Typical Power and Current notes	Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
Cooling	Forced air (temperature-regulated, low noise)
Maximum ambient temperature (Ta max.)	40° C (104° F)
Minimum ambient temperature (Ta min.)	0° C (32° F)
Total heat dissipation (calculated, +/- 10%)	565 BTU/hr. (at full intensity, full white)
EU safety	EN 60598-2-17 (EN 60598-1),EN 62471, EN 62493
EU EMC	EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
US safety	UL 1573
US EMC	47 CFR Part 15 Class A
Canadian safety	CSA C22.2 No. 166
Canadian EMC	ICES-003 Class A
Australia/NZ	C-TICK N4241
Included Items notes	Power cable, 1.5 m, without mains plug
Cables, 16 A, for connection to power in chains	Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 1.2 m (3.9 ft.): P/N 91611798 Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 1.2m (3.9 ft.): P/N 91610175 Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 2.5m (8.2 ft.): P/N 91611799 Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 2.5m (8.2 ft.): P/N 91610176
Installation hardware	G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003 Quick trigger clamp (suspension with fixture hanging vertically downwards only): P/N 91602007 Half-coupler clamp: P/N 91602005 Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006 Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
RUSH MH 5 Profile™ in cardboard box	P/N 90280040
Cables, 16 A, for power input	Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800 Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177 Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801 Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178 (H07RN-F are European approved cables, SJOOW are US approved cables)
Power connectors	Power Connector PowerCON Male: P/N 91611795 Power Connector PowerCON Female : P/N 91611794
Martin™ RDM 5.5 Splitter	P/N 90758150
Martin Companion Cable	P/N 91616091
Martin Companion Software Suite (including firmware uploader)	Free download from www.martin.com
