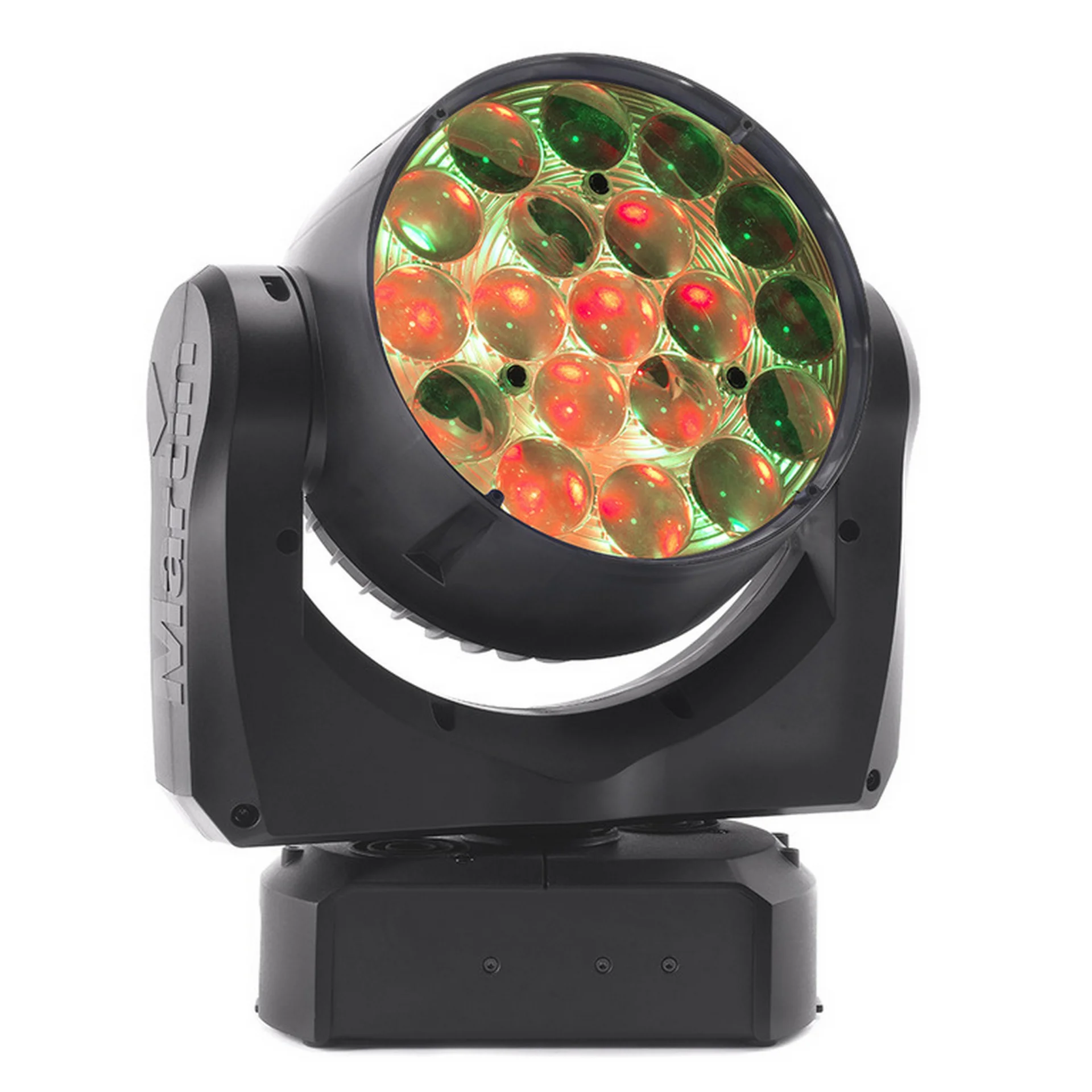

Martin MAC AURA XB 19x15W Led Wash Moving Head Zoom
Martin Lighting

Martin MAC AURA XB 19x15W Led Wash Moving Head Zoom

SKU: Martin MAC AURA XB

Martin MAC AURA XB 19x15W Led Wash Moving Head Zoom

₺361.350,00

KDV dahil · %20 KDV

Stoğumuzda yok
Şimdi Satın Al

Gelince haber ver

Bu ürün yeniden stoğa girdiğinde e-posta ile bilgilendirilirsiniz.

Paylaş:

Açıklama

The MAC Aura XB takes an award-winning, innovative, compact LED wash light to the next level, incorporating many new features first introduced with the MAC Quantum Wash™. Not only does the MAC Aura XB offer additional brightness, it also features a new superior color mixing system and an optimized lens design for tighter beams and more even washes. Martins unique and patented Eye-candy Aura Effect™ is also part of the package.

  • Super bright single lens wash with fully premixed color
  • Compact design and low weight
  • High efficiency, low power consumption, long service life



Lighting For Live Streams



VIDEOS









FEATURES


  • Super-bright single-lens wash with fully premixed color
  • Broad color palette, RGBW color mixing
  • Eye-candy Aura Effect™
  • Uniform shades
  • Built-in FX engine
  • 10 to 60° uniform zoom
  • 6000 Lumens output
  • Rapid movement
  • Compact, low weight design (6.5 kg)
  • High efficiency, low power consumption, long lifetime


SPECIFICATIONS





  • PHYSICALLength: 302 mm (11.9 in.) across yokeWidth: 302 mm (11.9 in.) across yokeHeight: 360 mm (14.2 in.),head straight upWeight: 6.5 kg (14.4 lbs.) without accessories
    DYNAMIC EFFECTSBeam color mixing: RGBWAura (secondary lens array illumination) color mixing: RGBBeam color temperature control: CTO, variable 10,000 - 2500 KBeam and aura electronic color wheel effect: 33 LEE-referenced colors plus white, variable-speed color-wheel rotation effect and random colorBeam and aura independent shutter effects: Electronic, with regular and random pulse, burst and strobe effectsPre-programmed effects: Range of synchronized and independent beam and aura FX, different FX can be combinedElectronic dimming: Independent beam and aura, four dimming curve optionsPan: 540°Tilt: 232°Pan and tilt speed: Adjustable via onboard control panel and DMX
    CONTROL AND PROGRAMMINGControl systems: DMX, RDMControl options: Independent or synchronized Beam and Aura controlControl resolution: 8-bit, with 16-bit control of pan & tiltSetting and addressing: Control panel with backlit graphic displayDMX channels: 14/25DMX compliance: USITT DMX512-ARDM compliance: ANSI/ESTA E1.20Transceiver: RS-485Firmware update: Via DMX with Martin™ USB Duo DMX Interface Box
    OPTICS AND PHOTOMETRIC DATA

    Light Source: 19x 15W RGBW LED Array System
    LED Refresh Rate Beam: 1200 Hz
    LED Refresh Rate Aura: 4395 Hz
    Total luminous output (wide, one-tenth peak): 6000 lumens
    Total luminous output (narrow, one-tenth peak): 4300 lumens
    Binning: Tight color and flux binning
    Calibration: Full Gamut Color Calibration
    Color Modes: Extended Mode, Calibrated Mode and Raw Mode
    Video compatibility: Designed for use with HD/high-speed video cameras
    Minimum LED lifetime: 50,000 hours (to >70% luminous output)*
    *Figure obtained under manufacturer´s test conditions

    CONSTRUCTIONHousing: High-impact thermoplastic, flame-retardant to UL 94 5VAColor: BlackProtection rating: IP20
    INSTALLATIONMounting points: M12 hole for rigging clamp, attachment points for surface-mounting bracketLocation: Indoor use only, must be fastened to surface or structureOrientation: AnyMinimum distance to combustible materials: 200 mm (8.0 in.)Minimum distance to illuminated surfaces: 1 m (3 ft. 4 in.)
    CONNECTIONSAC Power: Neutrik PowerCON TRUE1 NAC3PX dual socketAC power input socket: Accepts Neutrik PowerCON TRUE1 NAC3FX-W cable connectorAC power thru socket: Accepts Neutrik PowerCON TRUE1 NAC3MX-W cable connectorDMX and RDM data in/out: 5-pin locking XLR
  • ELECTRICALAC power: 100-240 V nominal, 50/60 HzPower supply unit: Auto-ranging electronic switch modeTypical half-cycle RMS inrush current: 10.7 ATypical power consumption, all effects static, zero light output: <25 WMaximum total power consumption: 400 W
    TYPICAL POWER AND CURRENT100 V, 60 Hz: 359 W, 3.8 A, PF 0.99120 V, 60 Hz: 355 W, 3.2 A, PF 0.99208 V, 60 Hz: 350 W, 1.8 A, PF 0.97230 V, 50 Hz: 349 W, 1.7 A, PF 0.95240 V, 50 Hz: 349 W, 1.6 A, PF 0.95Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
    THERMALCooling: Forced air (temperature-regulated, low noise, user-definable levels)Maximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 5° C (41° F)Total heat dissipation (calculated, +/- 10%): 1230 BTU/hr.
    APPROVALSEU safety: EN 60598-2-17 (EN 60598-1),EN 62471EU EMC: EN 55103-1, EN 55103-2, EN 55015, EN 61547US safety: UL 1573US EMC: FCC Part 15 Class ACanadian safety: CSA E598-2-17 (CSA E60598-1)Canadian EMC: ICES-003 Class AAustralia/NZ: C-TICK N4241
    INCLUDED ITEMSUser manual: P/N 35000254

    M12 bolt suitable for use with Martin rigging clamps
    Note that power cables and connectors are not included and must be ordered separately

    ACCESSORIESPower connectors:

    Cable connector, Neutrik PowerCON TRUE1 NAC3FX-W (female): P/N 91611789
    Cable Connector, Neutrik PowerCON TRUE1 NAC3MX-W (male): P/N 91611788

    Cables, 16 A, for connection to power in chains:

    Power input cable, H07RN-F, 2.5 mm², 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female),1.5 m (4.9 ft.): P/N 91611797
    Power input cable, H07RN-F, 2.5 mm², 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female),5 m (16.4 ft.): P/N 91611786
    Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female),1.5 m (4.9 ft.): P/N 91610173
    Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female),5 m (16.4 ft.): P/N 91610174

    Cables, 16 A, for relaying power in chains:

    Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
    Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
    Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172

    (H07RN-F are European approved cables, SJOOW are US approved cables)

    Optical Accessories: MAC Aura / Aura XB Soft Lens Kit: P/N 91611730Installation hardware:

    Quick surface mounting bracket for MAC Aura XB, set of 5: P/N 91606018
    G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
    Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
    Half-coupler clamp: P/N 91602005
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

    Flightcase: 6-unit flightcase for MAC Aura™: P/N 91515020
    RELATED ITEMSMartin Companion Cable: P/N 91616091Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com
    ORDERING INFORMATIONMAC Aura XB™ in cardboard box: P/N 90232100MAC Aura XB™ in 6-unit flightcase: P/N 90232110
