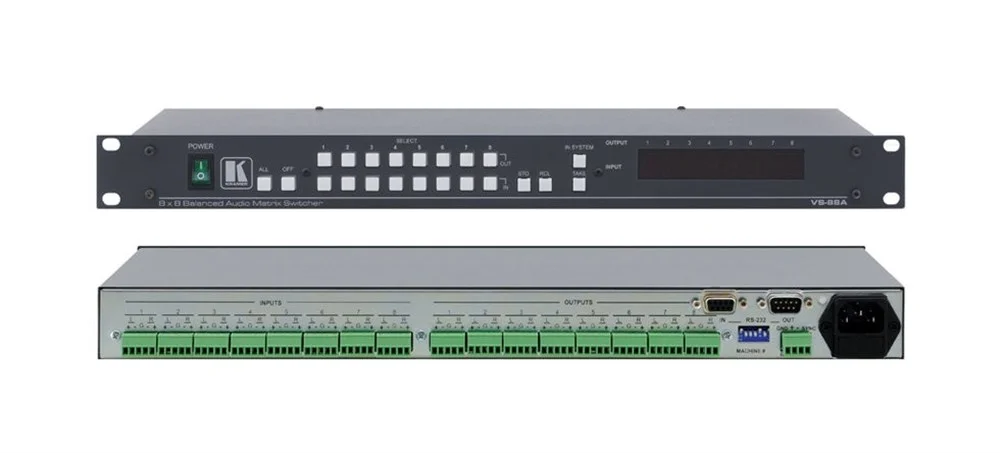

Kramer Vs88A 8X8 Balanced Stereo Matrix Switcher

Name: Kramer Vs88A 8X8 Balanced Stereo Matrix Switcher
Brand: KRAMER
SKU: Kramer Vs88A

SKU: Kramer Vs88A

Bu ürün proje / teklif kapsamındadır. Online fiyat gösterilmez — fiyat için teklif isteyin.

Paylaş:

Açıklama

The VS−88A is a high−performance matrix switcher for balanced stereo audio signals. It can route any or all inputs to any or all outputs simultaneously.

S/N Ratio - 84dB unweighted (1Vpp).
Control - Front panel, RS−232 (K−Router™ Windows®−based Kramer software is included), RS−485.
Take Button - Executes multiple switches all at once.
Memory Locations - Stores multiple switches as presets to be recalled and executed when needed.

INPUTS:	8 balanced stereo audio, +4dBu/33kΩ on detachable terminal blocks.
OUTPUTS:	8 balanced stereo audio, +4dBu/50Ω (20Vpp max) on detachable terminal blocks.
AUDIO BANDWIDTH (-3dB):	100kHz.
AUDIO S/N:	84dB unweighted (1Vpp).
CONTROL:	22 front panel buttons, RS−232 and RS−485 control interface.
AUDIO THD:	0.025% (1Vpp, 1kHz).
2nd HARMONIC:	0.013%.
MAX. AUDIO:	>20dBu.
INDICATORS:	8−character display on the front panel.
POWER CONSUMPTION:	115/230V AC, 50/60Hz, 16VA max.
DIMENSIONS:	19" x 7" x 1U W, D, H, rack mountable.
WEIGHT:	3.5kg (7.8lbs) approx.
ACCESSORIES:	Power cord.
