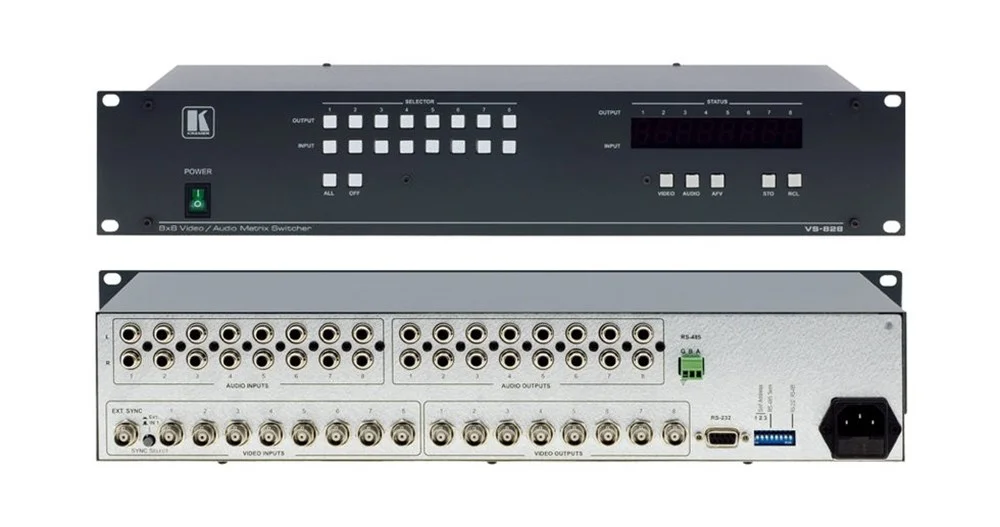

Kramer Vs828 8X8 Compozit A/V Matrix Switcher

Name: Kramer Vs828 8X8 Compozit A/V Matrix Switcher
Brand: KRAMER
SKU: Kramer Vs828

SKU: Kramer Vs828

Bu ürün proje / teklif kapsamındadır. Online fiyat gösterilmez — fiyat için teklif isteyin.

Paylaş:

Açıklama

The VS−828 is a high−performance matrix switcher for composite video and unbalanced stereo audio signals. Switching during the vertical interval ensures glitch−free switching with genlocked sources.

Bandwidth - 100MHz (−3dB) fully loaded.
Control - Front panel, RS−232 (K−Router™ Windows®−based software is included), RS−485, & IR Remote (included) & Remote IR receiver (optional).
Memory Locations - Stores multiple switches as presets to be recalled and executed when needed.
Audio Breakaway Switching.
Vertical Interval Switching.
Switching Synchronization - Synchronizes either to external reference or the incoming video.
Selectable Sync Signal Termination.

INPUT:	8 composite video 1Vpp/75Ω on BNC connectors; 1 sync/video genlock with sync select switch; 8 audio stereo up to +4dBu/62kΩ on RCA connectors.
OUTPUT:	8 composite video 1Vpp/75Ω on BNC connectors; 8 audio stereo +4dBu/50Ω on RCA connectors.
MAX. VIDEO OUTPUT LEVEL:	2Vpp.
MAX. AUDIO OUTPUT LEVEL:	+/−20Vpp.
VIDEO BANDWIDTH (-3dB):	100MHz.
AUDIO BANDWIDTH (-3dB):	100kHz.
DIFF. GAIN:	0.05%.
DIFF. PHASE:	0.03Deg.
K-FACTOR:	<0.05%.
VIDEO S/N RATIO:	74dB.
AUDIO S/N RATIO:	88dB unweighted (1Vpp).
VIDEO COUPLING:	DC.
AUDIO COUPLING:	AC.
VIDEO CROSSTALK (all hostile):	−50dB @5MHz.
AUDIO CROSSTALK (all hostile):	–71.4dB @1kHz.
AUDIO THD + NOISE:	0.016% (1V, 1kHz).
AUDIO 2nd HARMONIC:	0.012%.
CONTROLS:	Manual, RS−232, RS−485, IR remote control.
POWER CONSUMPTION:	230V AC, 50/60Hz (115V AC, USA), 17VA.
DIMENSIONS:	19" x 7" x 2U W, D, H, rack mountable.
WEIGHT:	3.4kg (7.5lbs) approx.
ACCESSORIES:	Power cord, null−modem adapter, Windows®−based control software, IR remote control, rack "ears".
