Kramer Vs1616A Audio Stereo Matrix Switcher

Name: Kramer Vs1616A Audio Stereo Matrix Switcher
Brand: KRAMER
SKU: Kramer Vs1616A

SKU: Kramer Vs1616A

Bu ürün proje / teklif kapsamındadır. Online fiyat gösterilmez — fiyat için teklif isteyin.

Paylaş:

Açıklama

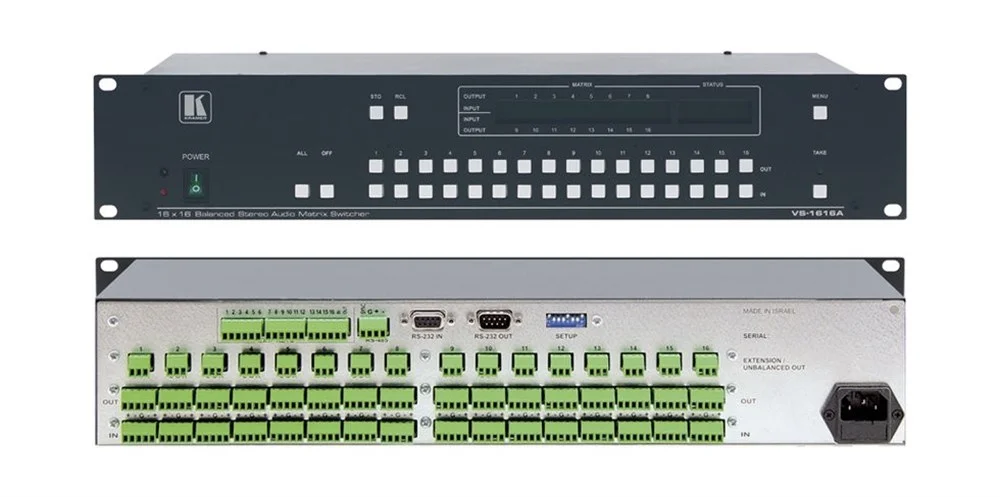

The VS−1616A is a high−performance matrix switcher for balanced stereo audio signals. It can route any or all inputs to any or all outputs simultaneously.

Expandable to 96x96 Using Multiple Units.
S/N Ratio - 82.2dB unweighted (1Vpp).
Memory Locations - Stores multiple switches as presets to be recalled and executed when needed.
Take Button - Executes multiple switches all at once.
Control - Front panel, RS−232 (K−Router™ Windows®−based Kramer software is included), RS−485, contact closure, & IR remote (included).

INPUTS:	16 balanced stereo audio, +4dBu/10kΩ on detachable terminal blocks.
OUTPUTS:	16 balanced stereo audio, +4dBu/50Ω on detachable terminal blocks.
MAX. OUTPUT LEVEL:	20Vpp.
BANDWIDTH (-3dB):	100kHz.
S/N RATIO:	82.2dB unweighted.
CROSSTALK:	−80dB @1kHz.
COUPLING:	AC.
AUDIO THD + NOISE:	0.04%.
AUDIO 2nd HARMONIC:	0.002% @1kHz.
CONTROL:	Front panel buttons, RS−232, RS−485, contact closure, & IR remote (included).
INDICATORS:	8−character display on the front panel.
POWER CONSUMPTION:	115/230V AC, 50/60Hz, 23VA.
DIMENSIONS:	19" x 7" x 2U W, D, H, rack mountable.
WEIGHT:	3.5kg (7.8lbs) approx.
ACCESSORIES:	Power cord, Windows®−based Kramer control software, null−modem adapter.
