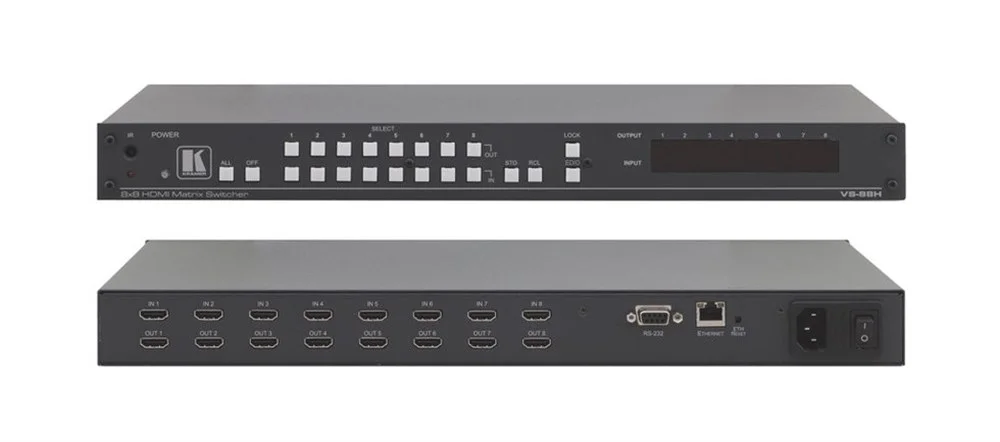

Kramer Vs-88Hn 8X8 Hdmi Matrix Switcher

Name: Kramer Vs-88Hn 8X8 Hdmi Matrix Switcher
Brand: KRAMER
SKU: Kramer Vs-88Hn

SKU: Kramer Vs-88Hn

Bu ürün proje / teklif kapsamındadır. Online fiyat gösterilmez — fiyat için teklif isteyin.

Paylaş:

Açıklama

The VS−88H is a high−performance matrix switcher for HDMI signals. It reclocks and equalizes the signal and can route any input to any or all outputs simultaneously.

Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel).
HDCP Compatible.
HDTV Compatible.
HDMI Support - 3D, Deep Color, x.v.Color™.
3D Pass-Through.
Kramer Equalization & re‑Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
Output Disconnect - Each output.
Front Panel Control Lockout.
Memory Locations - Stores multiple switches as presets to be recalled and executed when needed.
Flexible Control Options - Front panel, IR remote, RS−232 (K−Router™ Windows®−based software is included), Ethernet (Windows®−based Ethernet Configuration Manager & Virtual Serial Port Manager is included).

INPUTS:	8 HDMI connectors.
OUTPUTS:	8 HDMI connectors.
MAX. DATA RATE:	6.75Gbps (2.25Gbps per graphic channel).
COMPLIANCE WITH HDMI STANDARD:	Supports HDMI and HDCP.
RESOLUTION:	Up to UXGA; 1080p.
POWER CONSUMPTION:	100−240V AC, 50/60Hz, 33VA.
CONTROLS:	Front panel buttons, infrared remote control transmitter, RS−232, Ethernet.
DIMENSIONS:	19" x 7" x 1U W, D, H, rack mountable.
WEIGHT:	2.5kg (5.5lbs) approx.
ACCESSORIES:	Power cord, IR transmitter, rack ”ears”.
OPTIONS:	Kramer HDMI cables.
