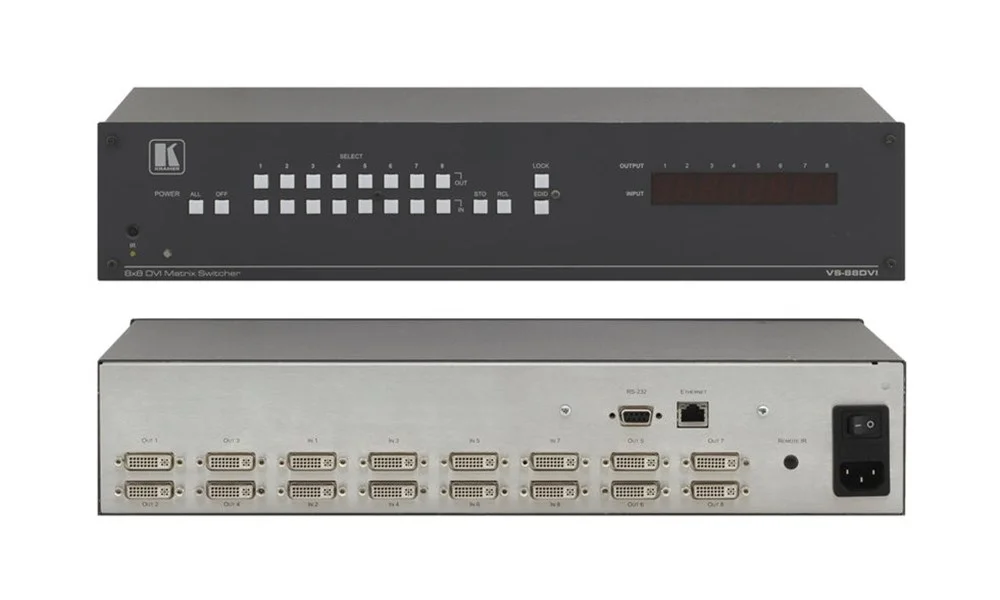

Kramer Vs-88Dvi Matrix Switcher

Name: Kramer Vs-88Dvi Matrix Switcher
Brand: KRAMER
SKU: Kramer Vs-88Dvi

SKU: Kramer Vs-88Dvi

Bu ürün proje / teklif kapsamındadır. Online fiyat gösterilmez — fiyat için teklif isteyin.

Paylaş:

Açıklama

The VS−88DVI is a high−performance matrix switcher for DVI signals. The unit reclocks and equalizes the signal and can route any or all inputs to any or all outputs simultaneously.

Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel).
HDTV Compatible.
Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal integrity to travel longer distances.
I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for DVI systems.
Flexible Control Options - Front panel, IR remote, RS−232 (K−Router™ Windows®−based software is included), Ethernet (Windows®−based Ethernet Configuration Manager & Virtual Serial Port Manager is included).
Output Disconnect - Each output.
Front Panel Lockout.
Memory Locations - Stores multiple switches as presets to be recalled and executed when needed.

INPUTS:	8 DVI, 1.2Vpp on DVI Molex 24−pin female connectors; DDC signal 5Vpp (TTL).
OUTPUTS:	8 DVI, 1.2Vpp on DVI Molex 24−pin female connectors; DDC signal 5Vpp (TTL).
MAX. DATA RATE:	6.75Gbps (2.25Gbps per graphic channel).
COMPLIANCE WITH STANDARDS:	Supports DVI 1.1.
MAX RESOLUTION:	Up to UXGA; 1080p, 1920x1200.
POWER CONSUMPTION:	100−240V AC; 50/60Hz, 43VA.
CONTROLS:	Front panel buttons, infrared remote control transmitter, RS−232, Ethernet.
DIMENSIONS:	19" x 7" x 2U W, D, H.
WEIGHT:	2.5kg (5.5lbs) approx.
ACCESSORIES:	Power cord, infrared remote controller, null−modem adapter, rack "ears".
