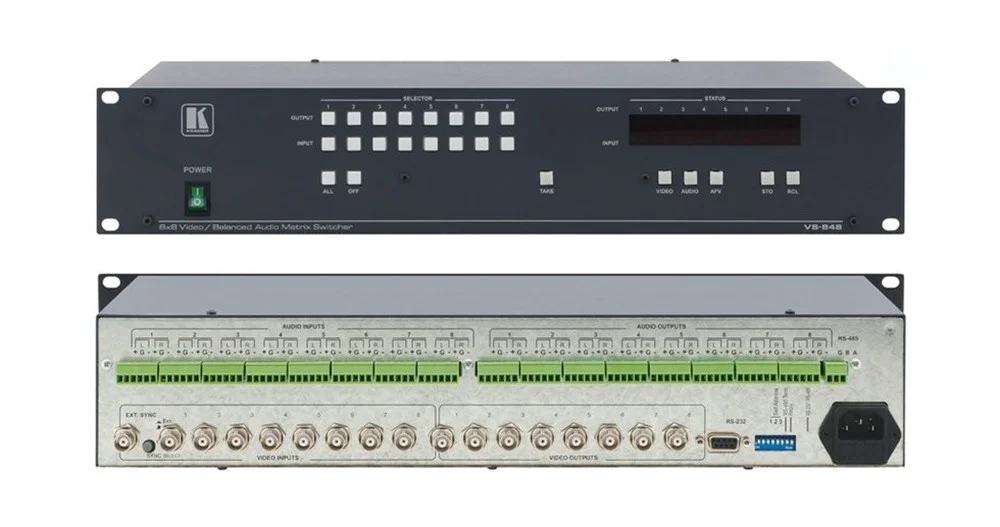

Kramer Vs-848 Comp.Video Audio Matrix Switcher

Name: Kramer Vs-848 Comp.Video Audio Matrix Switcher
Brand: KRAMER
SKU: Kramer Vs-848

SKU: Kramer Vs-848

Bu ürün proje / teklif kapsamındadır. Online fiyat gösterilmez — fiyat için teklif isteyin.

Paylaş:

Açıklama

The VS−848 is a high−performance matrix switcher for composite video and balanced stereo audio signals. Switching during the vertical interval ensures glitch−free switching with genlocked sources.

Bandwidth - 200MHz (−3dB) fully loaded.
Control - Front panel, RS−232 (K−Router™ Windows®−based software is included), RS−485, & IR Remote (included) & Remote IR receiver (optional).
Take Button - Executes multiple switches all at once.
Memory Locations - Stores multiple switches as presets (salvos) to be recalled and executed when needed.
Audio Breakaway Switching.
Vertical Interval Switching.
Switching Synchronization - Synchronizes either to external reference or the incoming video.
Selectable Sync Signal Termination.

INPUTS:	8 composite video, 1Vpp/75Ω on BNC connectors; 1 sync/video genlock 1Vpp/75Ω with sync select switch; 8 balanced stereo audio, +4dBu/33kΩ on detachable terminal blocks.
OUTPUTS:	8 composite video, 1Vpp/75Ω on BNC connectors; 8 balanced stereo audio, +4dBu/50Ω (24Vpp max) on detachable terminal blocks.
VIDEO BANDWIDTH (-3dB):	200MHz.
MAX. AUDIO:	24Vpp (>20dBu).
AUDIO BANDWIDTH (-3dB):	100kHz.
DIFF. GAIN:	0.05%.
DIFF. PHASE:	0.03Deg.
K-FACTOR:	<0.05%.
VIDEO S/N:	74dB.
AUDIO S/N:	84dB unweighted (1Vpp).
VIDEO CROSSTALK:	−50dB @5MHz.
NON-LINEARITY:	0.1%.
AUDIO THD:	0.025% (1V, 1kHz).
2nd HARMONIC:	0.013%.
SWITCHING:	Vertical interval.
CONTROL:	Manual, RS−232, RS−485, IR remote (included).
POWER CONSUMPTION:	230V AC, 50/60Hz, (115V AC, USA) 14VA.
DIMENSIONS:	19" x 7" x 2U (W, D, H) rack mountable.
WEIGHT:	3.5kg (7.8lbs) approx.
ACCESSORIES:	Power cord, Windows®−based control software, null−modem adapter, IR remote control.
