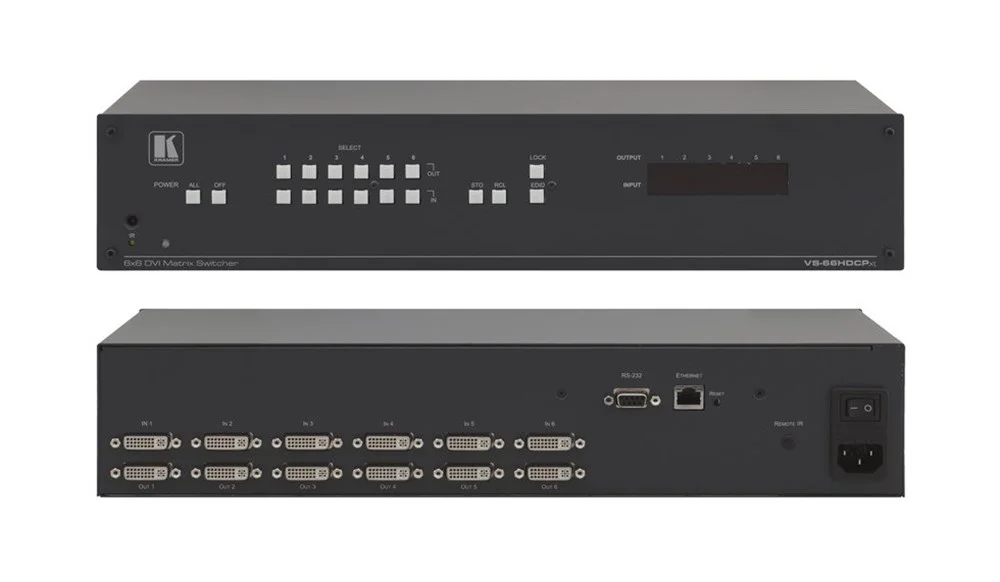

Kramer Vs-66Hdcpxl 6X6 Dvi Matrix Switcher

Name: Kramer Vs-66Hdcpxl 6X6 Dvi Matrix Switcher
Brand: KRAMER
SKU: Kramer Vs-66Hdcpxl

SKU: Kramer Vs-66Hdcpxl

Bu ürün proje / teklif kapsamındadır. Online fiyat gösterilmez — fiyat için teklif isteyin.

Paylaş:

Açıklama

The VS−66HDCPxl is a high−performance matrix switcher for DVI and HDMI signals on a DVI−D connector. It reclocks and equalizes the signal and can route any input to any or all outputs simultaneously.

Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel).
HDTV Compatible.
HDCP Compliant.
HDMI Support - Deep Color, x.v.Color™, 3D Pass−Through, HDMI Compressed Audio Channels.
Input/Output - DVI−D signals (on DVI−I connectors).
Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal integrity to travel longer distances.
I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for DVI systems.
Fast Switching Technology - Reduces switching delay between DVI/HDMI sources.
Flexible Control Options - Front panel, IR Remote, RS−232 (K−Router™ Windows®−based software is included), Ethernet (Windows®−based Ethernet Configuration Manager & Virtual Serial Port Manager is included).
Output Disconnect - Each output.
Front Panel Lockout.
Memory Locations - Stores multiple switches as presets to be recalled and executed when needed.

INPUTS:	6 DVI connectors.
OUTPUTS:	6 DVI connectors.
BANDWIDTH:	6.75Gbps (2.25Gbps per graphic channel).
COMPLIANCE WITH STANDARDS:	Supports DVI and HDCP.
MAX RESOLUTION:	Up to UXGA; 1080p.
POWER CONSUMPTION:	100−240VAC; 50/60Hz, 38VA.
CONTROLS:	Front panel buttons, infrared remote control transmitter, RS−232, Ethernet.
OPERATING TEMPERATURE:	0° to +40°C (32° to 104°F).
STORAGE TEMPERATURE:	−40° to +70°C (−40° to 158°F).
HUMIDITY:	10% to 90%, RHL non−condensing.
DIMENSIONS:	19" x 9.3" x 2U W, D, H.
WEIGHT:	2.5kg (5.5lbs) approx.
ACCESSORIES:	Power cord, IR transmitter, rack “ears”.
OPTIONS:	External remote IR receiver cable.
