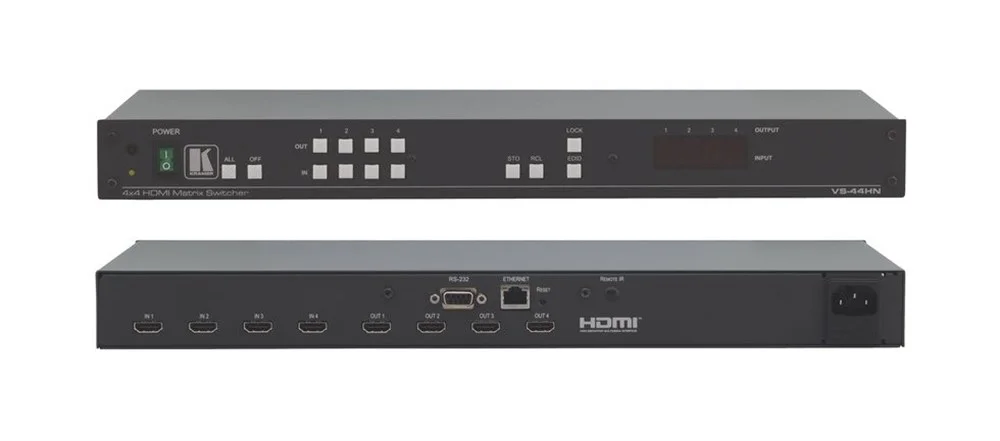

Kramer Vs-44Hn 4X4 Hdmi Matrix Switcher

Name: Kramer Vs-44Hn 4X4 Hdmi Matrix Switcher
Brand: KRAMER
SKU: Kramer Vs-44Hn

SKU: Kramer Vs-44Hn

Bu ürün proje / teklif kapsamındadır. Online fiyat gösterilmez — fiyat için teklif isteyin.

Paylaş:

Açıklama

The VS−44HN is a high−performance matrix switcher for HDMI signals. It reclocks and equalizes the signal and can route any input to any or all outputs simultaneously.

Maximum Data Rate - 6.75Gbps (2.25Gbps per graphic channel).
HDTV Compatible.
HDMI Support - Deep Color, x.v.Color™, up to 7.1 Uncompressed Audio Channels.
3D Pass-Through.
HDCP Compliant.
Fast Switching Technology - Reduces switching delay between DVI/HDMI sources.
Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
Support for Protocol 2000 and Protocol 3000.
Front Panel Lockout.
Output Disconnect - Each output.
Memory Locations - Store multiple switches as presets (salvos) to be recalled and executed when needed.
Flexible Control Options - Front panel, IR Remote, RS−232 (K−Router™ Windows®−based software is included) & Ethernet (Windows®−based Ethernet Configuration Manager & Virtual Serial Port Manager is included).

INPUTS:	4 HDMI connectors.
OUTPUTS:	4 HDMI connectors.
BANDWIDTH:	Up to 6.75Gbps data rate (2.25Gbps per graphic channel).
COMPLIANCE WITH HDMI STANDARD:	HDMI and HDCP.
RESOLUTION:	Up to UXGA; 1080p.
POWER CONSUMPTION:	100−240V AC, 50/60Hz, 21VA.
CONTROLS:	Front panel buttons, infrared remote control transmitter, RS−232, Ethernet.
OPERATING TEMPERATURE:	0° to +40°C (32° to 104°F).
STORAGE TEMPERATURE:	−40° to +70°C (−40° to 158°F).
HUMIDITY:	10% to 90%, RHL non−condensing.
DIMENSIONS:	19” x 7.24” x 1U (W, D, H).
WEIGHT:	1.6kg (3.53lbs) approx.
ACCESSORIES:	Power cord, IR transmitter, rack ”ears”.
OPTIONS:	External remote IR receiver cable.
