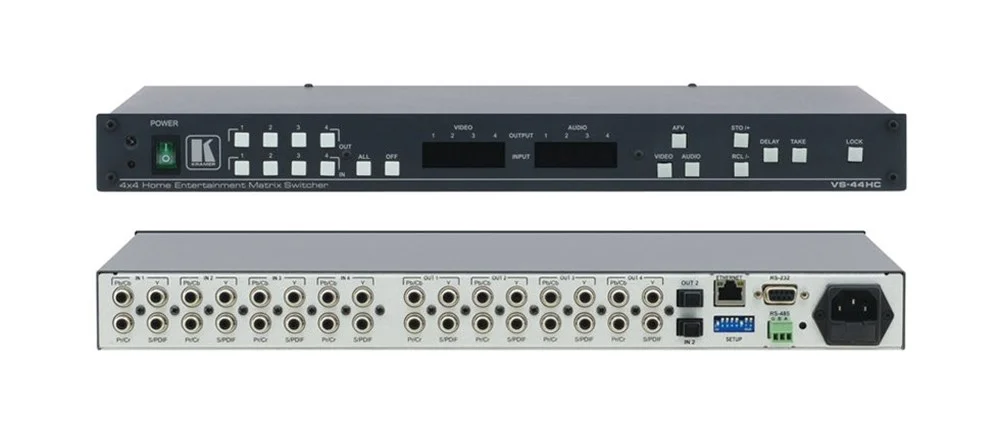

Kramer Vs-44Hc 4X4 Component Video & Dijital Audio Matrix Switcher

Name: Kramer Vs-44Hc 4X4 Component Video & Dijital Audio Matrix Switcher
Brand: KRAMER
SKU: Kramer Vs-44Hc

SKU: Kramer Vs-44Hc

Bu ürün proje / teklif kapsamındadır. Online fiyat gösterilmez — fiyat için teklif isteyin.

Paylaş:

Açıklama

The VS−44HC is a high−performance matrix switcher for component video and S/PDIF audio signals. Designed primarily for home entertainment applications, it can route any or all inputs to any or all outputs simultaneously.

High Bandwidth - 200MHz (−3dB).
HDTV Compatible.
TOSLINK® Audio Capability - Audio input 2 can accept either S/PDIF or TOSLINK® audio (selected via DIP−switches). If selected, both S/PDIF and TOSLINK® audio will be simultaneously available on audio output 2.
Sampling Rates - Up to 192kHz.
Programmable Audio Delay - Up to 999ms (depending on sample rate).
Audio Breakaway Switching.
Memory Locations - Stores multiple switches as presets (salvos) to be recalled and executed as needed.
Take Button - Executes multiple switches all at once.
Flexible Control Options - Front panel, RS−485, RS−232 (K−Router™ Windows®−based software is included), Ethernet, IR remote (included).
Front Panel Lockout.

VIDEO INPUTS:	4 sets of component video (Y, Pb/Cb, Pr/Cr) 1Vpp, 0.7Vpp, 0.7Vpp/75Ω on RCA connectors.
VIDEO OUTPUTS:	4 sets of component video (Y, Pb/Cb, Pr/Cr) 1Vpp, 0.7Vpp, 0.7Vpp/75Ω on RCA connectors.
VIDEO MAX. OUTPUT LEVEL:	2.3Vpp.
VIDEO BANDWIDTH (-3dB):	200MHz, fully loaded.
VIDEO DIFF. GAIN:	0.08%.
VIDEO DIFF. PHASE:	0.77Deg.
VIDEO K-FACTOR:	<0.05%.
VIDEO S/N RATIO:	73dB weighted.
VIDEO CROSSTALK (all hostile):	−53dB @5MHz.
VIDEO COUPLING:	DC.
AUDIO INPUTS:	4 S/PDIF digital audio, on RCA connectors; 1 TOSLINK® optical.
AUDIO OUTPUTS:	4 S/PDIF digital audio, on RCA connectors; 1 TOSLINK® optical.
S/PDIF SAMPLE RATE:	Up to 192kHz.
AUDIO RESOLUTION:	Up to 24 bits.
JITTER:	<1.5ns (50Hz to 100kHz) without delay, <3.5ns (50Hz to 100kHz) with delay.
MAXIMUM DELAY TIME FOR CHANNEL 2:	32kHz – 999ms; 44.1kHz – 720ms; 48kHz – 680ms; 96kHz – 340ms.
DELAY RESOLUTION:	1ms.
CONTROLS:	Front panel buttons, Ethernet, RS−232, RS−485, IR remote control.
INDICATORS:	2 4−character displays on the front panel.
POWER CONSUMPTION:	100−240V AC, 50/60Hz; 16VA.
DIMENSIONS:	19" x 7" x 1U W, D, H, rack mountable.
WEIGHT:	2.7kg (6lbs) approx.
ACCESSORIES:	Power cord, null−modem adapter, Windows®−based Kramer control software, Windows®−based Ethernet Configuration Manager and Virtual Serial Port Manager, Infra−red remote control transmitter.
