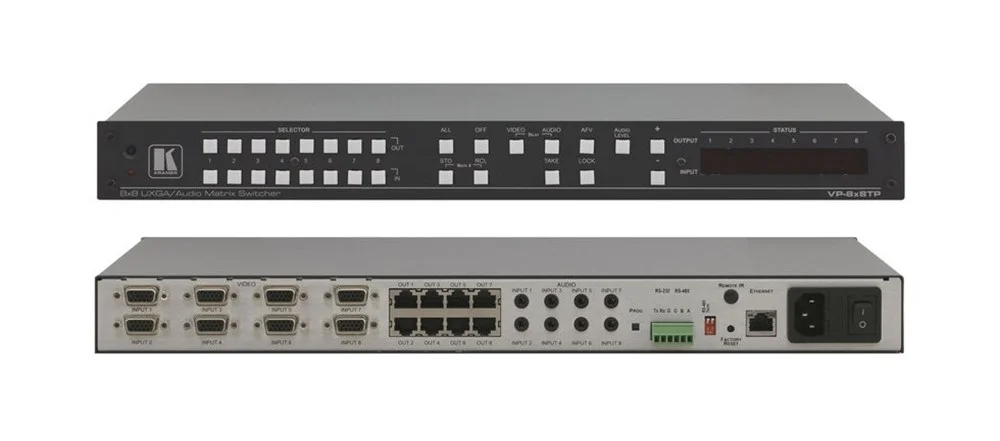

Kramer Vp8X8Tp Vga/Uxga Matrix Switcher

Name: Kramer Vp8X8Tp Vga/Uxga Matrix Switcher
Brand: KRAMER
SKU: Kramer Vp8X8Tp

SKU: Kramer Vp8X8Tp

Bu ürün proje / teklif kapsamındadır. Online fiyat gösterilmez — fiyat için teklif isteyin.

Paylaş:

Açıklama

The VP−8x8TP is a high−performance matrix switcher for computer graphics video and stereo audio signals. The unit routes any or all inputs to any or all twisted pair outputs. A compatible twisted pair receiver converts each output signal back to the original input formats.

High Resolution - Up to UXGA/1080p.
HDTV Compatible.
Active Input Indication™ Reporting - Each input button on the front panel automatically lights when the unit detects a video signal on that input. When an input is selected for switching, the button changes to a different color to indicate it is the active input.
Delayed Switching™ - Up to a 3.5s (user selectable) delay for clean switching.
Kr-isp® Advanced Sync Processing - Ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform. Kr−isp® advanced sync processing can be enabled or disabled.
Power Connect™ Feature - A single connection to the transmitter (only) powers both units when the devices are within 150ft (50m) of each other.
Configurable EDID - For each input, via RS−232.
Take Button - Executes multiple switches all at once.
Memory Locations - Stores multiple switches as presets to be recalled and executed when needed.
Audio Breakaway Switching.
System Range - Over 100m (330ft) transmission range between the switcher and the TP receiver.
Audio Level Controls - For adjusting the signal level of each input.
Front Panel Lockout.
Flexible Control Options - Front panel, RS−232 and RS−485 (using Kramer Protocols 2000 and 3000), IR remote and optional extension cable, Ethernet with built in Web server.

INPUTS:	8 computer graphics on 15−pin HD connectors (VGA through UXGA); 8 unbalanced stereo audio on 3.5mm mini jacks.
OUTPUTS:	8 RJ−45 connectors.
MAX. OUTPUT LEVEL:	Video: 1.9Vpp; Audio: 3Vpp.
RESOLUTION:	Up to UXGA, 1080p.
AUDIO BANDWIDTH:	18kHz (−3dB).
DIFF. GAIN:	1.8%.
DIFF. PHASE:	0.3Deg.
K-FACTOR:	<0.05%.
S/N RATIO:	Video: 60dB @5MHz; Audio: 81dB @1kHz.
CROSSTALK (all hostile):	Video: –46dB @5MHz; Audio: <–72dB @1kHz.
CONTROLS:	Front panel buttons, RS−232, RS−485, Ethernet, infrared.
COUPLING:	Video/audio: AC.
AUDIO THD + NOISE:	0.035% @1kHz.
AUDIO 2nd HARMONIC:	0.002% @1kHz.
TRANSMISSION RANGE:	>100m (330ft).
OPERATING TEMPERATURE:	0° to +40°C (32° to 104°F).
STORAGE TEMPERATURE:	−40° to +70°C (−40° to 158°F).
HUMIDITY:	10% to 90%, RHL non−condensing.
POWER CONSUMPTION:	100−240V AC, 68VA.
DIMENSIONS:	19" x 7.5" x 1U (48.3cm x 19cm x 1U) W, D, H.
WEIGHT:	2.6kg (5.7lbs) approx.
ACCESSORIES:	Power cord, Windows® based control software, external remote IR receiver cable, rack "ears".
