Kramer Vp-8X8 Vga Matrix Switcher

Name: Kramer Vp-8X8 Vga Matrix Switcher
Brand: KRAMER
SKU: Kramer Vp-8X8

SKU: Kramer Vp-8X8

Bu ürün proje / teklif kapsamındadır. Online fiyat gösterilmez — fiyat için teklif isteyin.

Paylaş:

Açıklama

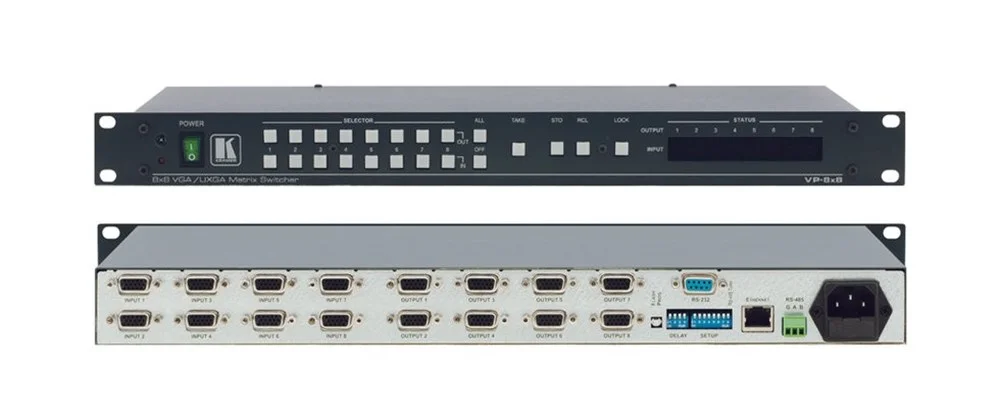

The VP−8x8 is a high−performance matrix switcher for computer graphics video signals, with resolutions up to and exceeding UXGA on 15−pin HD connectors. It can route any or all inputs to any or all outputs simultaneously.

High Bandwidth - 400MHz (−3dB) fully loaded.
HDTV Compatible.
Active Input Indication™ Reporting - Each input button on the front panel automatically lights up when the unit detects a video signal on that input. When an input is selected to be switched, the button changes to a different color to indicate it is the active input.
Delayed Switching™ - Up to a 4sec (user selectable) delay for clean switching.
Flexible Control - Front panel, RS−232 (K−Router™ Windows®−based Kramer software is included), RS−485, Ethernet & IR remote (included).
Front Panel Control Lockout.
Take Button - Executes multiple switches all at once.
Memory Locations - Stores multiple switches as presets to be recalled and executed when needed.
Standard 19” Rack Mount Size - 1U.

INPUT:	8 VGA on 15−pin HD connectors (VGA through UXGA).
OUTPUTS:	8 VGA on 15−pin HD connectors (VGA through UXGA).
MAX. OUTPUT LEVEL:	1.5Vpp.
BANDWIDTH (-3dB):	400MHz.
DIFF. GAIN:	0.04%.
DIFF. PHASE:	0.04Deg.
K-FACTOR:	<0.05%.
S/N RATIO:	75dB.
CROSSTALK (all hostile):	–53dB.
COUPLING:	DC
CONTROLS:	22 front panel buttons, RS−232, RS−485, Ethernet.
INDICATORS:	8−character display on the front panel.
POWER CONSUMPTION:	100−240V AC, 50/60Hz; 23VA.
DIMENSIONS:	19" x 7" x 1U (W, D, H) rack mountable.
WEIGHT:	2.7kg (6lbs) approx.
ACCESSORIES:	Power cord, null−modem adapter, Windows®−based Kramer control software, RC−IR3 infrared remote control transmitter.
