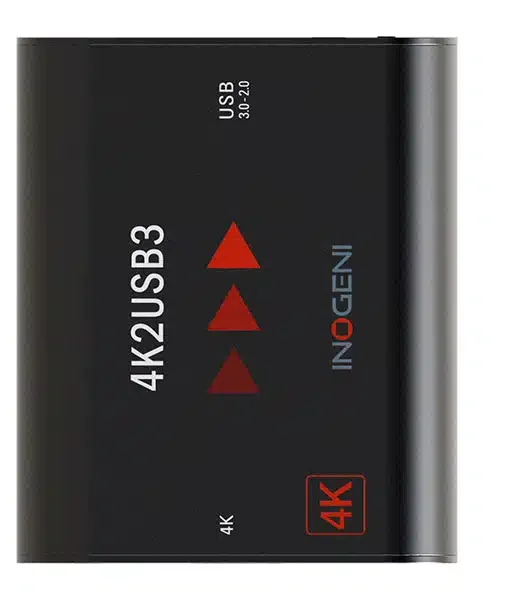

INOGENI 4K HDMI to USB 3.0 Video Capture Card

KEY FEATURES INOGENI 4K2USB3

• HDMI capture to USB 3.0
• Direct Show Compatible
• Supports Ultra HD 4K, 1440p, 1080p, 1080i, 720p, 480p, and 576p video formats
• Supports 1920×1200, 1280×1024, 1280×960, 1024×768, 800×600, 640×480 graphic formats
• Up to Ultra HD 4K (3840/4096×2160) at 30 fps and 1080p at 60 fps
• HDMI audio support – embedded audio in the HDMI signals are extracted and output as two-channel LPCM
• Digital Fluid technology – Internal frame buffers maximize frame rate with any PC
• Hardware-based color space and sampling conversion
• Automatic scaling and frame rate conversion (UHD up-scaling not supported)
• Customizable video processing functions
• Image controls: Brightness, contrast, saturation and hue settings. These controls work on all formats below 4K but not 4K
• Supports multiple devices on the same PC
• Powered from USB 3.0 port
• Compatible with Windows, Mac OSX, Linux and Android
• A USB 3.0 cable is included
• NO driver installation necessary

SPECIFICATIONS INOGENI 4K2USB3 4K to USB3.0 Converter



Input
Connector	1 x HDMI 1.4a
Video Resolution	4K UHD (3840/4096×2160),1440p, 1080p, 720p, 1080i, 480p, 576p, 1920×1200, 1280×1024, 1280×960,1280×800, 1024×768, 800×600, 640×480
Frame Rates	60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz for all resolutions, except 4K = 30Hz max.
Color Space	RGB, YCbCr, 4:4:4, and 4:2:2 (4K=RGB)
Sampling Rate	297 MHz
Embedded Audio	Ch 1&2 48kHz LPCM
HDCP Copy Protection	INOGENI will not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources.
Output
Connector	1 x USB 3.0
Codec	YUY2 4:2:2 and NV12/I420/YV12 4:2:0 for USB 3.0 MJPEG for USB 2.0* *Devices having serial numbers >= 4K2037XXX will support MJPEG over USB 2.0. Otherwise, it will be uncompressed video.
Video Scaler	Automatic hardware based
Color Space Conversion	Automatic hardware based
Sampling Conversion	Automatic hardware based
Frame Rate Conversion	Automatic hardware based
Audio	2-channel LPCM audio from HDMI
General
Software Compatibility	UVC-compliant. Runs with all software compatible to DirectShow/MediaFoundation, V4L2, QuickTime and AVFoundation.
Dimensions & Weight	3.2” x 2.9” x 0.75” 120g
Operating Temperature	0° to 45° C
USB Power	5V, 580 mA
Origin	Canada

SOFTWARE COMPATIBILITY

Tested Applications

Recording / Editing Adobe Live Encoder Camtasia Debut Elements GUBCView LUVCView MATLAB MEncoder MPlayer OBS Presentations2Go ProPresenter QuickTime qV4L2 ScreenFlow SONY Vegas Pro 13 VLC VirtualDub VideoGlide VIDBlaster Wirecast vMixStreaming Justin.tv Livestream OBS Ustream Wirecast xSplit vMix YouTubeVideoconferencing BlueJeans Cisco Jabber FaceTime GotoMeeting Hangout HipChat Lync 2010/2013 Skype Webex Zoom

INCLUDED BY DEFAULT

• Inogeni 4K2USB3
• USB3.0 Cable
