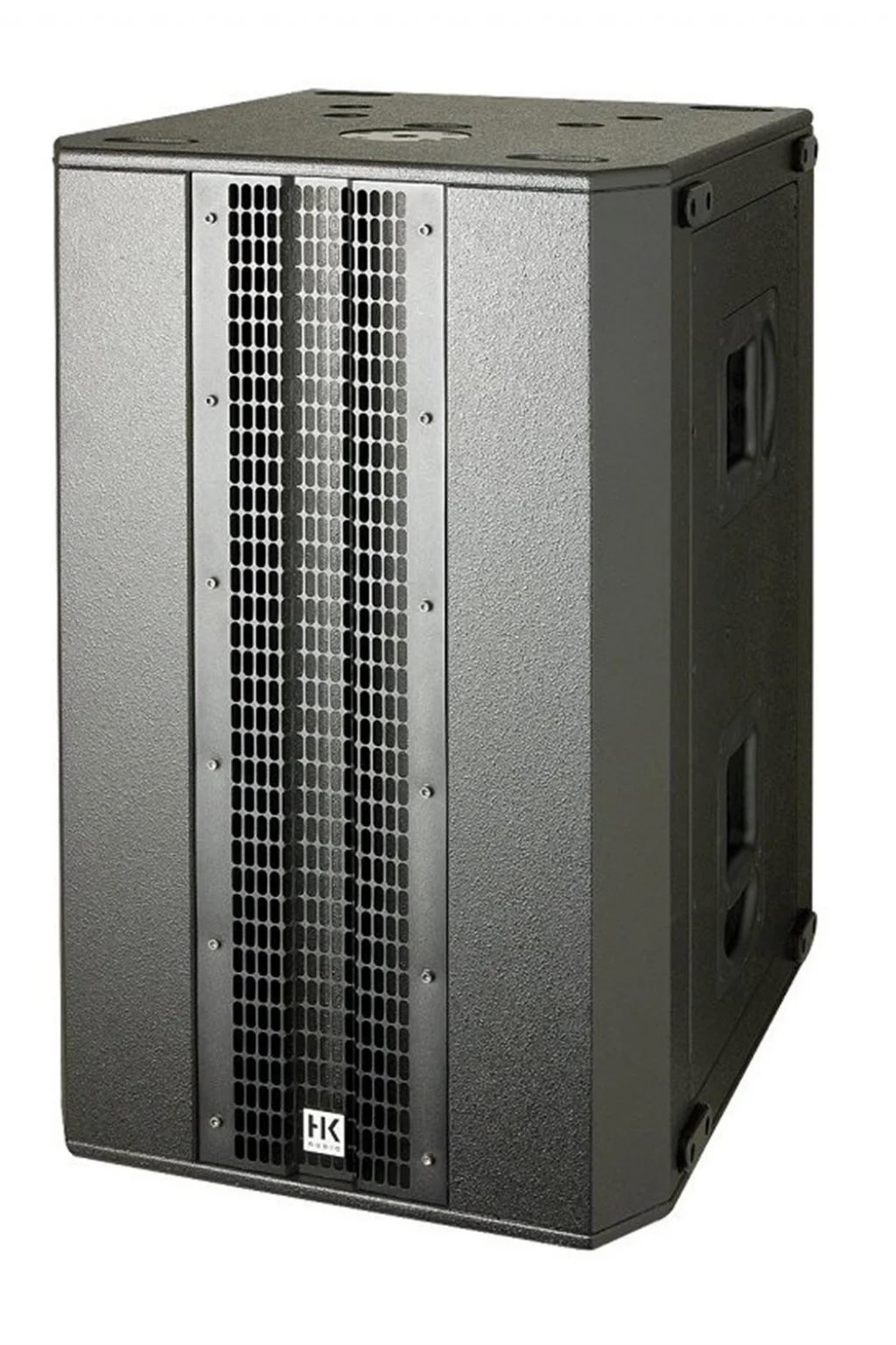

HK Audio SUB 1200 A 2x10" Aktif Subwoofer 1200W

This compact and light woofer comes in a bass reflex enclosure. It is ideal for band PAs. The powered version sports a remarkably efficient 1,200 watt, Class-D power amp that can also drive a connected passive L Sub 1200. Loaded with two remarkably responsive 10 woofers, it delivers tight, snappy bass with a lot punch ranging all the way down to around 45 Hz.



Model	L Sub 1200 A
Max SPL calculated	129 dB half space
Max SPL peak	128 dB half space
Cut-off Frequency active	110Hz / 130Hz variable with 24 dB/Oktave
Max SPL	126 dB half space
Power Rating	1200 Watt
Frequency response +/- 3 dB	55 Hz - X-Over
Frequency response -10 dB	38 Hz - X-Over
subwoofer amplifier	1200 Watt @ 4 Ohm
Active protectiion circuits	Undervoltage-Protection, Thermoprotection, Short-Circuit Protection, Overcurrent-Protection
Input Sensitivity	+4dBu @ Gain Centerclick
Protection	Subsonic 24dB/Oktave, Peak Limiter
Connections	2 x XLR- Combi IN, 2 x XLR-Thru, 2 x XLR-Mid/High Out, Speakon NL4 to L Sub 1200
LF Speaker	2 x 10" (4 Ohm) mit 2,5" voice coil featuring Advanced-Cooling-Technologie
Subsonic filter	yes
Peak limiter	yes
Amplifier	Class D
Pole mount	2 x M20
Handles	4 integrated
Optional accessories	Protective Cover, 100mm Blue Wheels, Tilt Unit
Enclosure	Birch multiplex 15/18 mm, 9/13 ply
Grille	2mm metal grille
Finish	Acrylic enamel, black
Dimensions (WxHxD)	38 x 67 x 56 cm
Weight	30,7 kg / 67,7 lbs
