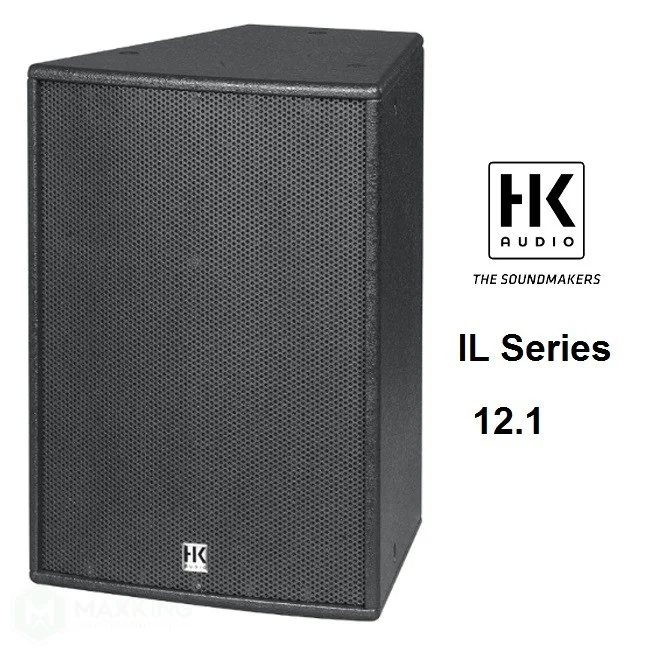

Hk Audio IL 12.1 Black 12" Pasif Hoparlör 600W/prg 131 Db

Hk Audio IL12.1 12" Pasif Hoparlör 300/1200 Watt 131 dB

A two-way, fullrange cabinet geared for high-quality voice and music reinforcement in theaters, pubs, sports arenas and multipurpose halls, clubs, etc., the IL 12.1 may be deployed as a fullrange or mid/ high unit in combination with
the IL 115 Sub, IL 118 Sub or IL 218 Sub subwoofers.





Model	IL 12.1
Q-Factor	9.68
Product Class	Install Sound
Power-handling nominal (RMS)	300 W
Power-handling, peak	1200 W
Power-handling, program	600 W
Frequency response +/- 3 dB	83 Hz - 19 kHz
Frequency response -10 dB	67 Hz - 19 kHz
Nominal impedance	8 Ohm
Sensitivity 1W	104 dB
Maximum SPL, @ 10% THD	131 dB
Maximum SPL, 1W/1m (@ 3% THD)	125 dB
Connections	1x Speakon NL 4 and 1x binding posts
LF Speaker	12"
HF Driver	1" exit throat
Horn characteristics	60° x 40° (90° x 60°)
Directivity	8.40 dB
Crossover frequency	2 kHz, 12 dB / Oct.
Rigging points	a total of 12x M10 threaded bits for attaching mounting accessories
Enclosure	MDF 16 mm
Grille	impact-resistant protective steel grille
Finish	black or white acrylic enamel
Dimensions (WxHxD)	42 cm x 59 cm x 41 cm
Weight	22 kg / 48.5 lbs.
