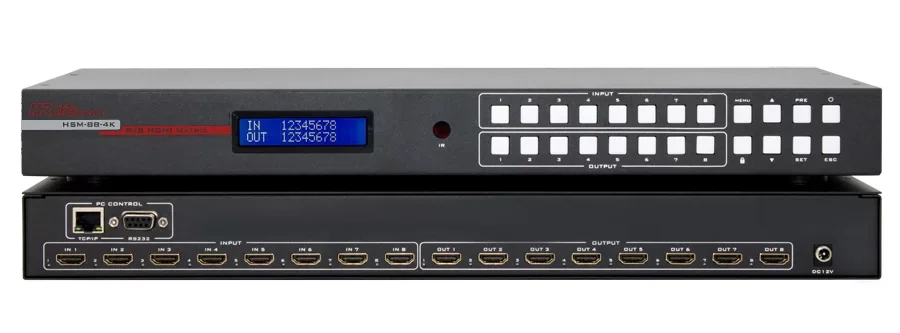

Hall Technologies HSM-88-4K 4K 8X8 HDMI Matrix Switch with IR, RS-232, and IP Control

• Supports 4K UHD resolution
• HDCP 2.2 and HDCP 1.4 compliant
• Fast-Switch™ technology
• RS232, IP, IR and intuitive front panel control
• Two-line character LCD on front panel for status indication
• Uses Hall Technologies Genesis™ Control Command Set (GCCS)

• Supports 4K UHD resolution
• HDCP 2.2 and HDCP 1.4 compliant
• Fast-Switch™ technology
• RS232, IP, IR and intuitive front panel control
• Two-line character LCD on front panel for status indication
• Uses Hall Technologies Genesis™ Control Command Set (GCCS)
• Supports HDTV resolutions of 4K @60 Hz 4:2:0, 4K @30Hz 4:4:4, 1080P@120Hz, 1080P 3D@60Hz and PC resolutions to WUXGA
• Supports Deep Color 48/36/30/24-bit

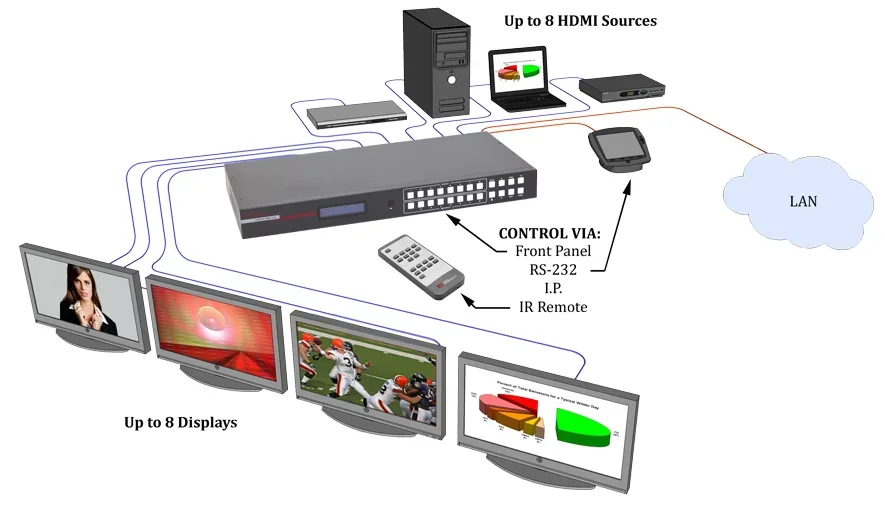

• Allows any source to be displayed on multiple displays at the same time
• Save and Recall Presets of commonly used routing patterns
• HDMI video output can be blanked or un-blanked
• Controlled via: Front Panel, RS232, IP (Telnet), and IR
• 1U rack mountable metal enclosure

Paket içeriği

(x1) Model HSM-88-4K
(x1) 12VDC @2.5A Evrensel Güç Kaynağı

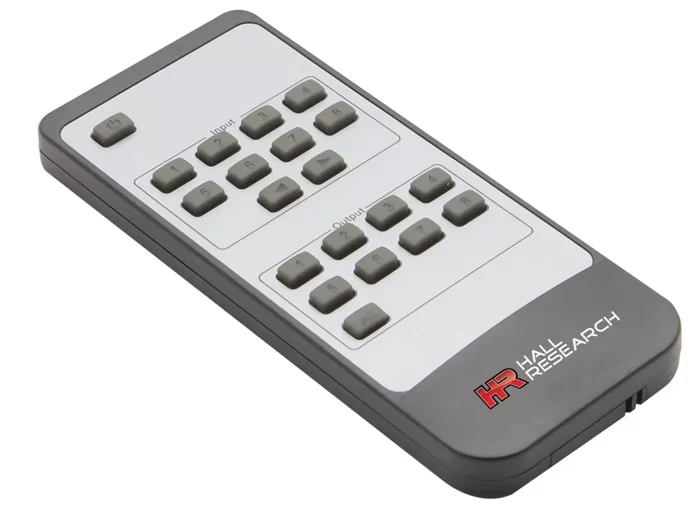

(x1) IR Uzak
(x1) Raf montaj braketleri (2 adet)
(x1) RS-232 Kablosu
(x1) Kullanıcı Kılavuzu
