GUIL ELC740 5,10 mt Yükseklik, 150 Kg. Kapasiteli Truss Lifti

Maximum height: 5.10 m (16.73 ft) / Maximum load capacity: 150 kg (331 lb)

Ref. ELC-740

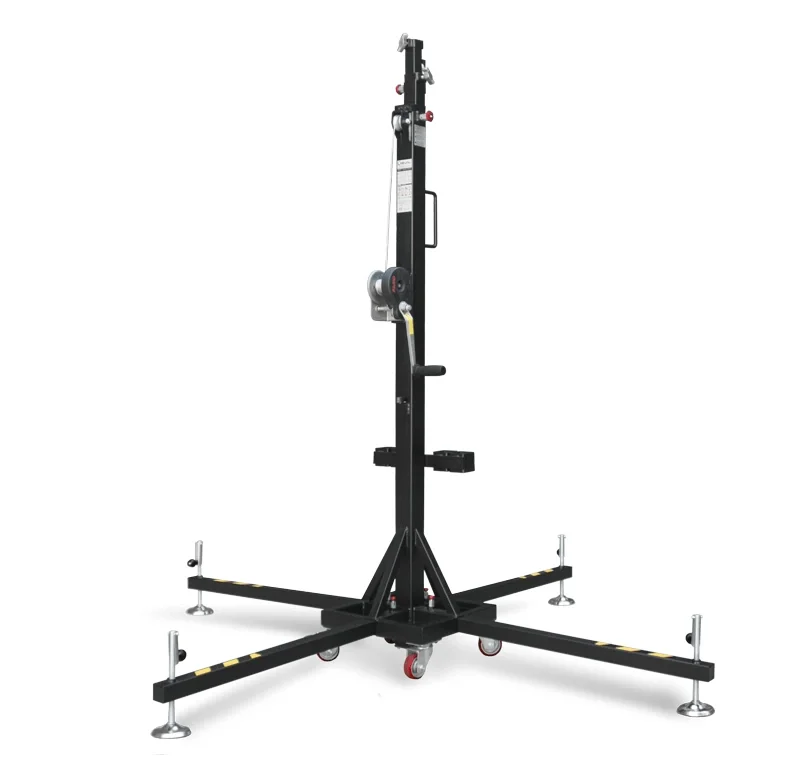

Telescopic lifting tower specially certified to lift loads of up to 150 kg (16.73 ft) to a maximum height of 5.20 metres (331 lb).

SPECIFICATIONS	ELC-740
Maximum Height	5.10 m I 16.73 ft
Maximum Load	150 kg I 331 lb
Safety System	ASB System (Automatic Safety Blocking System)
Brake Winch	AL-KO 450 (450 kg)
Wheels	Secured to the base with 4 fixing points
Folded Dimensions	Height: 2.00 m I 6.56 ft – Base: 41 x 41 cm I 1.35 x 1.35 ft
Material	Steel
Complies with Standards	DGUV 17 & 18, DGUV Rule 115-002 (Formerly BGV-C1)
	DIN EN 17206 (Replaces DIN 56950-1), 2006/42/CE
Net Weight	46 kg I 101 lb
Adaptors	Ø 35 mm I Ø 0.11 ft
