*** gelmiyor *** Mackie DLM12S

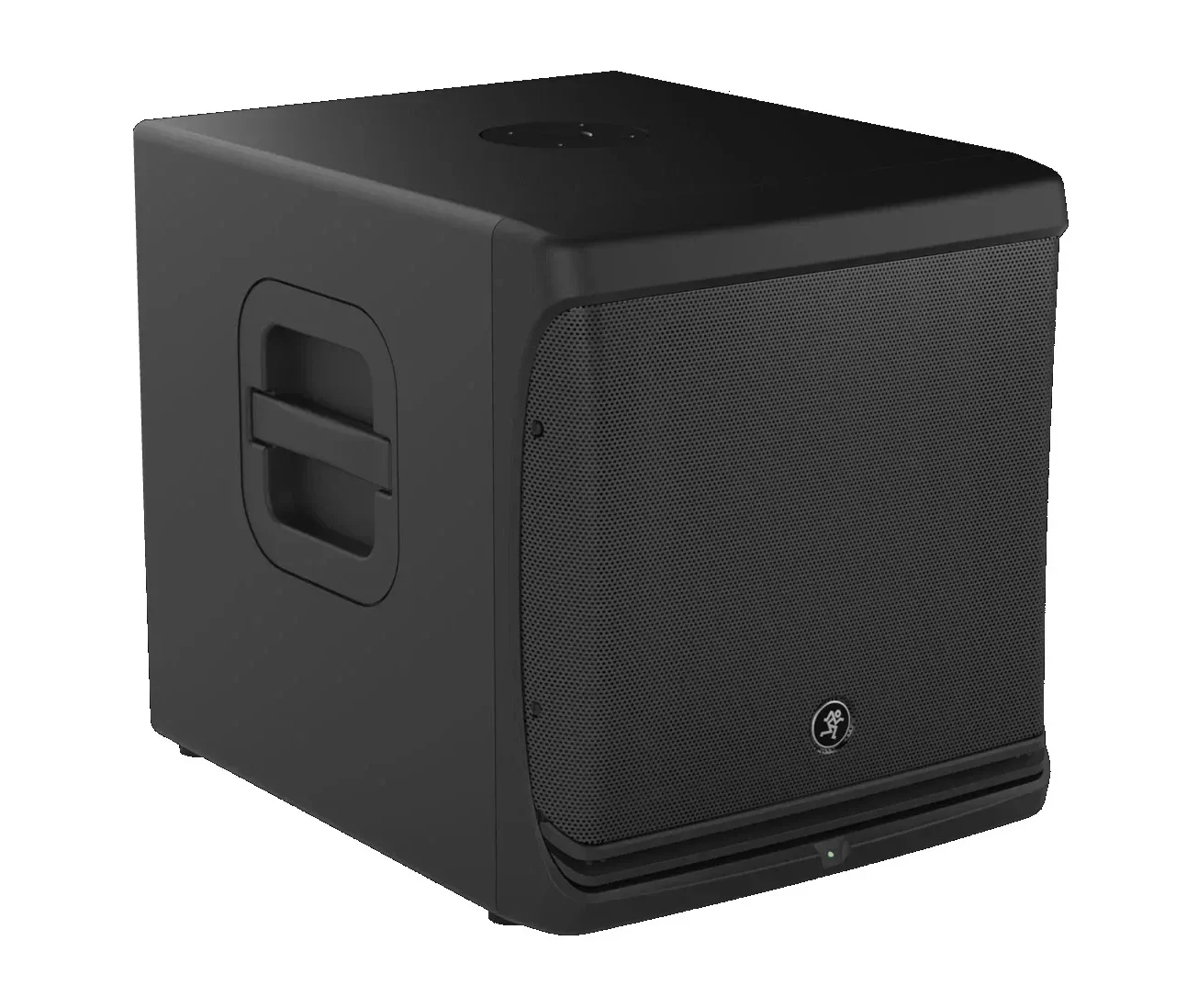

Mackie DLM12S 12" Aktif Subwoofer



The Mackie DLM12S Powered 12" Subwoofer packs a great deal of power for a compact subwoofer. It delivers up to 1,000W program and 2,000W peak power into a heat-treated 12" woofer with a 3" voice coil. Its frequency response extends down to 35Hz, with a variable low-pass crossover from 90 to 135Hz.
The connection panel of the DLM12S features left and right XLR balanced inputs as well as a set of full-range outputs and a set of high-pass outputs. The construction of the DLM12S includes a pole-mount cup for a Mackie DLM8 or DLM12 full-range speaker.

• Class D 1,000W RMS Powered Subwoofer
• 2,000W Peak Power
• Generates up to 128dB SPL
• Frequency Response Down to 35 Hz
• DLP Digital Processor
• Precision Digital Variable Crossover
• Flexible Connectivity
• Compact Design and Durable Construction



Input / Output
Active or Passive	Active, Class-D amplification
Audio Inputs	2 x XLR balanced (1 x L/R)
Input Impedances	20kΩ balanced 10kΩ unbalanced
Audio Outputs	2 x XLR balanced - Full Range Outputs (1 x L/R) parallel with input 2 x XLR balanced - High Pass Outputs (1 x L/R)

Amplifier / Speaker
Transducer	12" (305 mm) woofer diameter 3" (76 mm) voice coil diameter Paper diaphragm material Ferrite magnet material
Rated Power	1,000W RMS 2,000W peak
THD	< 1%
Cooling	Multi-speed fan

Performance
Frequency Response	35 Hz to 90 Hz or 35 Hz to 135 Hz, (-10 dB) user-selectable
Maximum Sound Pressure Level (SPL)	128 dB @ 1 m, calculated
Crossover Point	60 to 120 Hz, user-selectable
System Processor	DLP Digital System Processing: Volume [VOL]: Off (-∞ dB) to +10 dB Crossover [XVR]: Four preset modes, one variable mode Delay [DLY]: 0 to 300 ms Memory [MEM]: 3 locations for instant venue setting recall and factory reset

General
Construction	Durable 0.6" (15 mm) poplar cabinet Black paint finish Handle on each side Powder-coated 20-gauge steel grille
Power Requirements	100 to 120VAC or 220 to 240VAC, 50/60 Hz, 250W
AC Plug Style	3-pin IEC 250VAC
Operating Temperature Range	32 to 104°F (0 to 40°C)
Dimensions (H x W x D)	17.9 x 16.4 x 20.8" (455 x 417 x 529 mm)
Weight	48 lb (21.7 kg)
