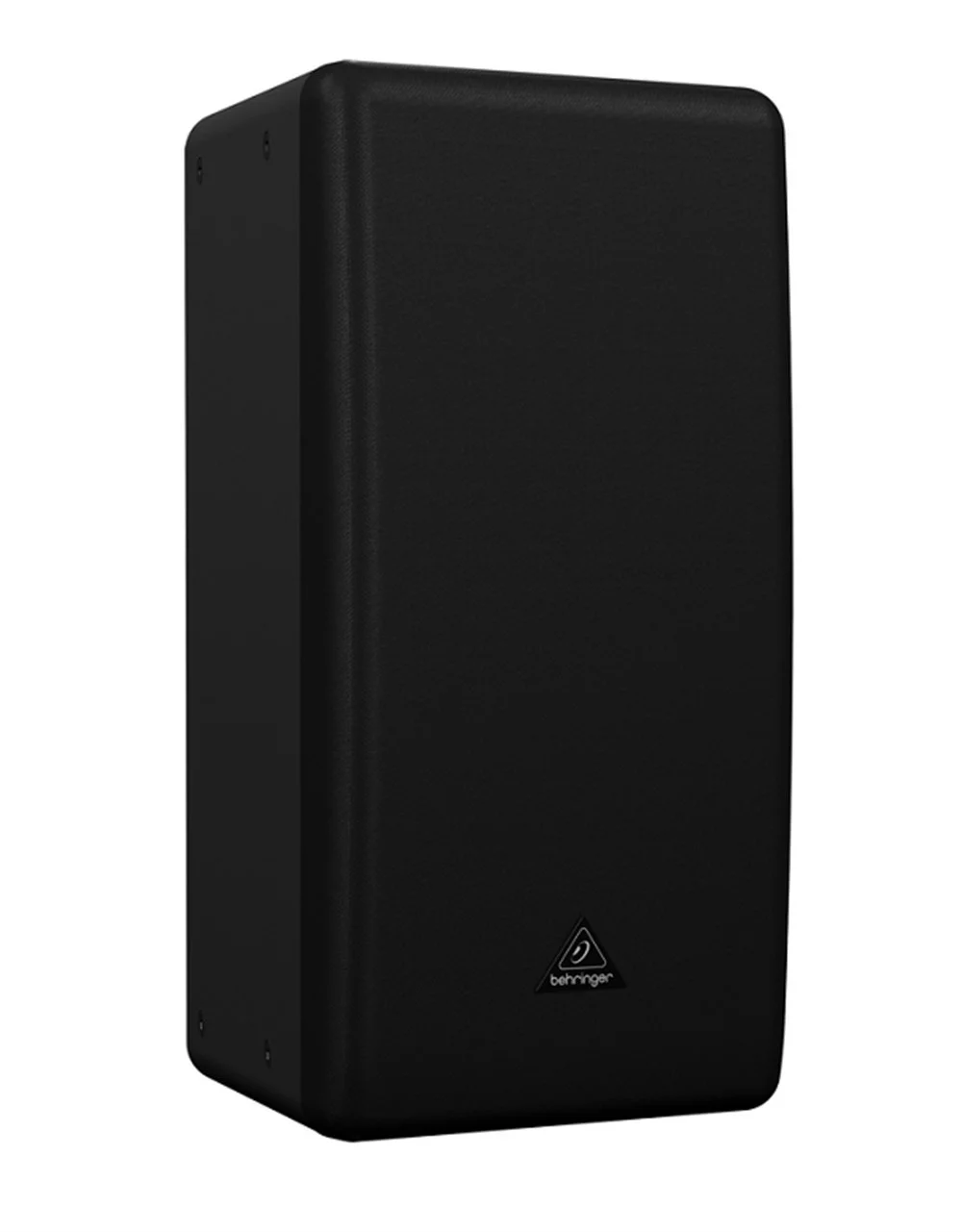

EUROCOM CL2296 12" 2-yollu Pasif Hoparlör

The black EUROCOM CL2296 Loudspeaker from Behringer features a 12" woofer and a 1.35" high-frequency driver. They are designed to provide an even response across the audible spectrum with a continuous sound pressure level (SPL) handling of 119 dB. It can be used in a variety of venues that require fixed speaker installations such as theaters, auditoriums, houses of worship, themed entertainment venues, and sporting venues or for fill and delay systems in large rooms.

The CL2296 has a rotatable waveguide with a 90° by 60° coverage pattern, which allows you to change the speaker orientation from vertical to horizontal. The passive crossover can be bypassed for operation in a bi-amped configuration.

Speakers	1x 12.0" (304.8 mm) woofer 1x 1.35" (34.29 mm) high-frequency driver
Horn Waveguide	90º H x 60º V HF, rotatable
Inputs	2x NL4 Speakon connectors 1x 4-position terminal strip
Frequency Range	41 Hz to 20 kHz (@ -10 dB)
Frequency Response	46 Hz to 18 kHz (+/- 3 dB)
Crossover	Mode: Bypassable Frequency: 2 kHz
Maximum SPL	Continuous: 119 dB Peak: 125 dB
Sensitivity	96 dB (1 W @ 1 m)
Power Handling	200 W RMS @ 40 V Low Frequency Driver: 250 W High Frequency Driver: 30 W
Impedance	8 Ω
Directivity	Factor: 8.7 (Q) Index: 9.4 dB
Dispersion	90º H x 60º V (Nominal)
Overload Protection	Full range power limiting to protect drivers and crossovers
Enclosure	Trapezoidal 15° side angle
Construction	Laminated birch plywood Steel grille
Rigging Points	23 x M10 threaded points 4 x M8 threaded inserts for OmniMount 60 series
Dimensions (H x W x D)	29.5 x 15.4 x 16.9" (74.9 x 39.0 x 42.9 cm)
Weight	55.2 lb (25.1 kg)
