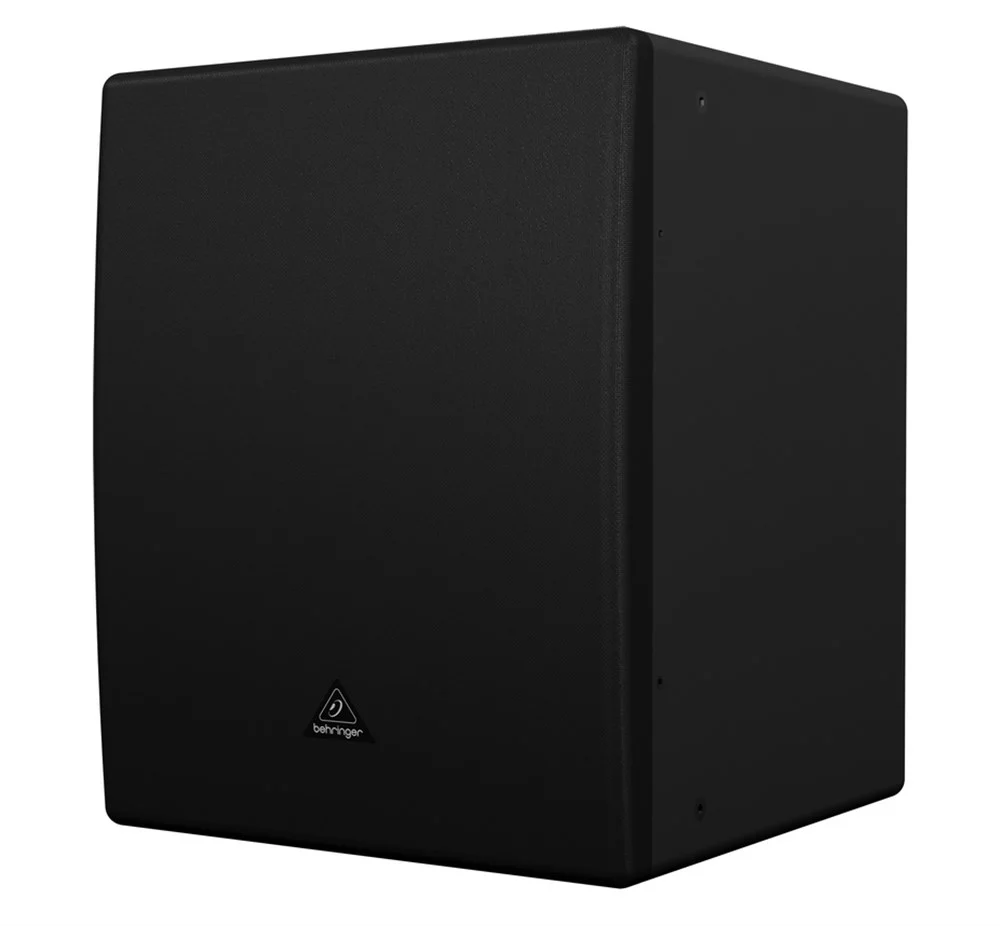

EUROCOM CL118S 18" Pasif Subwoofer

The CL118S High-Power 400W rms, 800W program, 1600W Peak Subwoofer System from Behringer is an 18” (457.2mm),low impedance system designed for delivering deep, powerful lows in mid- to large-sized spaces. Suitable for a variety of professional fixed installation applications, this system can be used in venues such as places of worship, auditoriums, clubs, sports venues, and theaters.

Compact yet powerful, the Subwoofer System features clean lines and a fabric-finished, wrap-around grille for a refined appearance that complements elegant rooms. The modular design allows deployment individually, in pairs, or in large, low-frequency arrays, making it easy to tailor systems to the specific requirements of the venue. It is housed in a rectangular enclosure of acoustically inert durable, high-quality laminated Baltic birch plywood and finished in black. Thanks to the precision-engineered design, this subwoofer delivers enhanced sonic performance, matching the acoustical output and anticipated configurations of loudspeaker systems, and is designed to fit virtually any environment. Also, the refined aesthetic design compliments the most sophisticated interior spaces.

The CL118S Subwoofer system has metric threaded inserts for safe suspension using a variety of brackets and forged eyebolts (sold separately). Internal steel bracing enhances the cabinet s natural rigidity and provides a set of integrated, threaded mounting-point inserts. Furthermore, with a rated load factor of at least 10 times, the overall cabinet weight makes this subwoofer system a safe choice for flown installations.

The CL118S Subwoofer System achieves fully professional performance and reliability with its components whose frequency response, sensitivity, and power handling are custom tailored to suit most loudspeakers. It accurately reproduces low-end material for a clean, full sound. A built-in passive crossover maximizes flexibility by band-splitting the output of a single amplifier channel to power both the subwoofer and a full-range loudspeaker (sold separately). Every aspect of this subwoofer system has been thought through to maximize value and convenience for both the installer and the end user. The result is an attractive, durable subwoofer system that delivers deep, satisfying low-end for any installation application.

Frequency Range	29 Hz to 200 Hz (-10 dB)
Frequency Response	32 Hz to 130 Hz (±3 dB)
Sensitivity	99 dB, 1 W at 3.2 (1 m),1/2 space
Power Capacity	Modes: Bypassable
Crossover Frequency	200 Hz
Power Handling	400 W rms at 56.6 V (long term, IEC passive) 800 W prg. 1600 W Peak
SPL	Maximum Continuous: 125 dB at 3.2 (1 m) Maximum Peak: 131 dB at 3.2 (1 m)
Transducer	8 Ω
Low Frequency Driver	Low Frequency Driver: 18.0" (457.2 mm) at 400 W
Enclosure	Rectangle, laminated birch plywood
Grille	Steel
Rigging Points	16 X M10 threaded rigging points
Termination	NL4 and 4-position terminal strip connection
Dimensions (H x W x D)	26.6 x 21.7 x 22.1" (675.6 x 551.1 x 561.3 mm)
Weight	86 lb (39 kg)
