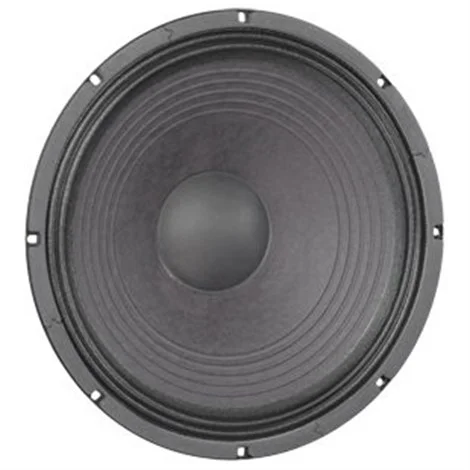

Eminence Delta 15Lf Subwoofer Hoparlör, 15" 500W, 42 Hz- 3,2 Khz

Name: Eminence Delta 15Lf Subwoofer Hoparlör, 15" 500W, 42 Hz- 3,2 Khz
Brand: Eminence
SKU: Eminence DELTA 15 LF
Price: 9652.5 TRY
Availability: OutOfStock

SKU: Eminence DELTA 15 LF

₺9.652,50

KDV dahil · %20 KDV

Stoğumuzda yok

Şimdi Satın Al

Gelince haber ver

Bu ürün yeniden stoğa girdiğinde e-posta ile bilgilendirilirsiniz.

Paylaş:

Açıklama

Specification
Nominal Basket Diameter	15", 381mm
Nominal Impedance*	8 ohms
Power Rating**
Watts	500W
Music Program	1000W
Resonance	39Hz
Usable Frequency Range	42Hz - 3.2kHz
Sensitivity***	96dB
Magnet Weight	56 oz.
Gap Height	0.37", 9.53mm
Voice Coil Diameter	2.5", 63.5mm
Thiele & Small Parameters
Resonant Frequency (fs)	39Hz
DC Resistance (Re)	6.11
Coil Inductance (Le)	1.37mH
Mechanical Q (Qms)	6.3
Electromagnetic Q (Qes)	0.52
Total Q (Qts)	0.48
Compliance Equivalent Volume (Vas)	241 liters / 8.51 cu.ft.
Peak Diaphragm Displacement Volume (Vd)	419cc
Mechanical Compliance of Suspension (Cms)	0.23mm/N
BL Product (BL)	14.6 T-M
Diaphragm Mass Inc. Airload (MMs)	75 grams
Efficiency Bandwidth Product (EBP)	75
Maximum Linear Excursion (Xmax)	4.8mm
Surface Area of Cone (Sd)	873 cm2
Maximum Mechanical Limit (Xlim)	16.5mm
Mounting Information
Recommended Enclosure Volume
Sealed	36.8-42.5 liters / 1.3-1.5 cu.ft.
Vented	85-167 liters / 3-5.9 cu.ft.
Driver Volume Displaced	220.8 cu.in. / 3.62 liters
Overall Diameter	15.15", 384.8mm
Baffle Hole Diameter	13.87", 352.3mm
Front Sealing Gasket	Fitted as standard
Rear Sealing Gasket	Fitted as standard
Mounting Holes Diameter	0.25", 6.4mm
Mounting Holes B.C.D.	14.56", 369.9mm
Depth	6.3", 160mm
Net Weight	12.8 lbs, 5.8 kg
Shipping Weight	14.8 lbs, 6.7 kgs
Materials of Construction
Coil Construction	Copper voice coil
Coil Former	Polyimide former
Magnet Composition	Ferrite magnet
Core Details	Vented and extended core

Basket Materials	Pressed steel basket
Cone Composition	Paper cone
Cone Edge Composition	Cloth cone edge
Dust Cap Composition	Solid composition paper dust cap
