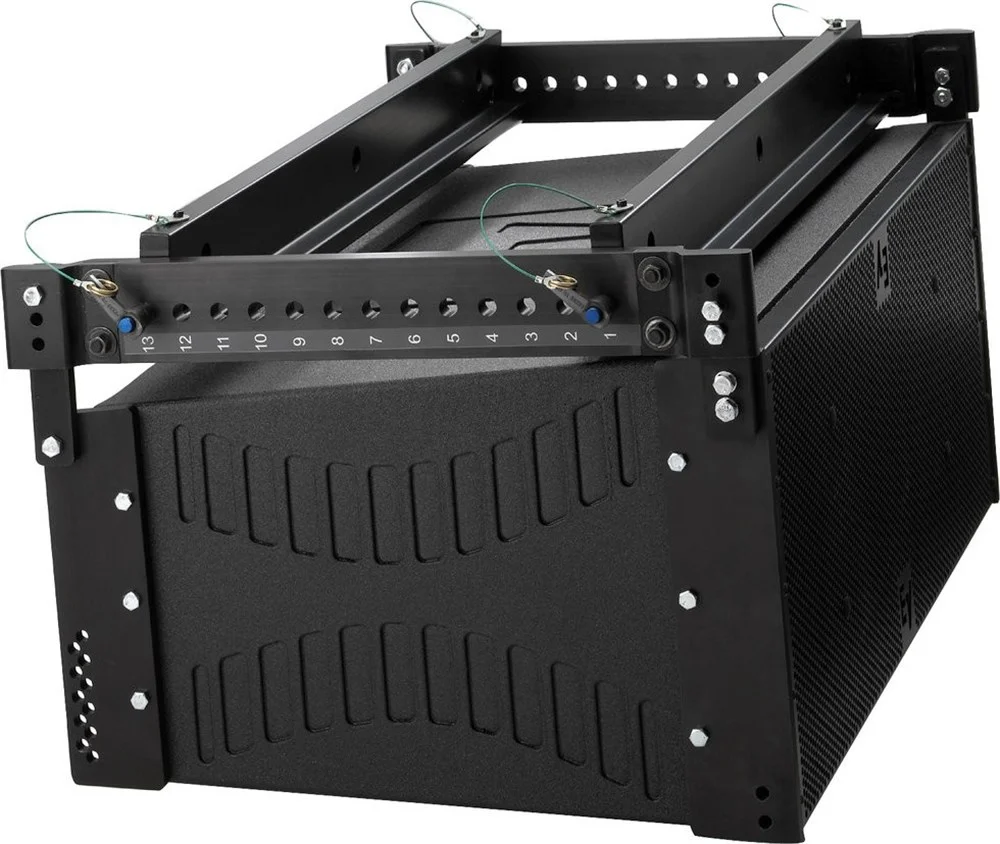

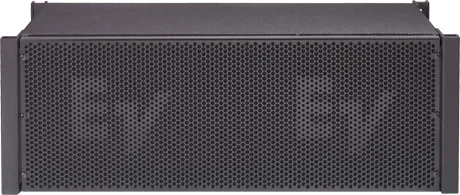

Electro-Voice XLD 281 XLD fullrange cabinet, 2x8", 2xND2, biamp or triamp mode switchable, 120° H / 10° V, integrated rigging system

• Full-bandwidth, three-way element (60 Hz - 20 kHz)
• CCT (Coverage Control Technology)
• Versatile subwoofer integration
• Bi-amp or tri-amp Operation
• Neodymium transducers
• Simple, quick, integrated rigging
• Supported by LAPS II aiming and flying software

Technicial Specifications


SPECIFICATIONS

Frequency Response (-3 dB)	75 Hz-18 kHz¹
Frequency Range (-10 db)	60 Hz-20 kHz¹
Max Calculated SPL	137 dB Cont., 143 dB Peak²
SPECIFICATIONS

Horizontal Coverage	120°
Vertical Coverage	Array Dependant, Software Definable
Rigging	Fully Captive Aluminum, 1° increments, 16 elements with 8 to 1 Safety Factor
LF1 Power Handling	200W Cont., 800W Peak
LF2 Power Handling	200W Cont., 800W Peak
HF Power Handling	80W Cont., 320W Peak
Biamp LF1/HF Power Handling	200W Cont., 800W Peak LF2 - 200W Cont., 800W Peak
Bandpass Frequency	50 - 250 Hz³
LF1 to HF Crossover Frequency	1760 Hz³
LF 1 Passband	1 x 8 inch DVN2080, 16 ohms
LF2 Passband	1 x 8 inch DVN2080, 16 ohms
HF Passband	2 x ND2S-8, 16 ohms
Biamp LF1/HF Passband	16 ohms
Connectors	2 x NL8
Enclosure	13-ply birch plywood with EVCoat
Grille	Galvannealed steel with powder coat paint
Environmental Specifications	IEC 529 IP24, MIL 810
Dimensions (H x W x D)	9.9 in x 28.58 in x 14.52 in (251 mm x 726 mm x 369 mm)
Net Weight	48 lb (21.8 kg)
Shipping Weight	51 lb (23.1 kg)

¹ Full Space Measurement of four (4) elements.
² Full Space Measurement of HF section of four (4) elements, SPL adjusted for 1 m distance.
³ Use EV signal processing or download presets from Electro-Voice website.
