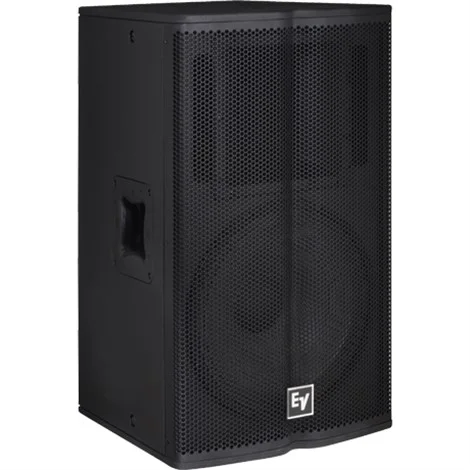

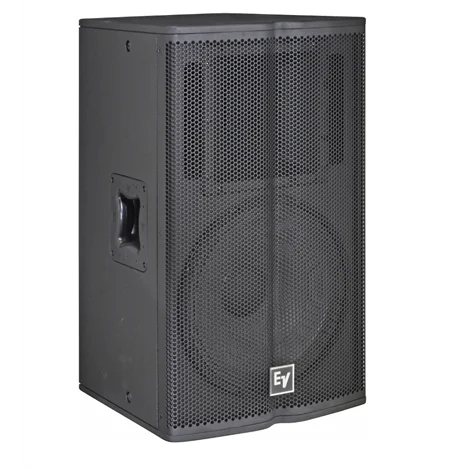

Electro-Voice TX1152 15" Pasif Hoparlör, 1000W 133 Db

Electro-Voice TX1152 15" Passive Speaker, 1000W 133 Db



• High-output, high-quality sound
• Excellent pattern control for medium throw use
• Low-distortion SMX2151 woofer with fully symmetric drive
• 1.25-inch DH3/2010A titanium HF compression driver
• Rotatable Constant-directivity 60º x 40º horn
• Advanced 4th-order crossover with HF protection
• 100 dB sensitivity, 133 dB maximum SPL
• Power handling: 500 W continuous, 2000 W peak
• Lightweight trapezoidal plywood/MDF enclosure
• Pole mount for use with subwoofer or stand
• Six 3/8-inch threaded suspension points
• Black EVCoat™ finish



Color	Black
Input Connections	Parallel Neutrik® NL4
Speaker Type	Full-range
Frequency Response (-3 dB)	65 - 20000 Hz
Frequency Response (-10 dB)	45 - 20000 Hz
Internal Crossover	Yes
Recommended High-Pass Frequency	40 Hz
Sensitivity 1 W/1 m	100 dB
Max. SPL/1m (calc)	133 dB
Coverage (Nominal -6 dB) H	60 °
Coverage (Nominal -6 dB) V	40 °
Rotatable Horn	Yes
System Power Handling (Continuous/Program/Peak)	500//2000 Watts
LF Transducer	15-inch SMX2151
HF Transducer	1.25-inch DH3/2010A
Crossover Frequency	1750 Hz
Nominal Impedance (Passive)	8 Ω
Minimum Impedance	6.2 Ω
Enclosure Material	Plywood and MDF with EVCOAT
Flying	Yes
Suspension	(6) 3/8-inch threaded inserts
Height	475 mm (18.7")
Width	439 mm (17.28")
Depth	655 mm (25.79")
Weight Net	27.6 kg (60.85 lbs)
