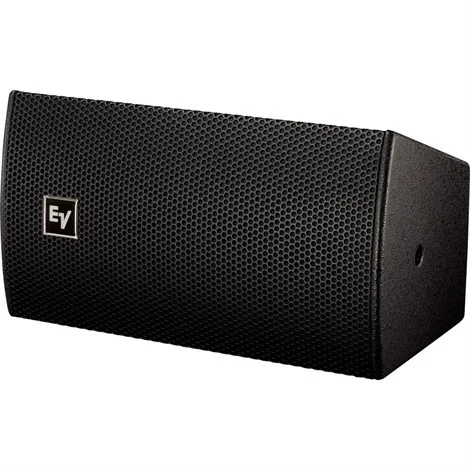

Electro-Voice Evu-1062/95-Blk 6" Pasif Hoparlör, 160/320W/Rms
Electro Voice

Electro-Voice Evu-1062/95-Blk 6" Pasif Hoparlör, 160/320W/Rms

SKU: Electrovoice Evu-1062/95-Blk

Electro-Voice Evu-1062/95-Blk 6" Pasif Hoparlör, 160/320W/Rms

Fiyatı görmek için giriş yapın

Gelince haber ver

Bu ürün yeniden stoğa girdiğinde e-posta ile bilgilendirilirsiniz.

Paylaş:

Açıklama

  • Sonically matched to all EV-Innovation lines
  • Sophisticated 18-dB-octave passive crossover/EQ networks
  • Asymmetrical enclosure for ideal under-balcony and stage-lip aiming
  • Optional Neutrik Speakon(R) connector panel
  • One 1.3-inch (33 mm) diaphragm compression driver
  • U-bracket included
  • Optional 70 V and 100 V operation
  • OmniMount(R)-compatible rear mounting points
  • Available in black or white (interior use)
  • Ultracompact 8 x 14.5 inch enclosure
  • 90º x 50º rotatable waveguide
  • Ultra-high power handling for size: 160 W continuous
  • 120 dB Max SPL
  • Asymmetrical trapezoidal enclosure design
  • Compatible with OmniMount™
  •
Axial Sensitivity (SPL, 1 W @ 1 m) 92 dB
Color Black or white
Finish Textured paint
Nominal Impedance 8 Ω
Waveguide 6 in. x 6 in., rotatable
Frequency Response (-3 dB) 110 - 16000 Hz Half space
Frequency Response (-10 dB) 65 - 20000 Hz Half space
Recommended High-Pass Frequency 90 Hz
Max. SPL/1m (calc) Continuous: 114, Peak: 120 dB
Coverage (Nominal -6 dB) H 90 °
Coverage (Nominal -6 dB) V 50 °
System Power Handling (Continuous/Program/Peak) 160//640 Watts EIA RS-426A (eight hours)
LF Transducer One 6.5-inch (165 mm) ICT-6.5-8 woofer
HF Transducer One 1.3-inch (33 mm) diaphragm ICT-1-8 compression driver
Minimum Impedance 6 Ω
Connector Type 4-pin Phoenix/Euroblock screw terminals (up to 10 AWG wire)
Enclosure Material 9-ply hardwood plywood
Grill 18-gauge steel with cloth behind
Suspension (6) M8 threaded points
Height 209 mm (8.23")
Width 370 mm (14.57")
Depth 207 mm (8.15")
Weight Net 6.53 kg (14.4 lbs)
Shipping Weight 9.12 kg (20.11 lbs)



Özellikler

Teknik Özellikler

Hoparlör Çalışma Yapısı
Pasif
Bas Sürücüsü Çapı
6 inç
Hoparlör Nominal Empedansı
8 Ω
