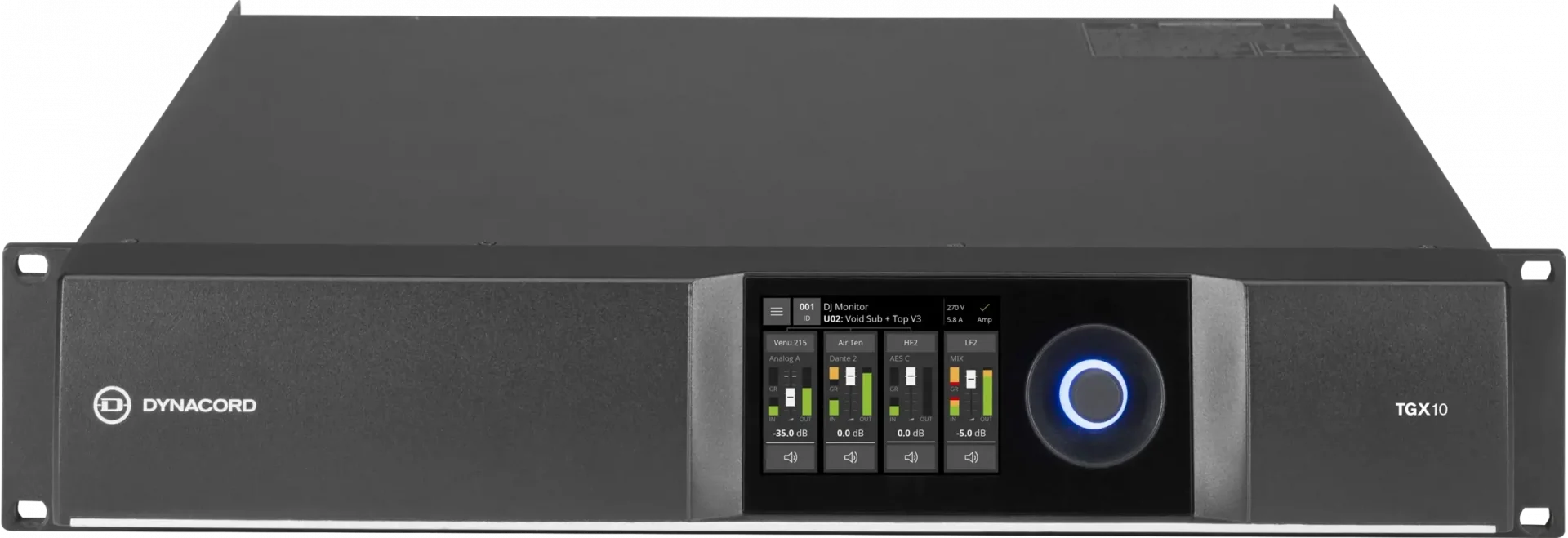

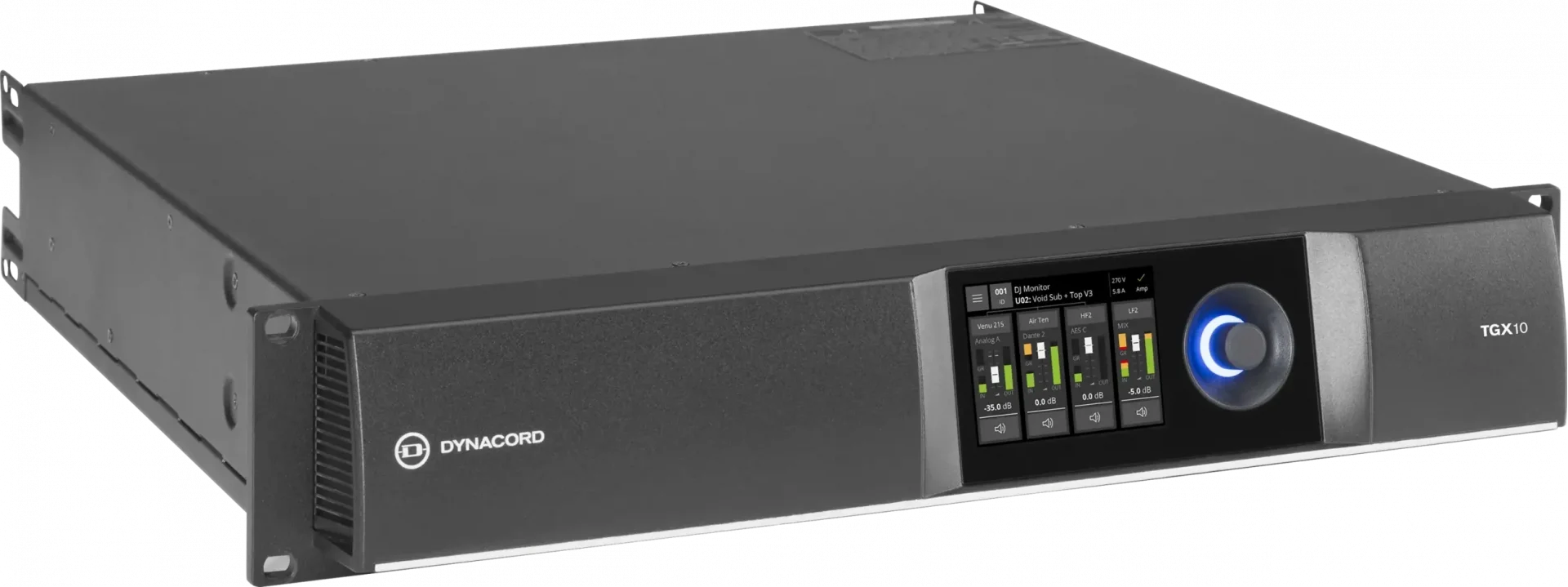

Dynacord TGX10 Digital Amplifier, 4x2500 Watt 4-ohm

The TGX 4-channel live sound amplifiers from Dynacord are among the most powerful you can find on the market, representing the pinnacle of pro audio electronics. In addition to unprecedented power density, they offer the typical Dynacord audio quality, high reliability, and energy efficiency.

Developed and manufactured in Germany, the TGX amplifiers are the ultimate amplifier solution for large live performance sound applications. They incorporate several proprietary amplifier technologies developed by Dynacord Engineering, one of the most experienced research and development teams in the audio industry.

Features

• Configuration : 4-channel

Acoustic Performance

• Frequency Response : 20 Hz to 20 kHz (±0.5 dB)
• THD+N : < 0.05 %
• Crosstalk between channels (dBA) : < -80 dB
• Signal-to-Noise Ratio : 112 dB
• Total Output Power* : 10000 W
• Direct Drive (70V/100V) : No
• Input Sensitivity : 10.7 dBu (2.66 V),adjustable 2.7-18.7 dBu
• Mains input : 1 x Neutrik powerCON-HC
• Power consumption (W) : 1200 W rated, 80W idle/eco, 16 W standby
• Operating Voltage / Power : 100-240 V AC, 50 to 60 Hz
• Max output current/channel : 53 Apk
• Max. output voltage/channel : 150 Vpk
• Output Power* @ 2 Ω, all channels equally driven: 2600 W (all ch driven)
• Output Power* @ 4 Ω, all channels equally driven :2500 W (all ch driven)
• Output Power* @ 8 Ω, all channels equally driven :1250 W (all ch driven)

DSP & Signal Processing

• Channels : 4
• Sampling Rate, Network : 48/96 kHz
• Signal Processing Bit Depth : 32/40 bit, floating point

Signal processing :

• FIR-Drive speaker processing, user and & array control (EQ, level, delay)
• DSP Presets : 1 Factory + 20 User
• DSP : Yes (FIR-Drive)
• DSP Sample Rate :48/96 kHz

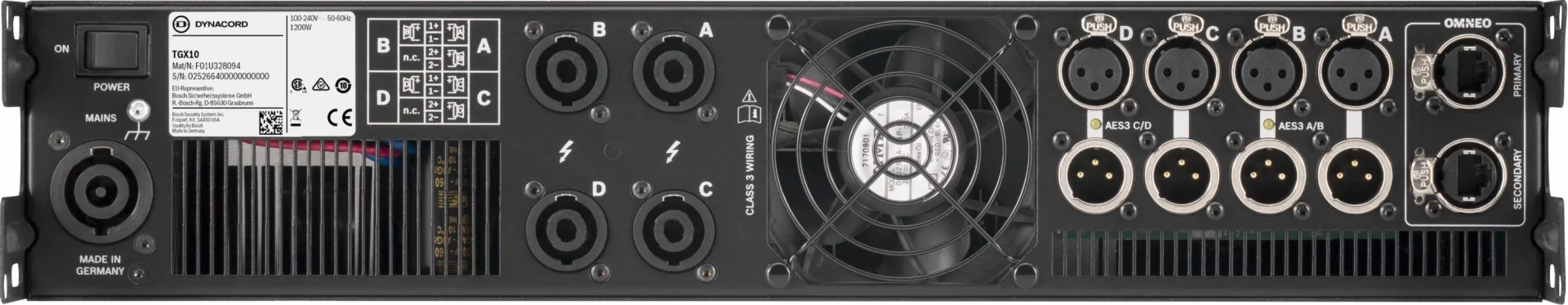

• Connectivity & I/O: XLR, NL4, EtherCon
• Network Protocol : Dante, AES70/OCA
• Analog Inputs : 4
• Digital Inputs : 4 Dante, 4 AES3
• Protection & Environmental
• IEC Protection Class : Class I (grounded)
• Ambient Temperature : +5 °C to +40 °C (+40 °F to +105 °F)
• Color : Black

Cooling

• Front-to-rear, temperature-controlled supervised fans
• Mounting & Rigging
• Rack Units: 2 RU

Dimensions & Weight

• Net weight : 15.0 kg (33.0 lb)
• Shipping Weight : 17.2 kg (37.8 lb)
• Dimensions (H x W x D) (mm) : 88.1 x 483 x 514.2 mm
• Dimensions (Ø x H) (mm) 483 x 88.1 x 514.2
• Identification Series / Family : TGX-SERIES
• Material Number : F.01U.328.094
• Software & apps : SONICUE
