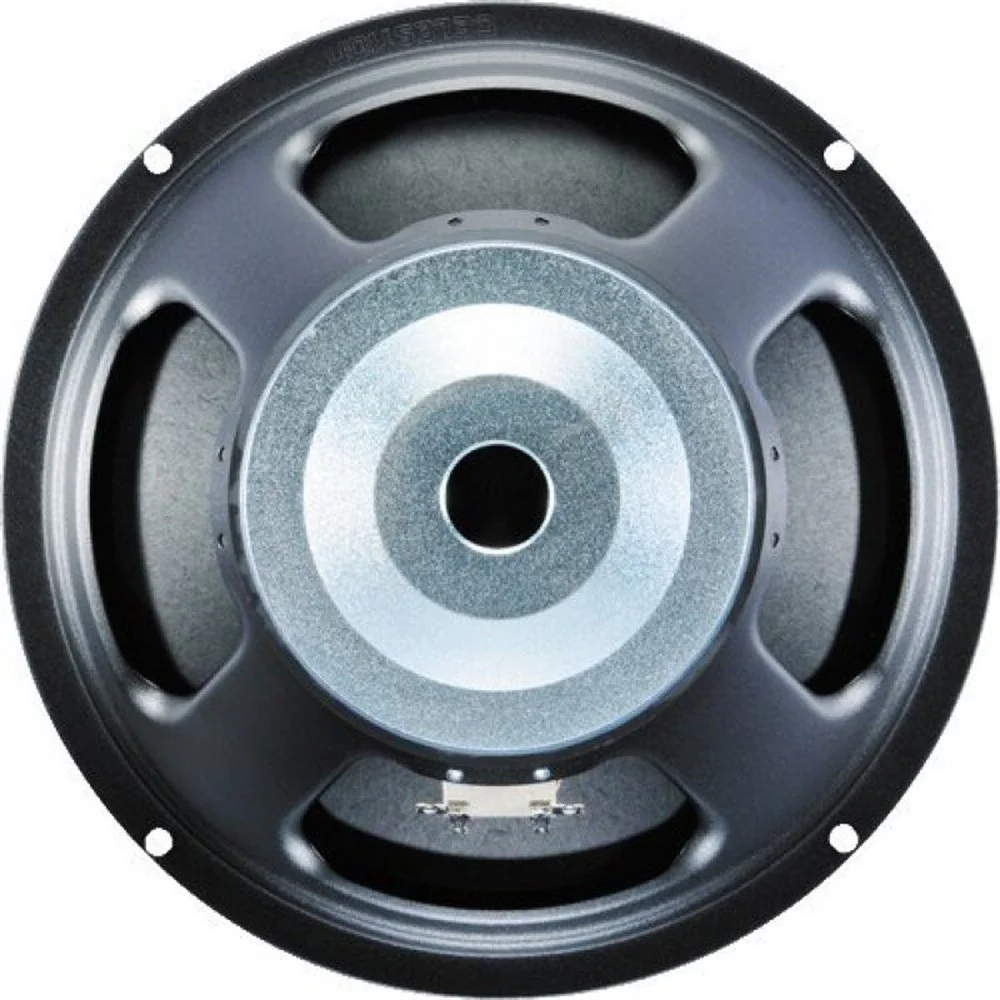

Celestion TF1225 12" 250W/8-ohm Mid Bass Hoparlör
Celestion

Celestion TF1225 12" 250W/8-ohm Mid Bass Hoparlör

SKU: Celestion TF1225

Celestion TF1225 12" 250W/8-ohm Mid Bass Hoparlör

Fiyatı görmek için giriş yapın

Gelince haber ver

Bu ürün yeniden stoğa girdiğinde e-posta ile bilgilendirilirsiniz.

Paylaş:

Açıklama

TF1225

TF1225
TF1225
TF1225


Features

  • 12" Bass and mid-range driver providing 97dB sensitivity and 250Wrms (AES standard) power handling
  • 2.5" high temperature copper voice coil wound on polyimide for increased reliability
  • Optimised ferrite magnet design reduces weight
  • Double roll surround for greater excursion control
  • For use in 2-way or compact 3-way systems



8Ω Frequency Response

Product Graph
  1. Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
  2. Measured on axis at 1W, 1m in 2π anechoic environment.
  3. Xmax derived from: (voice coil winding width-gap depth)/2.



General Specifications

Nominal diameter
305mm/12in
Power rating
250Wrms
Nominal impedance
8Ω
Sensitivity
97dB
Frequency range
50-4000Hz
Voice coil diameter
64mm/2.5in
Chassis type
Pressed steel
Magnet type
Ferrite
Magnet weight
1.2kg/42oz
Coil material
Round copper
Former material
Polyimide
Cone material
Kevlar loaded paper
Surround material
Cloth-sealed
Suspension
Single
Xmax
2.5mm/0.1in
Gap depth
8mm/0.31in
Voice coil winding width
13mm/0.51in

Small Signal Parameters

D
0.26m/10.24in
Fs
63Hz
Mms
46.51g/1.64oz
Mmd
39.60g/1.40oz
Qms
6.70
Qes
0.54
Qts
0.50
Re
5.13Ω
Vas
54.5lt/1.92ft3
BI
13.20Tm
Cms
0.14mm/N
Rms
2.76kg/s
Le (at 1kHz)
0.84mH

Mounting Information

Diameter
309mm/12.17in
Overall depth
130mm/5.12in
Cut-out diameter
283mm/11.14in
Mounting slot dimensions
Ø 7.9/0.31
Number of mounting slots
4
Mounting PCD range
297mm/11.69in
Unit weight
4.1kg/9.0lb

Packed Dimensions & Weight

Single pack size W x D x H
330mm x 330mm x 150mm
/13.0in x 13.0in x 5.9in
Single pack weight
5kg/11lb
Multipack (60) size W x D x H
1080mmx980mmx880mm
/42.5in x 38.6in x 34.6in
Multipack (60) weight
290kg/638lb
