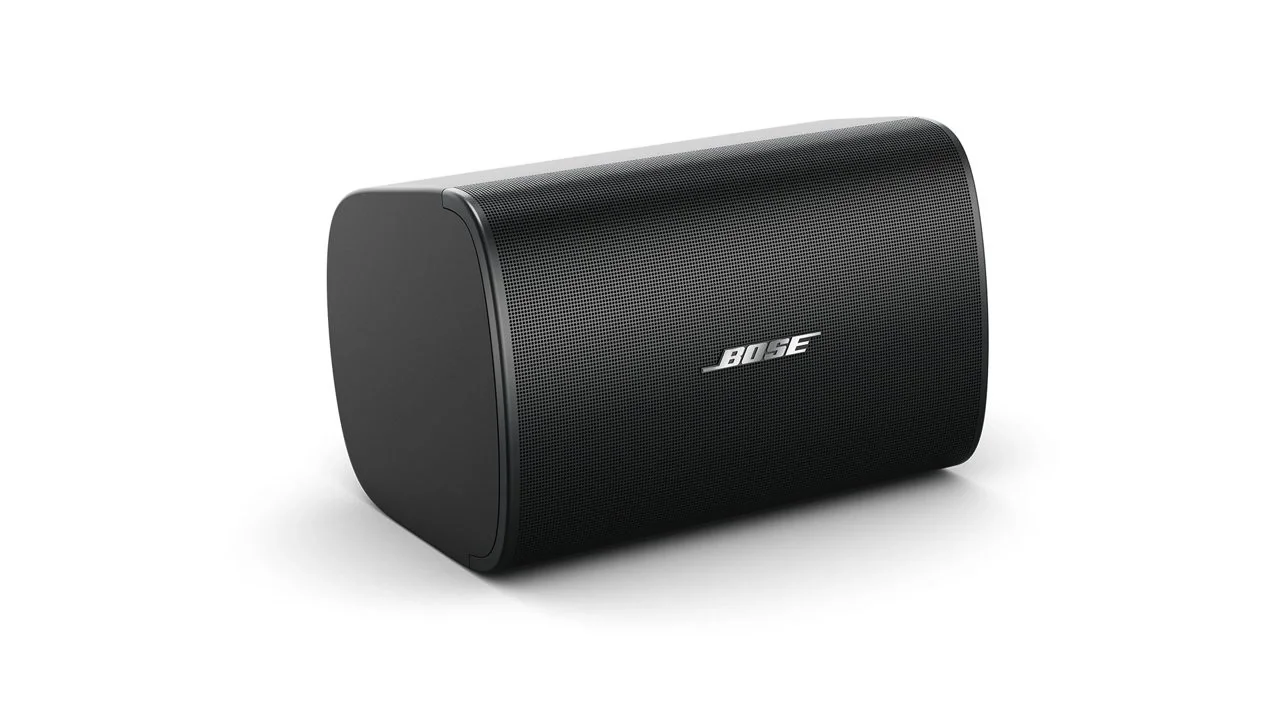

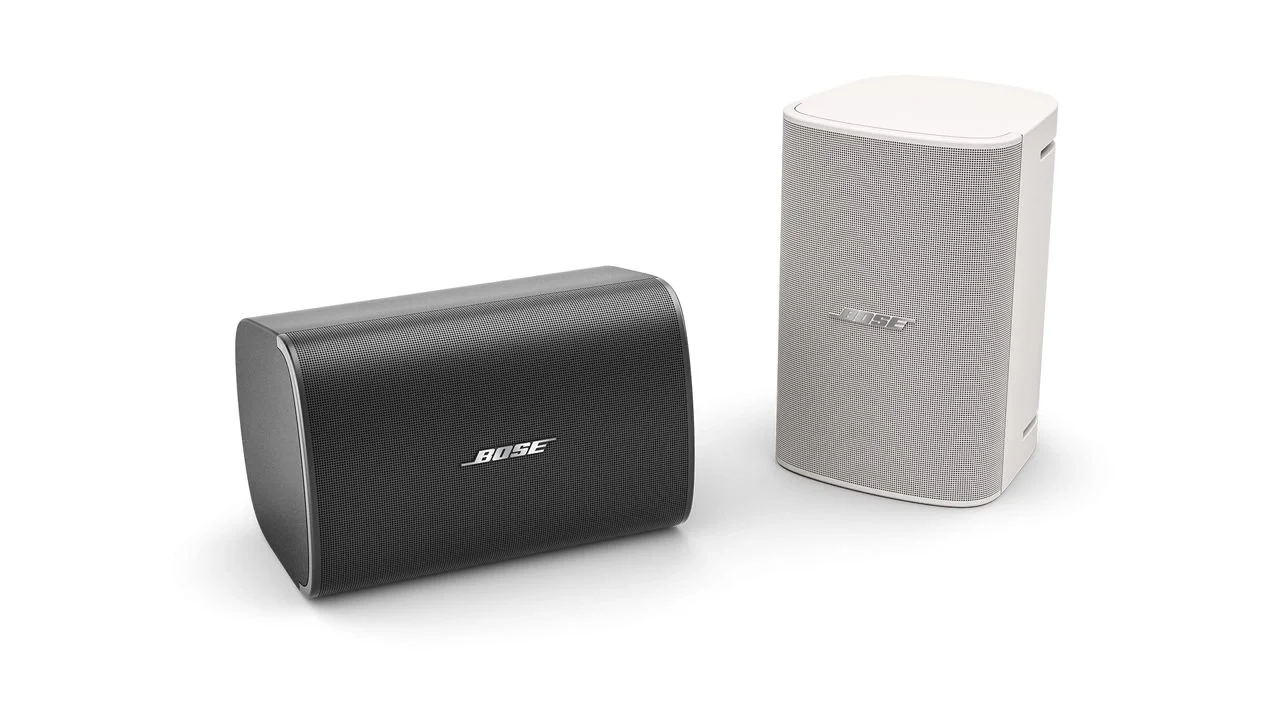

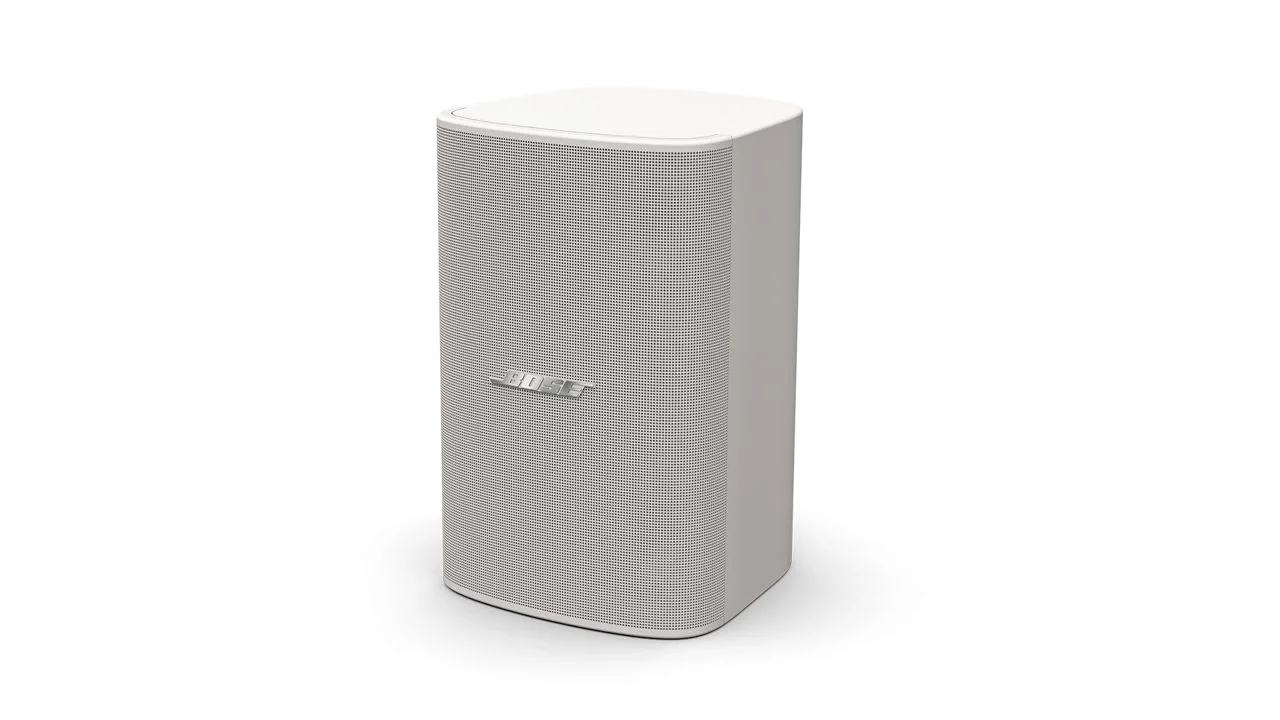

Bose DesignMax DM6SE Nedir ?

IP55 standartlı 6.5" Kasa Yapısına sahip yüksek kaliteli Sıva Üstü Hoparlördür.
100W/rms, 400W/8ohm tepe gücü ve 5/10/20/40/80W/100V Hat trafosu tap seçenekli bağlantı seçeneği ile uygulamalarda geniş kolaylıklar sağlar.




SINGLE LOUDSPEAKER PERFORMANCE
Frequency Response (-3 dB) `"	70 - 20.000 Hz
Frequency Range (-10 dB) to	59 - 20.000 Hz
Nominal Coverage Angle (1 - 4 kHz)	125° conical
Nominal Coverage Angle (1 - 10 kHz)	115° conical
	AES component test 0)	Bose extended-lifecycle test (51
Power Handling, long-term continuous	125 W	100 W
Power Handling, peak	500 W	400 W
Sensitivity (SPL/ 1 W *1 m)(2,	90 dB	90 dB
Calculated Maximum SPL *1 m 0)	111 dB	110 dB
Calculated Maximum SPL zu 1 m. peak	117 dB	116 dB
Crossover	1.7 kHz (passive 2-way crossover)
Loudspeaker EQ	Not Required. Bose EQ voicing and SmartBass processing available
Recommended High-Pass Protection	60 Hz with recommended 24 dB / octave filter
Overload protection	Resistor-network power reduction with automatic reset
Transformer taps	70V: 2.5. 5, 10. 20.40.80W. bypass 100V: 5.10, 20. 40.80 W. bypass
TRANSDUCERS
Low Frequency	1 x 6.5-inch woofer (165 mm). weather treated
High Frequency	1 x 1.25-inch (32 mm) neodymium dome tweeter. coaxially-mounted. weather-treated
Technology	Dispersion Alignment System, 197 mm (7.75 in) system diameter
Nominal Impedance	8 ohms (transformer bypass)
