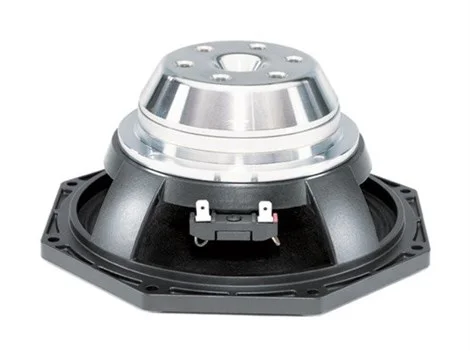

B&C 8-NW 51 8" Neo Mid Hoparlör 200/400W, 2" Bobin, 70 Hz - 3Khz

• 400 W continuous program power capacity
• 50 mm (2 in) copper voice coil
• 70 - 3000 Hz response
• 96.5 dB sensitivity
• Neodymium ring magnet assembly
• Shorting copper cap for extended HF response
• Ventilated voice coil gap for reduced power compression

Nominal diameter

200 mm (8.0 in)

Nominal impedance

8 Ω

Minimum impedance

7.7 Ω

Nominal power handling *

200 W

Continuous power handling *

400 W

Sensitivity (1W/1m) *

97.0 dB

Frequency range

70 - 3000 Hz

Voice coil diameter

51 mm (2.0 in)

Winding material

Copper

Former material

Glass Fibre

Winding depth

19 mm (0.73 in)

Magnetic gap depth

10 mm (0.4 in)

Flux density

1.3 T
