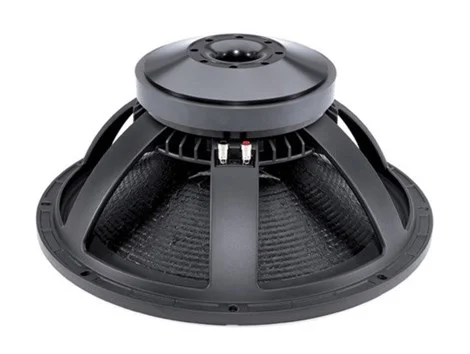

B&C 18-TBX 100 18" Subwooofer 1000/2000W 35-1000 Hz

• 2400 W continuous program power capacity
• 100 mm (4 in) copper voice coil
• 35 - 1000 Hz response
• 97 dB sensitivity
• Aluminium demodulating ring allows a very low distortion figure
• Double silicone spider with optimized compliance
• Ventilated voice coil gap for reduced power compression

Nominal diameter

460 mm (18.0 in)

Nominal impedance

8 Ω

Minimum impedance

6.2 Ω

Nominal power handling *

1200 W

Continuous power handling *

2400 W

Sensitivity (1W/1m) *

97.0 dB

Frequency range

35 - 1000 Hz

Voice coil diameter

100 mm (4.0 in)

Winding material

Copper

Former material

Glass Fibre

Winding depth

25 mm (1.0 in)

Magnetic gap depth

12 mm (0.5 in)

Flux density

1.1 T
