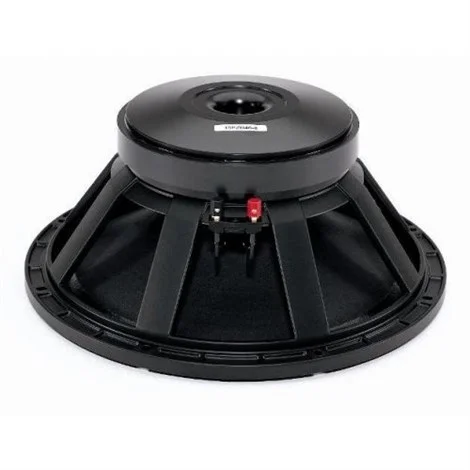

B&C 15-PZB 100 15" Woofer 700/1400W, 40-2000 Hz

• Woofer, 15" (38 cm.)
• 700-1400 watt
• 8 ohm,
• sensitivity 97 dB,
• freq. range 40-2000 Hz,
• voice coil daimeter 100 mm (4 inch).

Nominal diameter

380 mm (15.0 in)

Nominal impedance

8 Ω

Minimum impedance

6.4 Ω

Nominal power handling

700 W

Continuous power handling

1400 W

Sensitivity (1W/1m)

97.0 dB

Frequency range

40 - 2000 Hz

Voice coil diameter

100 mm (4.0 in)

Winding material

Copper

Former material

Glass Fibre

Winding depth

21 mm (0.83 in)

Magnetic gap depth

9 mm (0.35 in)

Flux density

1.15 T
