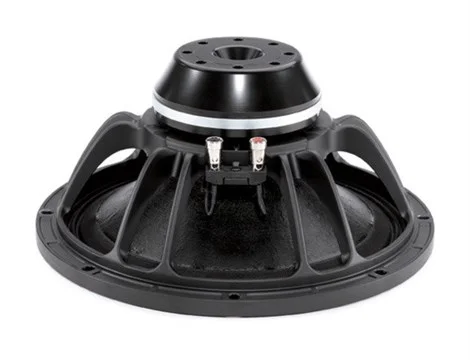

B&C 12-NW 76 12" Neo Woofer 500/1000W, 40-2000 Hz

• 1000 W continuous program power capacity
• 76 mm (3 in) copper voice coil
• 40 - 2000 Hz response
• 98.5 dB sensitivity
• Neodymium ring magnet assembly
• Aluminium demodulating ring allows a very low distortion figure
• Ventilated voice coil gap for reduced power compression

Nominal diameter

320 mm (12.0 in)

Nominal impedance

8 Ω

Minimum impedance

6.9 Ω

Nominal power handling *

500 W

Continuous power handling *

1000 W

Sensitivity (1W/1m) *

99.0 dB

Frequency range

40 - 2000 Hz

Voice coil diameter

76 mm (3.0 in)

Winding material

Copper

Former material

Glass Fibre

Winding depth

19 mm (0.75 in)

Magnetic gap depth

11 mm (0.43 in)

Flux density

1.3 T
