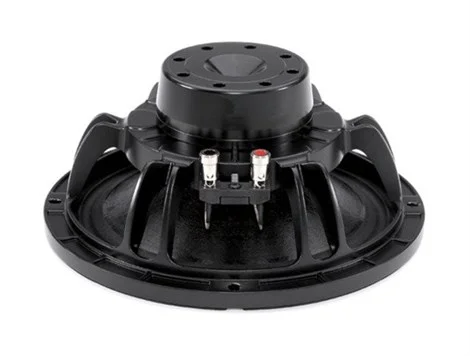

B&C 10-NDL 64 10" Neo Mid-Bass 250/500W, 50-3000 Hz

• 500 W continuous program power capacity
• 64 mm (2.5 in) aluminium voice coil
• 50 - 3000 Hz response
• 97 dB sensitivity
• Neodymium magnet allows a very light yet powerful motor assembly
• Ventilated voice coil gap for reduced power compression

Nominal diameter     250 mm (10.0 in)
Nominal impedance     8 Ω
Minimum impedance     7.0 Ω
Nominal power handling      250 W
Continuous power handling      500 W
Sensitivity (1W/1m)     97.0 dB
Frequency range     50 - 3000 Hz
Voice coil diameter      64 mm (2.5 in)
Winding material      Aluminium
Former material      Glass Fibre
Winding depth      14 mm (0.55 in)
Magnetic gap depth       8 mm (0.31 in)
Flux density      1.25 T
