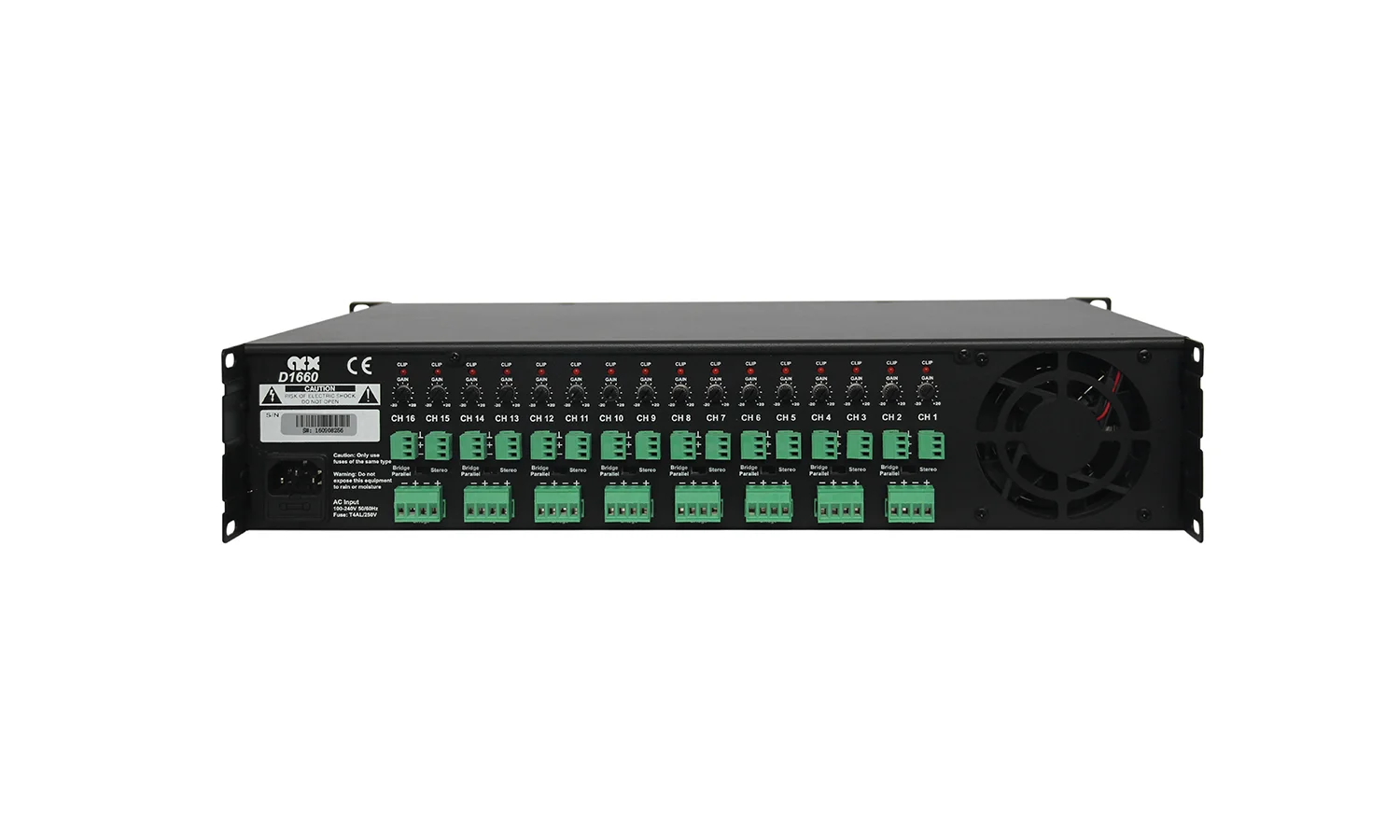

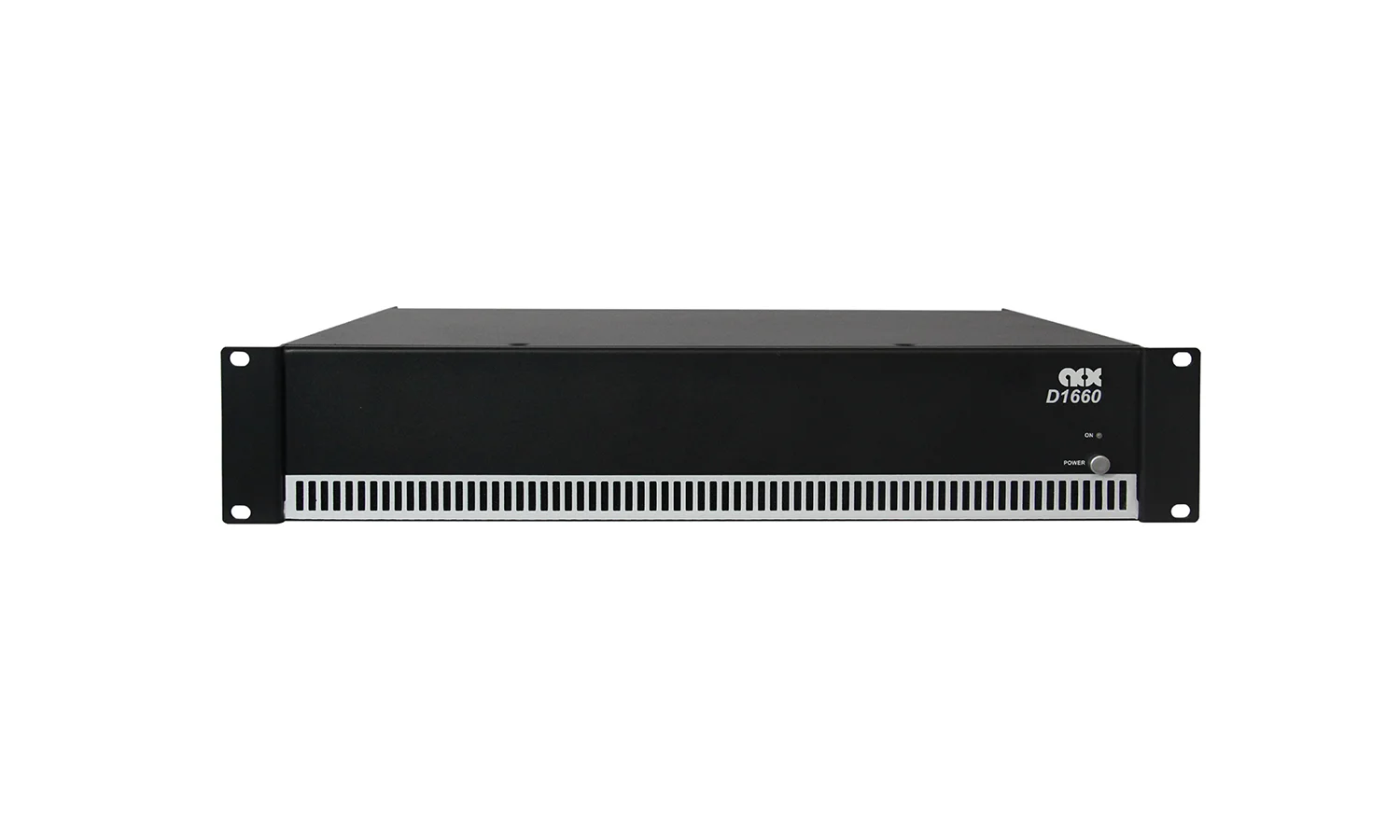

ACX Audio D1660 16x60W/4-ohm, 16-kanal Power Amplifikatör

ACX D8500 / D8120 / D1660

• Channel
  number: 8 analog input, 8 speaker output, 16 analog input, 16 speaker
  output


• Input
  Port: Phoenix


• Output
  Port: Phoenix


• Output
  power(1% THD+N, 1kHz @ 4Ω): 500Wx8 120Wx8 60Wx16


• Output
  power(1% THD+N, 1kHz @ 8Ω): 250Wx8 60Wx8 30Wx16


• Total
  system efficiency(2 x 250W@ 8Ω): 89%, 88%, 88%


• Peak
  Output Current: 30A, 9.2A, 9.2A


• THD+N
  (1kHz @ 1W): 0.003%, 0.1% , 0.1%


• Dynamic
  range: 120dB(A),110dB(A) , 110dB(A)


• Idle
  Noise: 40μV(A) , 100μV(A),100μV(A)


• Output
  impedance (1kHz): 14 mΩ, 200 mΩ , 200 mΩ


• Main
  input voltage: 90VAC – 240VAC


• Power
  Supply: PowerCON*1, IEC, IEC


• Standby
  consumption: 0.6W, /,/


• Dimension:
  483x175x88mm, 483x325x88mm, 483x325x88mm


• Weight:
  7.1kg, 8.5kg, 8.6kg
